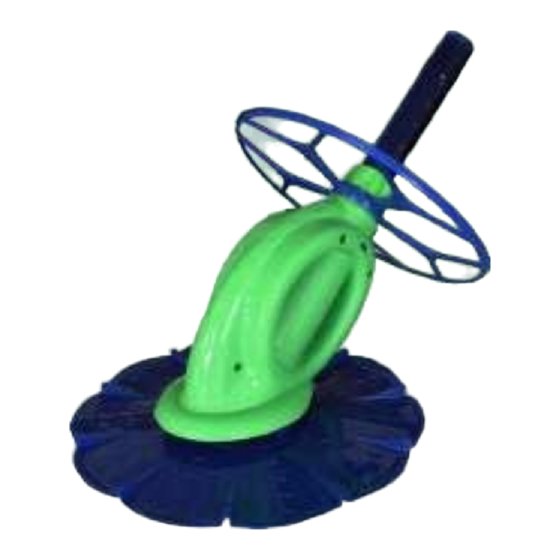

AUTOMATIC POOL CLEANER OPERATING MANUAL.
CC3272
Model
Cleans pool
Minimum Horse
Combo. min.
Pool - Type
Min. Operating
floor
Power Pump
Filter/Pump
Flow Rate
CC3272
Yes
0.25Hp
CC2013
Above/In -
>4m³/H
Ground
Fast Start-up, Safely Operate and
Efficiently Clean!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC3272 and is the answer not in the manual?

Questions and answers

Summary of Contents for CRYSTALCLEAR CC3272

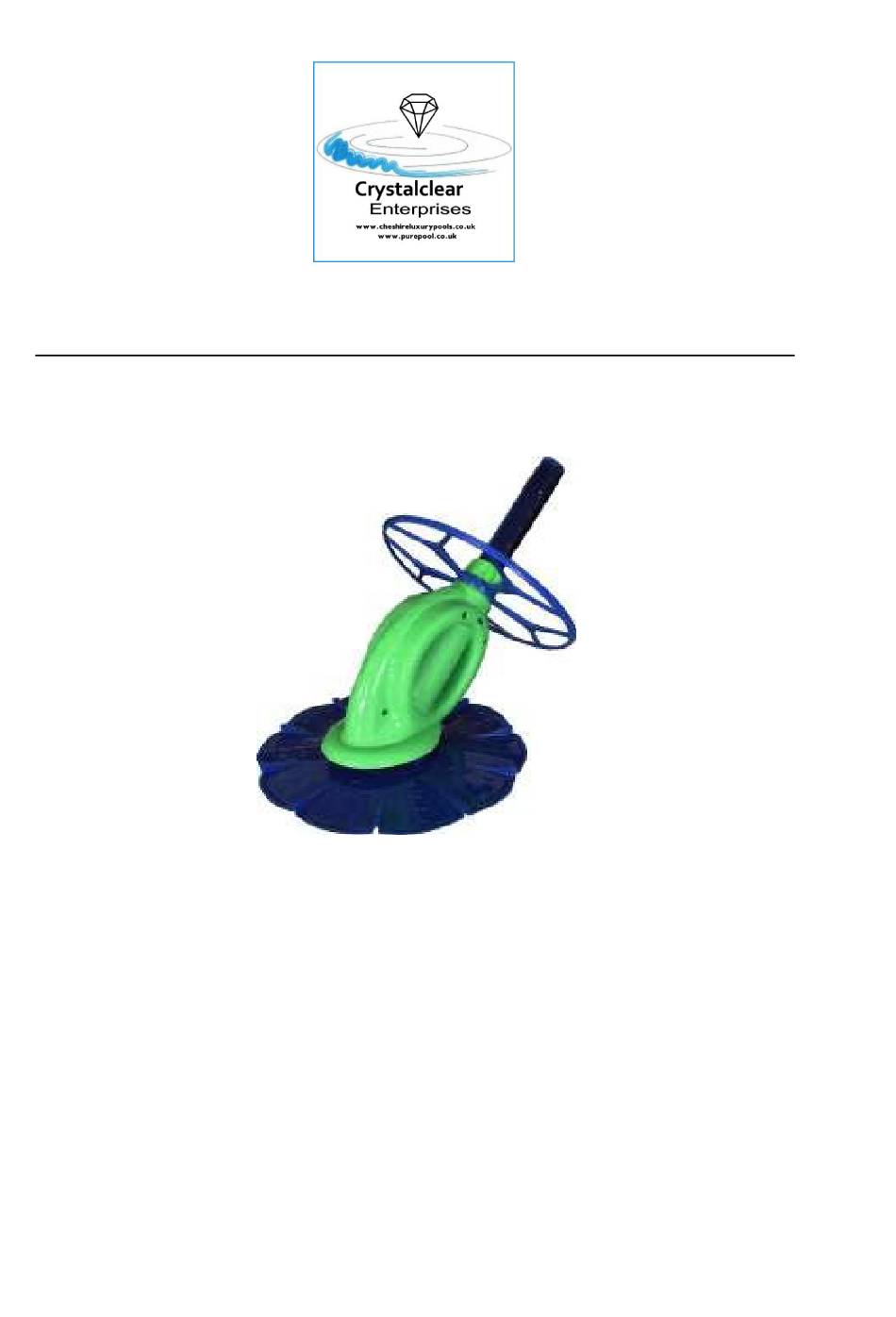

  • Page 1 AUTOMATIC POOL CLEANER OPERATING MANUAL. CC3272 Model Cleans pool Minimum Horse Combo. min. Pool - Type Min. Operating floor Power Pump Filter/Pump Flow Rate CC3272 0.25Hp CC2013 Above/In - >4m³/H Ground Fast Start-up, Safely Operate and Efficiently Clean!

  • Page 2: Safety Instructions

    WARNING SAFETY INSTRUCTIONS Read Prior to Use SUCTION HAZARD - When using the pool cleaner, keep it away from body parts when the cleaner is connected to suction. CHILD DROWNING RISK - Adult use only. Never allow children to use the pool cleaner.
  • Page 3 ASSEMBLING & INSTALLING YOUR POOL CLEANER STEP1: CHECK CONTENTS Remove the cleaner body and all parts from the box and check the following components are included. Refer to Figure 1. Quantity of Description components Cleaner complete with Footpad Disc Hose lengths* Deflector Wheel Hose Weight Flow Control Valve...
  • Page 4 STEP3 USE OF THE DEFLECTOR WHEEL Use the Deflector Wheel if your pool has tight corners and/or a ladder. The Deflector Wheel helps guide your pool cleaner around these obstacles. To fit the Deflector Wheel, simply push it over the Hand nut until it has engaged correctly and rotates freely See Fig 3.
  • Page 5 STEP 5: CONNECTING & USING THE FLOW CONTROL VALVE The Flow Control Valve ensures your pool cleaner receives the flow required to ensure optimum performance. •Make sure the pool pump is turned OFF. Figure 7 •Expel all the air from the hose. •Attach Flow Control Valve to the male hose Attach Male Hose (smaller end).

  • Page 6: Troubleshooting

    TROUBLESHOOTING Due to the individual characteristics of your pool, some adjustment may be required to get the best possible performance from your pool cleaner. The following tips will help you to optimize the performance of your cleaner. Problem Solution Pool cleaner does not move, or moves slowly. •Make sure the main drain is closed.

  • Page 7: Replacing The Diaphragm

    REPLACING THE DIAPHRAGM The diaphragm of your pool cleaner operates at the rate of approximately 360 beats per minute. If your pool cleaner operates daily for 8 hours, the diaphragm will open and close over60 million times in a year! The design has been perfected over many years and, properly cared for; the diaphragm will last for several seasons.
  • Page 8 4. Push the INNER EXTENSION PIPE away from you, so the tabs go through the holes in the IEP LOCATOR. Grasp the other end of the DIAPHRAGM (the end furthest away from the INNER EXTENSION PIPE) and pull it away from the pool cleaner BODY. The DIAPHRAGM will fall clear of the BODY.
  • Page 9 To install a new diaphragm, simply reverse the process: Push the DIAPHRAGM onto the INNER Fit the RETAINING RING onto the new DIAPHRAGM. EXTENSION PIPE. Make sure it is correctly located and fully engaged Pull the INNER EXTENSION PIPE up Gentle turn the INNER EXTENSION PIPE so through the BODY, positioning the tabs so the tabs are aligned with the recesses in the...

  • Page 10: Parts Diagram

    PARTS DIAGRAM ITEM NO. DESCRIPTION Main Body Outer Extension Pipe Hand nut Inner Extension Pipe Thrust Washer Deflector Wheel Footpad Disc IEP Locator Retaining Ring Diaphragm...
