High speed up / down counter
Hide thumbs
Table of Contents

Advertisement

Quick Links

94x48 mm dimensions
600 KHz reading speed
6 digit display
Functional External Z input
Functional HOLD input
Quadrature mode up – down counting
2 or 4 couple contact relay output
Set-1 can be set related with Set 2
Optional factor value (between 0,00001 and 999999)
Optional decimal point between 1. and 5. digits
5 VDC or 12 VDC encoder power supply
11 various output control mode
OFFSET value is adjustable
Password Protection
Housing
Dimensions
Display
Display Range
Weight
Box
Relative Humidity
Operating Temperature
Storage Temperature
Protection Class
Electrical Characteristics
Power Supply
Power Consumption
Connections
Inputs
Counting Frequency
Input Channels
Z (Reset Input)
HOLD Input
Polarity Input
Outputs
Control Ouutput
Sensor Supply Output
Digital Out
WARNINGS
1. Fallow the instructions and read the manuel before conection and using the device.
2. Check the power supply type before giving energy.
3. Mount the device to the panel robustly againts to the drops, vibration and shakings during utilization.
4. Make the sensor connections while the energy off. Never change the connections while the energy is on.
5. Keep Away from the high voltage.
6. Don't expose to the sunbeams and heating source directly in the utilization place.
7. ALC94 Industrial Control Device proper only for room conditions, don't use outer environment.
8. Clean the device only with a moist duster, never use water, thinner ect...
9. Adapt the relays to the given technical relay output values.
10. There is no part for replacing or repairing, please call the service in case a defect.

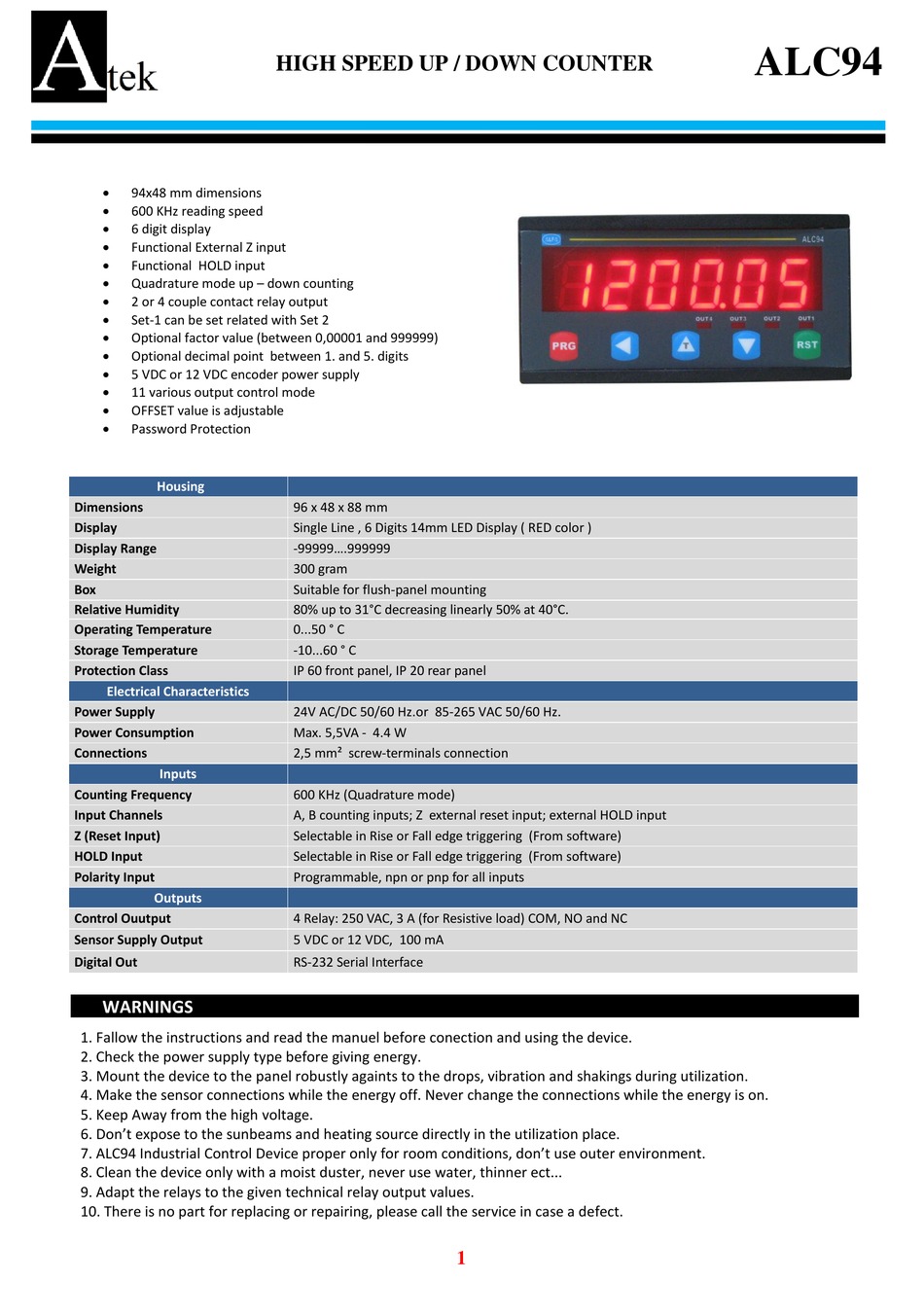

HIGH SPEED UP / DOWN COUNTER
96 x 48 x 88 mm
Single Line , 6 Digits 14mm LED Display ( RED color )
-99999....999999
300 gram
Suitable for flush-panel mounting
80% up to 31°C decreasing linearly 50% at 40°C.
0...50 ° C
-10...60 ° C
IP 60 front panel, IP 20 rear panel
24V AC/DC 50/60 Hz.or 85-265 VAC 50/60 Hz.
Max. 5,5VA - 4.4 W
2,5 mm² screw-terminals connection
600 KHz (Quadrature mode)
A, B counting inputs; Z external reset input; external HOLD input
Selectable in Rise or Fall edge triggering (From software)
Selectable in Rise or Fall edge triggering (From software)
Programmable, npn or pnp for all inputs
4 Relay: 250 VAC, 3 A (for Resistive load) COM, NO and NC
5 VDC or 12 VDC, 100 mA
RS-232 Serial Interface
1
