Summary of Contents for Framon KX-1

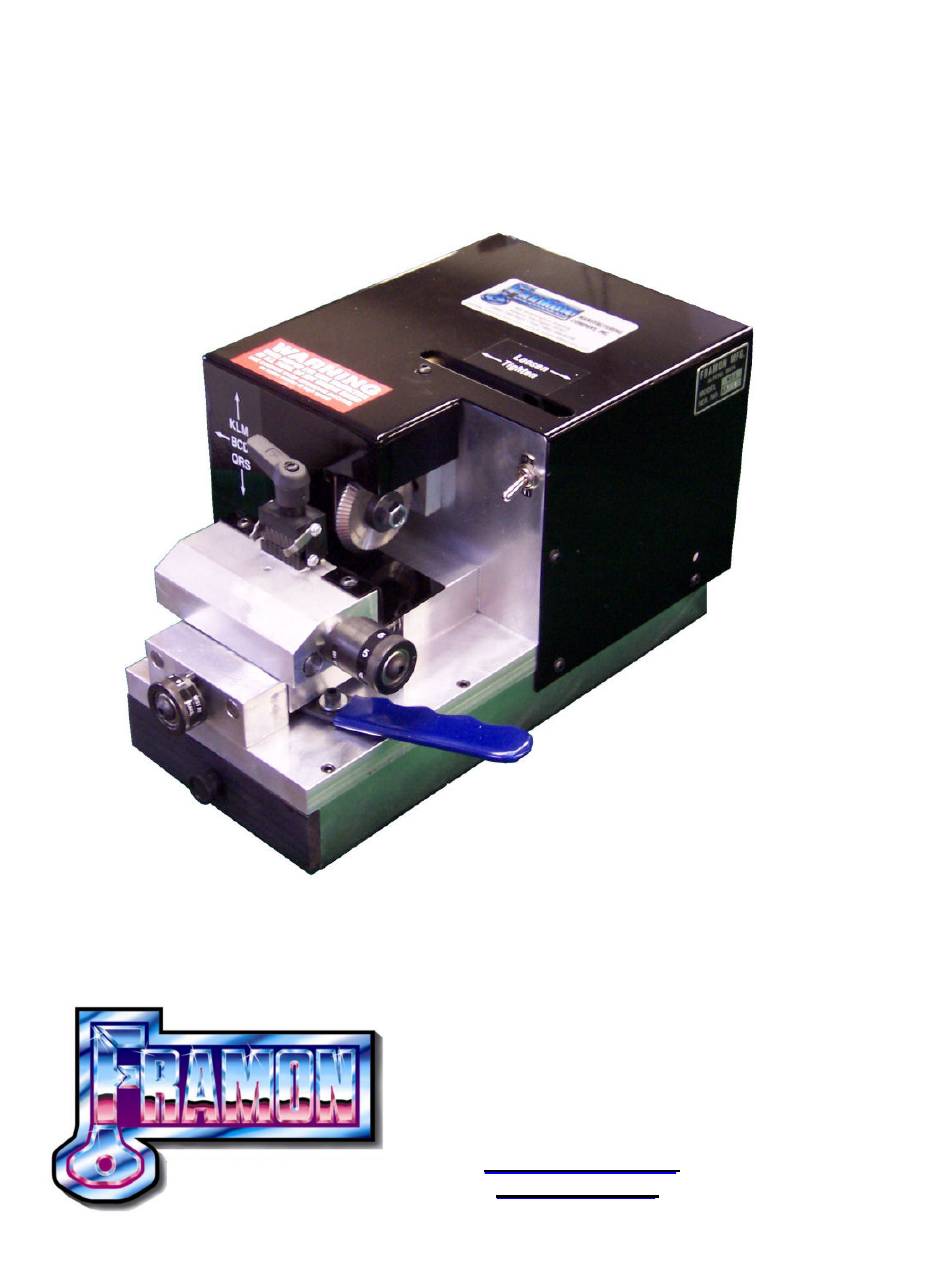

- Page 1 KX-1 Instruction & Parts Manual Manufacturing Company, Inc. 909 W Washington Avenue Alpena, MI 49707 Phone: 989-354-5623 Fax: 989-354-4238 E-mail: support@framon.com support@framon.com Website: www.framon.com www.framon.com...

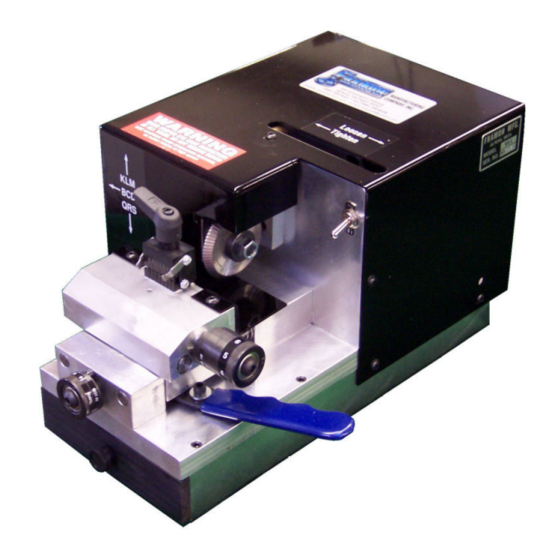

- Page 2 The Framon KX-1 is designed to quickly and accurately code cut many different types of cylinder keys. Switching from one manufacturer to the next is as simple as changing the depth and space cams, as well as changing cutters and vises when necessary.
- Page 3 DEPTH ADJUSTMENT To adjust the depth on the KX-1, make a cut on a key and measure the depth with calipers. You will have to remove the chip guard attached to the carriage by removing two 1/8” Allen screws. The adjustment for depth is located behind the carriage, in between the slide rods.
- Page 4 SPACING ADJUSTMENT To adjust the spacing on the KX-1, insert an original key into the vise. Turn the spacing cam to the first position and set the depth cam to the proper depth of the first cut on the original key. Use the feed handle to move the key into the cutter and determine if the carriage needs to be moved to the left or the right.
- Page 5 WARRANTY The KX-1, like all other Framon key machines, comes with a one-year, parts, labor and freight warranty. If you have any problem with your KX-1 within the first year, contact Framon Manufacturing at (989) 354-5623. We will issue a call tag for the machine, repair or replace the machine, and return it to you without any charge.
- Page 6 Instructions For Cutting Southern Steel 13 Cut Keys After reading your instruction manual for your KX-1 machine, there are a few differences in the operation of the machine for 13 cut keys. The depth cam shown below operates in the same way that the manual shows. Simply turn the cam to the desired depth and feed the key into the cutter.
- Page 7 RR Brink and Folger Adam Users Along with this manual, you should also have received a single or two-page addendum regarding specifics for your detention keys. We do not publish this information in this manual due to the sensitive depth and space information included with it. If you lose the addendum, you will need to contact us at 989-354-5623 with the serial number of your machine to receive it.
