Teknion interpret WWSSC Installation Manuals

Complete frame and wire gap worksurface - single sided

Advertisement

Quick Links

interpret
Installation Guides
Section:
FRAMES, SUPPORTS AND WORKSURFACES
Description:
COMPLETE FRAME AND WIRE GAP WORKSURFACE - SINGLE SIDED
Single - Sided Complete Frame (WWSSC),
Wire Gap Worksurface (WWWRW)
Wire Gap Worksurface
( WWWRW) x1
G
F
H
A
C1
Leveler Cover is
located inside Leg,
assembled and
secured in place
with tape.
E
J
M
I
Angled Leg Frame shown

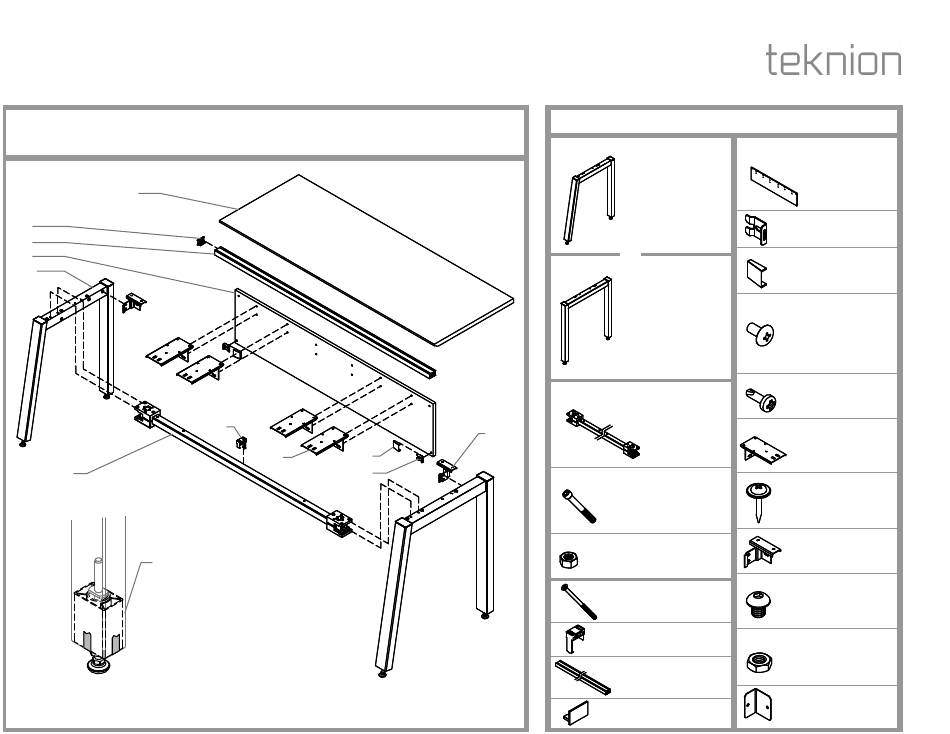

Part and Product Identification
A- End Leg, Angle
Single Sided
(N02-3700) x1
Left & 1 Right
OR
B- End Leg, Straight
Single Sided
(N02-3698) x1
Left & 1 Right
C1- Transverse Beam
Assembly
(N02-3688) x1
O
C2- 5/16-18x2.5 Socket Head
Cap Screw
(E01-0756) x8
C3- 5/16-18 Hex Nut 1/2 A/F
.265 Thick
(E01-0755) x8
D- 1/4-20x3-1/2 Flat Head
Machine Quad
(E01-0771) x2
E- Front Standoff
(B02-0658) xqty varies
F- Return Center Rail
Assembly
(N02-2150) x1
G- Return Center Rail Cap
(N02-2151) x2
Date:
Aug 2017
Page No:
1 of 12
INT_009
Rev. No: 4
H- Modesty, Single Sided
(C05-7238) x1
I- Infill Bottom Bracket
(A16-0947) x2
J- Infill Bottom Bracket
Cover
(A25-0389) x2
K- 1/4-20 UNC x0.500"
2A, Cross Square
Socket, Truss Head,
Machine Steel, Zinc
(E01-0110) x8
or x12
L- #8118x1/2 Cross
Square Comb, Self
(E07-0012) x2
M- Worksurface Support
Bracket
(N09-4134) x2
or x4
N- #10x0.875 Quad Pan
Washer
(E07-0077) x 6
or x12
O- Gable Corner Bracket
L/R
(X05-0273) x2
P- 5/16-18x3/8 Button
Head, Hex Socket
(E01-0798) x6
or x10
Q- 5/16-18 x 3/8 Hex Nut
1/2A/F .190 Thick
(E03-0551) x6
or x8
R- Interpret Drilling
Template
(A16-1623) x1
