Off time frost protection
Floor high temperature protection
Main Functions
Time display
Holiday function
Sensor selection
Hold function

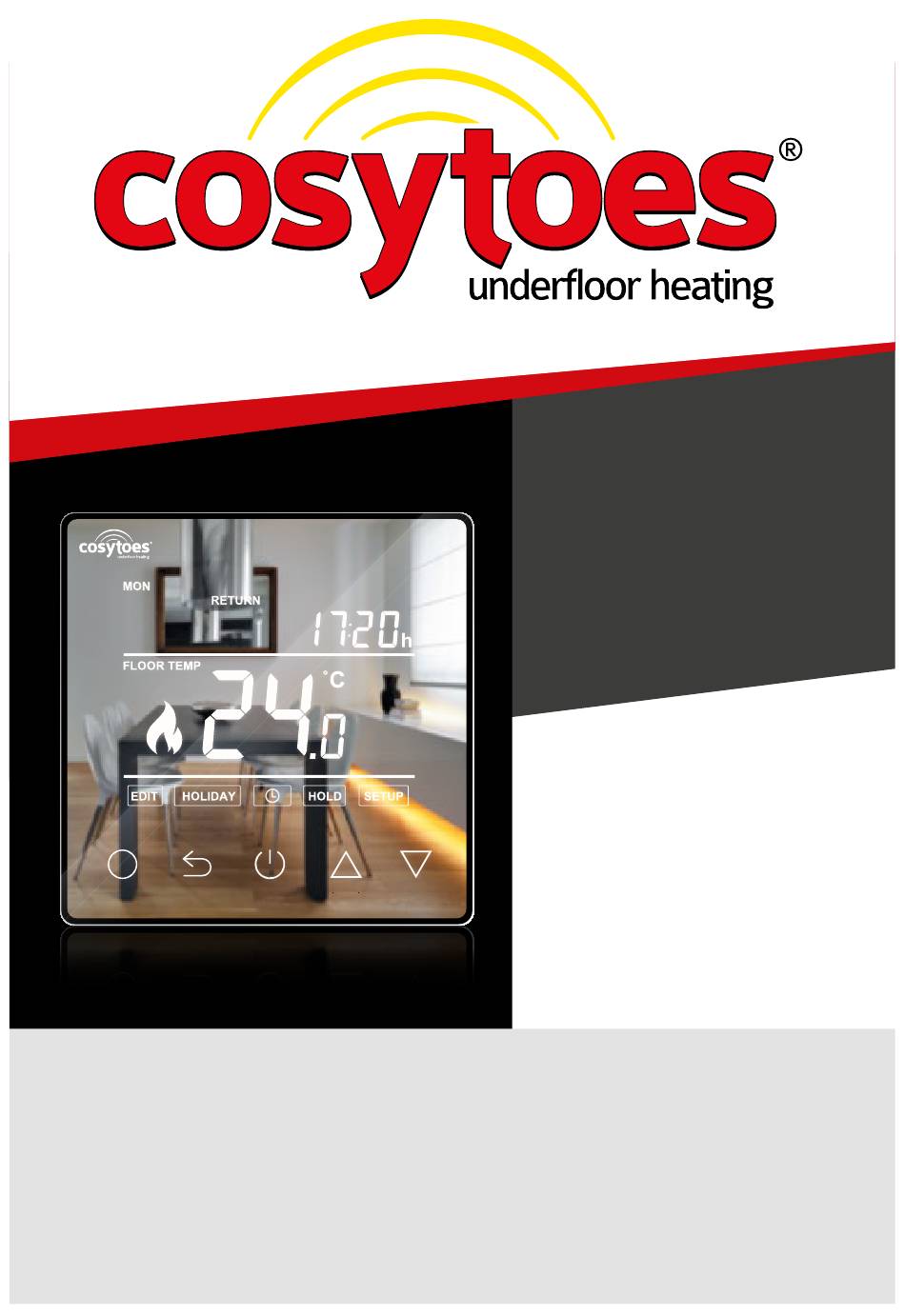

Mirage
Timerstat
Instruction
Manual
Introduction

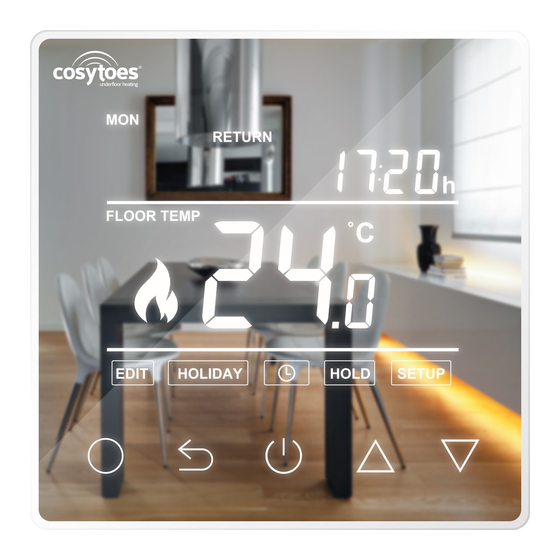

The Mirage is a smart
Timerstat used to control
your electric underfloor
heating system. It will keep
your floor at a comfortable
temperature whilst
minimising energy use.
Technical Specification
Supply voltage: 85-265V 50/60Hz
Maximum switching current: 15A
Standby power: < 1W
IP rating: IP21
Wire diameter ≤2.5mm
Suitable for up to 22sqm of Cosytoes
heating mat.
2
Advertisement
Table of Contents
Summary of Contents for Cosytoes Mirage Timerstat
- Page 1 Supply voltage: 85-265V 50/60Hz Holiday function Maximum switching current: 15A Off time frost protection Standby power: < 1W Floor high temperature protection IP rating: IP21 Sensor selection Wire diameter ≤2.5mm Key-lock Suitable for up to 22sqm of Cosytoes Hold function heating mat.
- Page 2 Functions and User Operation On/Off Holiday mode Press POWER to turn on/off In holiday mode, the Mirage will Note: When frost protection mode is maintain the frost protection active, the timerstat will maintain the temperature until the holiday period frost protection temperature when in ends.
- Page 3 Timer setting Press to enter start time set. Each day of the week has 4 Press or to select the start time hour. time periods, you should allot a Press to enter minute set. temperature to each time period. Set Press ...
- Page 4 Dimensions Advanced Settings Note: These are normally set by the installer. In ‘on’ mode, press to enter setting. Press or to select setup. Press to enter advanced setting. Each parameter can be accessed by pressing and then adjust the values as required.
- Page 5 Name Default Ranges Output delay 00: 0s 01: 30s 02: 60s 03: 90s Differential temp 1°C 00: 0.5°C setting 01: 1°C 02: 2°C 03: 3°C Reverse output OFF/ON Program Options 5+1+1 00: 7 Day Individually 01: 5 Day Together + Sat +Sun Adaptive Function 00: OFF...
- Page 6 Temperature unit: Programming Options : °F and °C can be there selected. are two Modes for you to choose, Output delay: The time period 5+1+1, (5 days together +Sat +Sun) between heating on and off and 7 days (where each day can be due to temperature change.
- Page 7 Installation Instructions Note: The Mirage timerstat should be mounted using a 86x86x35mm deep wall box. 1. We recommend that the timerstat is not opened until the wiring has been connected as shown in the wiring diagram above. 2. Loosen fixing screw on the base of the timerstat and separate the front from the back.
- Page 8 4. Our products are simple to install, extremely tough, resilient and truly exceptional quality. Help and Assistance: Should you need any assistance, please contact us on 0113 2577 588, or email cs@cosytoes.co Sales Tel: 0113 2577 588 | Fax: 0113 236 2300 Address: Bramley House, Bath Lane, Bramley, Leeds, LS13 3BB.
