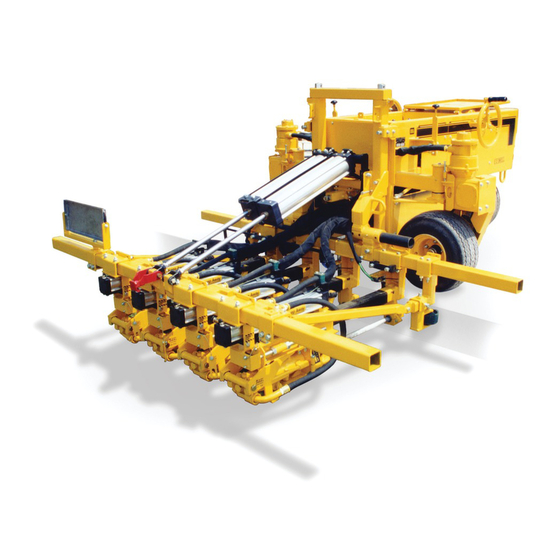

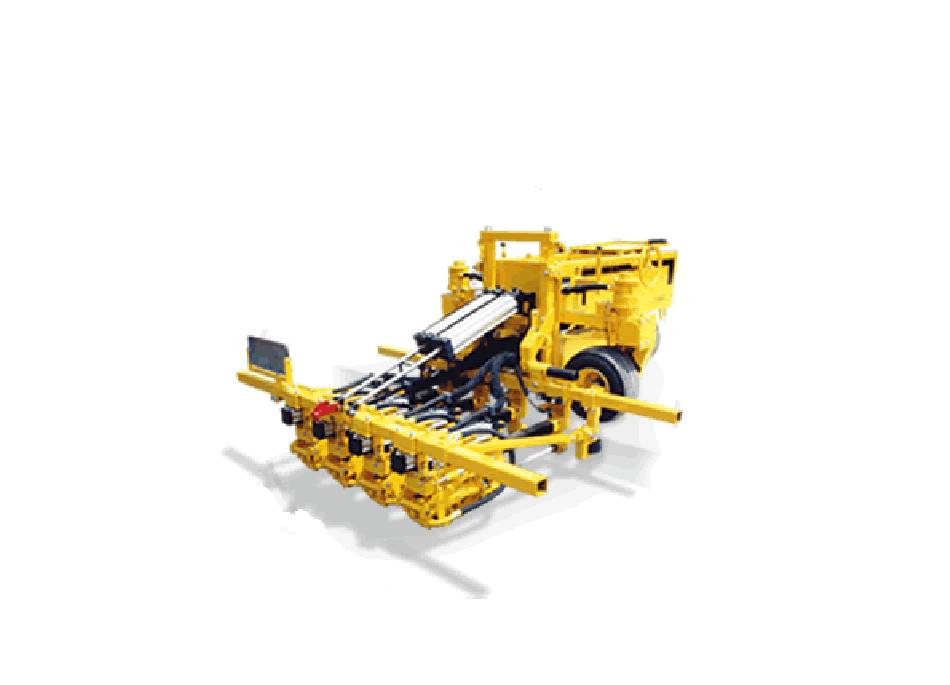

SETTING UP THE
MODEL 210-3, -4 , and -5 SRA

Advertisement

loading
Need help?

Need help?

Do you have a question about the 210-3 SRA and is the answer not in the manual?

Questions and answers

Related Manuals for E-Z DRILL 210-3 SRA

Summary of Contents for E-Z DRILL 210-3 SRA

  • Page 1 SETTING UP THE MODEL 210-3, -4 , and -5 SRA...
  • Page 2 SAFETY PRECAUTIONS FOR THE MODEL 210-3, -4, -5 SRA System Under Pressure: Shut off air supply and disconnect air hose before disassembling or disconnecting parts. Flying Debris: During boring, chips may be ejected. Stay behind control panel and wear safety glasses to prevent eye injury. Pinch Points: Keep hand clear of carriage assembly.
  • Page 3 SAFETY PRECAUTIONS FOR THE MODEL 210-3, -4, -5 SRA (continued) Loud Noise: Wear ear protection to prevent eardrum damage from air compressor. Dust: Wear a dust protection mask to protect from concrete dust. High Pressure: High pressure from the air compressor can damage the drill, and can void the warranty.
  • Page 4 SET UP FOR THE MODEL 210-3, -4, -5 SRA • Always keep the lever on the drill motor shown at right in line with the drill motor. • If the lever is in the position shown at right, the air will be shut off from the drill motor and will not run.
  • Page 5 1) ATTACHING THE HOSE THE DRILL UNIT • Check the specifications to make sure the correct hose size is being used: 210-3 SRA 11/2” – 2” ID hose 210-4 SRA 2” ID hose 210-5 SRA 2” ID hose • Make sure all safety precautions are followed with the hose and all hose connections.
  • Page 6 ATTACHING THE AIR HOSE TO THE E-Z DRILL UNIT • Before attaching the air hose to the drill, turn the air compressor on and blow air through the hose to clean out any debris that may have accumulated inside the hose.
  • Page 7 ATTACHING THE AIR HOSE TO THE E-Z DRILL UNIT • The E-Z Drill unit has a 1 ½” female pipe thread on which the proper hose fitting will need to be installed. • Connect the hose fittings, and install safety pin.
  • Page 8 ATTACHING THE AIR HOSE TO THE E-Z DRILL UNIT • It is recommended that a “whip check” be installed as a safety measure.
  • Page 9 However, a 7/8” x 4 ¼” chuck and 1” x 4 ¼” chuck are available on request. • All 210 series E-Z Drill models use 6” of the usable length of the bit (i.e. a 24” bit will drill up to 18” deep; an 18”...
  • Page 10 INSTALLING THE DRILL BITS • IMPORTANT: You must have the correct bit guide bushing to match the bit you will be using: For drilling a: 5/8” diameter hole, use 1108 MCP 3/4” diameter hole, use 1109 MCP 7/8” diameter hole, use 1110 MCP 1”...
  • Page 11 INSTALLING THE DRILL BITS • To install a drill bit, loosen the swivel bolt until you can swing it out away from the lower bit guide. • NOTE: You can use the wrenches provided; they are located next the oil reservoir.
  • Page 12 INSTALLING THE DRILL BITS • Open the retainer latch on the drill motor. • Pinch point...
  • Page 13 INSTALLING THE DRILL BITS • Place the bit into the chuck and close the latch. • Pinch point...
  • Page 14 INSTALLING THE DRILL BITS • You may have to adjust the return stop rod so that the end of the bits clears the bit guide.
  • Page 15 INSTALLING THE DRILL BITS • To adjust the stop rods, use the wrenches provided to loosen the stop rod nuts. Move the stop rod in the direction needed to the required location and re-tighten the nuts.
  • Page 16 INSTALLING THE DRILL BITS • If you are using 2-piece H-thread bits, you may also have to adjust the guide plates (on the 210-3 SRA) or the guide wheels (on the 210-4 SRA and 210-5 SRA).
  • Page 17 INSTALLING THE DRILL BITS • Place the proper bushing into the bit guide; one half in the upper bit guide and one half in the lower bit guide. Close bit guide, swing the swivel bolt back onto the bit guide, and tighten.
  • Page 18 ADJUSTING THE DRILL SPACING • IMPORTANT: Regardless of the spacing, always keep the drill systems centered with the mainframe so that the entire unit remains balanced. • NOTE: You can adjust the spacing with the drill systems in the horizontal or vertical position.
  • Page 19 ADJUSTING THE DRILL SPACING • To slide a drill system one way or the other to reach the required drill spacing, you must first loosen the 5” frame clamps on each end of the feed bar. Loosen all four ½” lock nuts on each frame clamp until you can slide the feed bar.
  • Page 20 ADJUSTING THE DRILL SPACING • To get the proper spacing, measure from one side of the feed bar to the same place on the adjacent feed bar.
  • Page 21 ADJUSTING THE DRILL SPACING • Be sure to measure from both ends of the feed bar to insure the drill systems are parallel to each other. • After moving the proper distance, re-tighten all on the frame clamps. • Heavy load...
  • Page 22 ADJUSTING THE HEIGHT OF THE DRILL SYSTEMS • Adjusting the height of the drill systems is done by turning the mast screw jack assembly located at the top of the mast. Before turning the screw jack, you must first loosen the two ½” x 4” bolts and the two ½”...
  • Page 23 ADJUSTING THE HEIGHT OF THE DRILL SYSTEMS • Use a 1 3/8” wrench (preferably a socket wrench) to turn either of the nuts at the top of the mast (the two screw jacks are connected with a chain, so it does not matter which one you use to make the adjustment).
  • Page 24 LEVELING THE DRILL SYSTEMS IMPORTANT: BEFORE LEVELING THE DRILL SYSTEMS, CONFIRM THE ANGLE REQUIRED. MANY TIMES THE DRILL SYSTEMS ARE NOT TO BE “LEVEL WITH THE WORLD”, BUT SHOULD BE SET TO DRILL PARALLEL WITH THE TOP OF THE CONCRETE SLAB INTO WHICH YOU ARE DRILLING.
  • Page 25 LEVELING THE DRILL SYSTEMS • First loosen the two ½” bolts on the Auto Align Outside Slide.
  • Page 26 LEVELING THE DRILL SYSTEMS • Then turn the nut on the Auto Align Screw Jack Assembly until you reach the desired angle. • Then re-tighten the two ½” bolts...
  • Page 27 LEVELING THE DRILL SYSTEMS • Placing a 4’ level across the tool bars, then placing it on the concrete slab will show if the drills are going to drill parallel to the top of the concrete slab.
  • Page 28 LEVELING THE DRILL SYSTEMS NOTE: THIS ADJUSTMENT WILL BE REQUIRED ANYTIME YOU HAVE BEEN DRILLING HORIZONTAL HOLES, AND NOW WANT TO DRILL STRAIGHT VERTICAL HOLES, OR VICE VERSA.
  • Page 29 SETTING THE DRILL DEPTH USING THE AUTOMATIC SHUT OFFS • To adjust the automatic shutoff valves to the shut the drills off at the desired depth, make sure all other adjustments have been made and the air supply is connected to the drill. Maneuver the drill to the edge of the concrete slab (first see Operating Instructions on driving and...
  • Page 30 SETTING THE DRILL DEPTH USING THE AUTOMATIC SHUT OFFS • Unlock the red safety latch on the Raise & Lower Cylinders, and all of the individual carriage locks. • Pinch Points: Keep hand clear of carriage assembly and Raise & Lower Cylinder.
  • Page 31 SETTING THE DRILL DEPTH USING THE AUTOMATIC SHUT OFFS • Place the “Raise & Lower” valve into the “lower” position. The drill systems will now lower into the horizontal position. • Activating this control will cause the drill system lower down to the horizontal position.
  • Page 32 SETTING THE DRILL DEPTH USING THE AUTOMATIC SHUT OFFS • Place the “auto-align” switch to the “down” position. • If the guide plates or guide wheels are not touching the surface of the concrete, place the Auto-Align switch to “up” position and maneuver the drill until they do.
  • Page 33 SETTING THE DRILL DEPTH USING THE AUTOMATIC SHUT OFFS • Place the feed lever into the “in” position. All of the drills will move forward until the bits contact the concrete slab.
  • Page 34 SETTING THE DRILL DEPTH USING THE AUTOMATIC SHUT OFFS • Measure the distance from the head of the stop rod to the rubber stop pad. If this is not the required drill distance, use the wrenches provided to loosen the stop rod nuts.
  • Page 35 SETTING THE DRILL DEPTH USING THE AUTOMATIC SHUT OFFS • After loosening the stop rod nuts, move the stop closer or farther away from the stop pad in order to get it the correct distance. Then re-tighten the nuts. • Repeat for each drill system.
  • Page 36 ADJUSTING THE HOLE SPACING GUIDE • Loosen the bolts on the hole spacing guide bracket and slide the hole spacing guide to where the distance from the red point to the center of the bit is the required spacing distance.
  • Page 37 INSTALLING THE TOW BAR PACKAGE • Attach the Hitch Support to the main frame by clamping it with the Frame Clamp onto the 3” square tube wheel frame support on the side at which you wish to tow the air compressor...
  • Page 38 INSTALLING THE TOW BAR PACKAGE • Depending on which kind of hitch is on your air compressor, bolt on the Compressor Mount and wheel assembly onto the air compressor hitch.
  • Page 39 INSTALLING THE TOW BAR PACKAGE • Using the Hitch Pin Long, pin the Hitch to the Compressor Mount.
  • Page 40 INSTALLING THE TOW BAR PACKAGE • Pin the Hitch with the Hitch Pin Short into the hole of the Hitch Support.
