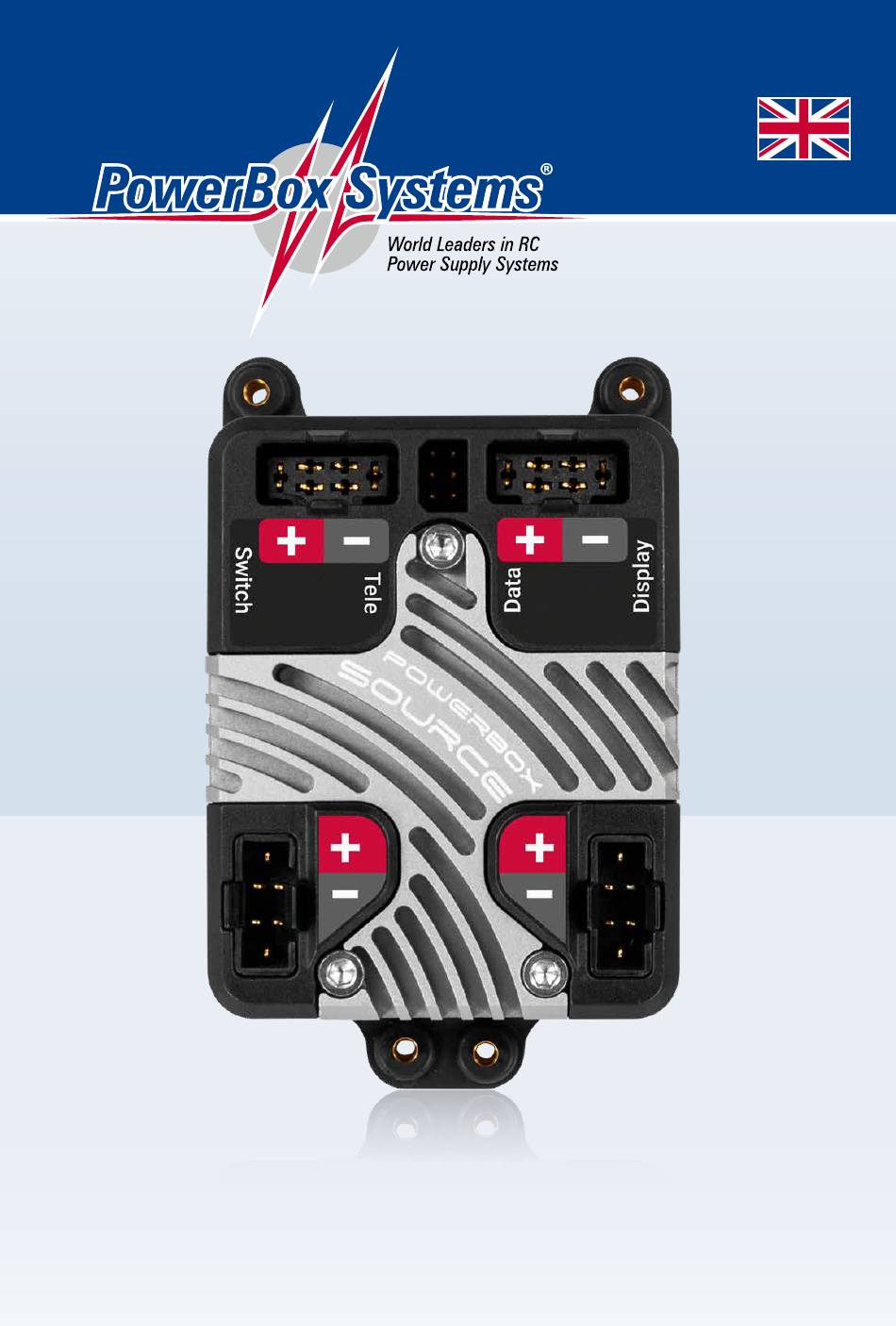

- Page 1 Instruction Manual PowErBox SourcE...
- Page 2 We have managed to reduce the backer’s size by optimi- sing the heat-sink design, and as a result the PowerBox Source is now also suitable for small models with high power requirements. This small energy package offers enormous performance reserves, and compares very well even with larger battery backer systems.
-
Page 3: Connections & Controls
Redundant regulator design Suppression of servo feedback currents Protection against electro-static discharge Integral regulator monitoring Can be updated using the USB Interface or BlueCom Adapter CONNECTIONS, CONTROLS Telemetrie socket USB/BlueCom socket Regulated output to receiver Display socket Switch socket Battery inputs www.powerbox-systems.com... - Page 4 - PowerBox CORE By default the PowerBox Source is set up for the P²BUS. Connect the Tele output on the Source to the receiver’s P²BUS socket. The PowerBox can now be set up from the transmitter, and the telemetry data can be transferred.
- Page 5 Connect the backer’s Tele output to the receiver’s S.BUS2 port. A teleconver- ter is not required. Select the “Load new” point in the Telemetry Sensor menu in order to empty all the telemetry fields. Set the “PowerBox sensor” to slot 16. - Multiplex M-Link Connect the backer’s Tele output to the receiver’s Tele port.
- Page 6 Download the free PowerBox Terminal program from our website, and in- stall it on your computer. Connect the USB Interface to the PC or laptop, and connect the Uni connector to the PowerBox Source’s Data input. Select PowerBox Source, and follow the on-screen instructions.
-
Page 7: Specification
0.3V Output voltage 5.9V / 7.4V / 7.8V / 8.4V Screen OLED 128 x 64 pixels (optional) Supported telemetry systems PowerBox, Jeti, Futaba, Graupner, Multiplex Dimensions 54 x 88 x 23 mm Weight 77 g Weight Sensor Switch 15 g Temperature range -30°C to +85°C... -
Page 8: Guarantee Conditions
At the same time it gives you the opportunity to obtain assistance all round the clock, and even at weekends. The answers come from the PowerBox team, which guarantees that the ans- wers are correct. -
Page 9: Liability Exclusion
We accept no liability for transit damage or loss of your shipment. If you wish to make a claim under guarantee, please send the device to the following address, SERVICE ADDRESS together with proof of purchase and a de- PowerBox-Systems GmbH scription of the defect: Ludwig-Auer-Straße 5 D-86609 Donauwoerth Germany... - Page 10 10/2019 PowerBox-Systems GmbH certified according to DIN EN ISO 9001 Ludwig-Auer-Straße 5 D-86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
