Summary of Contents for Rousseau 4004
- Page 1 Quality Power Tool Accessories OWNER’S MANUAL Batter Board System Models 4004 & 4008 IMPORTANT Read and understand all safety guidelines and instructions carefully before operating.

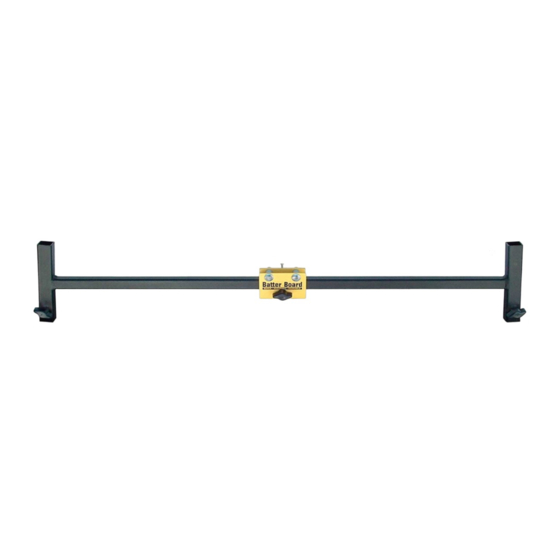

- Page 2 GENERAL INFORMATION You have purchased a ROUSSEAU CO. BATTER BOARD SYSTEM. This product is designed to make construction layouts, such as building foundations, quicker, easier and more economical. WARRANTY This product has a lifetime warranty to the original purchaser that applies to defects in materials and workmanship only.
- Page 3 ASSEMBLY Center pin Move washer Plate under plate to control bend Tighten nuts over center pin Add washer or sand off Slider assembly spacer to control clamping force Remove knob to assemble 1. Remove the locking knob from the slider assembly and place the slider assembly onto the batter board frame with all three locking knobs on the same side of the batter board.
- Page 4 INSTRUCTIONS FOR USE 1. Locate batter board on ground so slider will be close to center of frame. 2. Loosen locking knobs to prevent thread damage. 3. Drive ¾” forming stakes through vertical tubes. 4. Raise batter board to desired height and lock in place with locking knobs. 5.
