Printfold 2750 Operator's Manual

Synergix fold system 40 engineering document folder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

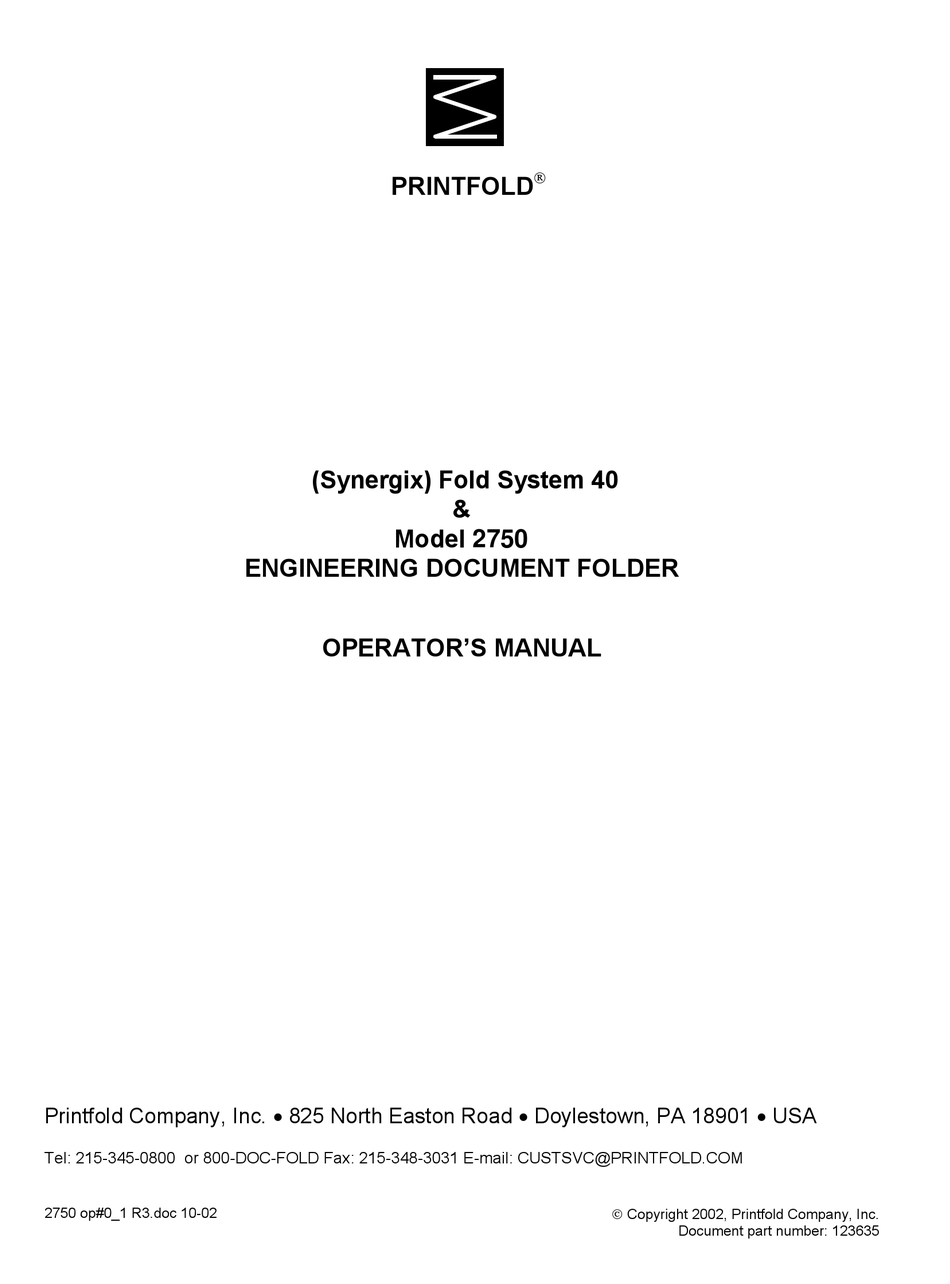

PRINTFOLD
(Synergix) Fold System 40
&
Model 2750
ENGINEERING DOCUMENT FOLDER
OPERATOR'S MANUAL
Printfold Company, Inc. • 825 North Easton Road • Doylestown, PA 18901 • USA
Tel: 215-345-0800 or 800-DOC-FOLD Fax: 215-348-3031 E-mail: CUSTSVC@PRINTFOLD.COM
2750 op#0_1 R3.doc 10-02
 Copyright 2002, Printfold Company, Inc.
Document part number: 123635

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2750 and is the answer not in the manual?

Questions and answers

Summary of Contents for Printfold 2750

  • Page 1 ENGINEERING DOCUMENT FOLDER OPERATOR’S MANUAL Printfold Company, Inc. • 825 North Easton Road • Doylestown, PA 18901 • USA Tel: 215-345-0800 or 800-DOC-FOLD Fax: 215-348-3031 E-mail: CUSTSVC@PRINTFOLD.COM 2750 op#0_1 R3.doc 10-02  Copyright 2002, Printfold Company, Inc. Document part number: 123635...
  • Page 2 Access to these danger points is prevented by a plastic panel at the rear of the accordion folder, which must not be removed by other than a qualified service technician. 2750 op#0_2 R3.doc 10-02  PRINTFOLD MODEL 2750 &...

  • Page 3: General Information

    General information There are four variants of the Printfold Model 2750 Folder, each accommodating a specific range of print speeds: XES Model 2753 XES Model 2755 XES Model 2757 Synergix Fold System 40 The Printfold 2750 Folder is self-programming, and fully automatic. It turns on automatically when a document exits the printer/copier, and turns off when the flow of prints ceases.
  • Page 4 Handfeed Pressing the Handfeed push- button switches the 2750 into hand-folding mode, displaying a modified list of programs. The print to be folded is fed into the...

  • Page 5: Main Control Panel

    Note: The folder assumes that all sheets have been removed from the receiver after the button is pressed. This action resets a software “print counter” used to determine when the receiver reaches a full condition. Page 1-3 2750 op#1 R3.doc 10-02...
  • Page 6 2750 op#1 R3.doc 10-02 Instant service access There is no need to set aside extra space for access to the printer.
  • Page 7 Upper surface of accordion folder Stack diverter in "stack" attitude Model 2750 in bypass mode, diverting all prints from the bridge to the stacking surface on top of the accordion folder 2750 op#1 R3.doc 10-02 Stack diverter in "fold" attitude...
  • Page 8 Note that the compensating panels may be aligned with either left or right edges of the packet, depending on the combination of the selected panel width (S) and the overall length of the document. They are 2750 op#1 R3.doc 10-02 Any length up to 20 panels...
  • Page 9 Type F bookfold packet The Type F bookfold gives priority to the top (front) panel. 2750 op#1 R3.doc 10-02 Type B bookfold packet The Type B bookfold gives priority to the bottom (back) panel.
  • Page 10 C-fold packets, a feature exclusive to Printfold folders, handle easier than Z-folds because they sit in the file with only one edge showing, and can therefore be sorted through much faster. 2750 op#1 R3.doc 10-02 cs&zs.cvs C-folds handle easier than Z-folds...
  • Page 11 No matter what media width, document size, or orientation, the accordion folder will pass documents without folding unless the feed length is 3¼” greater than the selected panel width for accordion folding (210mm, 8½”, 9”, 11”, 297mm or 12”). 2750 op#1 R3.doc 10-02 PRINTER/ Document PLOTTER selfeed.cvs...
  • Page 12 2750 op#1 R3.doc 10-02 Width sensors at input end of bridge Sensor status determines document width. For example, if sensor PS3 is activated and the others not, the width must be greater than 15½”...
  • Page 13 Main features of the 2750 folding system • A length measurement system in the bridge between printer and folder automatically allows the accordion folder to deliver equal-width compensating panels, usually aligned with the trailing edge of the document. The same system ensures that the overall width of a bookfold is always 8½”, no matter what the document length.

  • Page 14: Operating Instructions

    The Printfold Model 2750 Folder is self-programming, and so automatic in operation that there is really very little for the operator to do. The folder turns on automatically when a document enters the bridge, and turns off (times-out), when the flow of prints ceases.

  • Page 15: Operator's Controls

    Handfeed Pressing the Handfeed push- button switches the 2750 into hand-folding mode, displaying a modified list of programs. The print to be folded is fed into the rollers at the rear of the folder (image face-down, title block leading - centering is not important, but alignment is).
  • Page 16 Generic Folder Interface (GFI) the folder control panel displays the message ONLINE. With the FX interface the control panel displays ONLINE followed by the fold programs assigned to P1, P2 and P3. Except for Handfeed and Receiver Advance → (optional, except Fold System 40)), local 2750 controls are disabled in NORMAL mode.
  • Page 17 C-style crossfold). The fold choices are factory-assigned to specific fold banks from a set of over 100 programs resident in the 2750 firmware (fold bank examples: 0 = USA, 1 = DIN, 3 = France). Fold banks may be edited on-site at any time by trained service technicians.
  • Page 18 Manual document feeding In its normal “on-line” mode of operation the 2750 automatically processes documents passed from the printer. The 2750 also allows off-line operation, accepting hand-fed documents for folding. Because the width measuring system in the bridge is inactive when the folder is off-line, hand folding has limitations which do not apply to on-line operation: •...
  • Page 19 During the folding process, the HANDFEED green LED on the operator’s control panel flashes, indicating that the system is busy. Do not try to hand feed another document until the light stops flashing. 2750 op#2 R3.doc 10-02 Hand feeding a document...
  • Page 20 2) If the folder is left idle in Handfeed Mode for 10 minutes it will automatically return to Online Mode. 3) If power is cycled while the folder is in Handfeed Mode, it will return to Online Mode on power-up. 2750 op#2 R3.doc 10-02 Page 2-7...

  • Page 21: Jam Conditions

    The following sections deal with jam clearing in specific locations signaled by the display on the operator’s control panel. 2750 op#2 R3.doc 10-02 LED on the operator’s control ERROR WARNING...
  • Page 22 3. If the document is not visible, close and lock the bridge lid, then raise the bridge to the vertical position. 2750 op#2 R3.doc 10-02 Raising the bridge lid Release the lid by rotating the center catch counter clockwise.
  • Page 23 GENTLY up to expose the hand feed and stacking paper paths. Clear all paths of paper, then close the tower to restart the folder. 2750 op#2 R3.doc 10-02 Raising the bridge The bridge is a precisely manufactured assembly.
  • Page 24 4. If the document is not visible, or if it cannot be grasped easily, engage the crank handle provided in the drum faceplate. 2750 op#2 R3.doc 10-02 Accordion folder lid in raised position Use the “jog” feature …...
  • Page 25 Springs on the crank hand pins and shutters over the drum ends are designed to prevent this. Do not try to defeat these safety features. 2750 op#2 R3.doc 10-02 Raising the drum faceplate shutter The drum faceplate is mounted on the drum shaft at the end nearest to the operator’s...
  • Page 26 You are about to enter an area where line voltage (115 or 230Vac) is present unless you have REMOVED THE POWER CORD. CROSSFOLDER 2750 op#2 R3.doc 10-02 Crossfolder latches The upper section of the crossfolder is locked in place by latches on either side of the chassis.
  • Page 27 You may need to use the crank handle, turning it clockwise. Be sure there are no torn pieces of paper remaining in the upper nip rolls. 2750 op#2 R3.doc 10-02 Crossfolder rear panel Remove the rear panel for access to the...
  • Page 28 This indicates that one or more of the interlock switches (circuit breakers) is not engaged, a condition caused by doors, lids, etc., not being fully closed. The display on the operator’s control panel indicates where the problem lies. 2750 op#2 R3.doc 10-02 Crank handle engaged in crossfold roll Crossfold pocket...
  • Page 29 “on” condition (meaning that some fragment of a document may still be present). Close all covers. Powering the machine off and on does not clear a fault condition. Note that the display maintains a log of the previous 21 error conditions. Page 2-16 2750 op#2 R3.doc 10-02...

  • Page 30: Section 1: The Accordion Folder

    Sensors located at the fold rolls detect the leading edge of the document and this information is used to control the folding drum in the first phase of the folding program. 2750 op#3 R3.doc 10-02 Chapter 3 Fold rolls...
  • Page 31 The loop (C) caused by the in-feed rolls and drum driving in opposite directions expands to the point where it is trapped by the upper fold roll, thus making the first fold. 2750 op#3 R3.doc 10-02 [2] Panel measuring phase A measured length of the document is taken up by the folding drum.
  • Page 32 - as measured automatically by the bridge and in-feed system - happens to be an exact multiple of width S. 2750 op#3 R3.doc 10-02 [5] Starting the second fold Again, the opposing drives of drum and in-feed rolls cause a loop, this time in the other direction.

  • Page 33: Section 2: The Crossfolder

    If only one crossfold is called for [2], the lower crossfold blade acts simply as a diverter, pushing the descending packet through the lower crossfold fold rolls, and then out to the crossfold receiving tray at left (viewed from the rear of the crossfold section). 2750 op#3 R3.doc 10-02 Packet shifts left-right...
  • Page 34 Lower crossfold blade pushes packet into cross- fold rolls 2750 op#3 R3.doc 10-02 [2] Single crossfold mode The lower crossfold blade remains stationary, deflecting the cross-folded packet out to the receiving tray. [3] Double crossfold mode The lower crossfold blade fires to the left by solenoid action, pushing the packet into the fold rolls, thus making the second fold.
  • Page 35 Stack Sensor – Displays the state of stack exit sensor, 0 = blocked and 1 = clear. Quit – Returns the display back to the operator fold selections or ONLINE. * Jog functions are only available when the error light is on and the interlocked doors are closed. 2750 op#4 R3.doc 10-02 Chapter 4 Page 4-1...
  • Page 36 Parameter viewing and modification Viewing - unrestricted access Modification - technician only 2750 op#4 R3.doc 10-02 ) until the appropriate number is reached, then press the Substitutes for an LED. Displays the status of the photosensor at the tower exit: 1 = open (no paper present), 0 = covered (paper detected).

  • Page 37: Device Test

    Key Operator to simplify the selections available to the user. But note that the Fold Bank itself is in firmware and cannot be changed. Editing is confined to the list in NVRAM. 2750 op#4 R3.doc 10-02 to run the shift stepper motor in the left-hand shift .

  • Page 38: Activity Counters

    Parameters menu as follows (two lines due to display limitations): SHEETS (Ks) 1 4 8 7 = 1,487,000 SHEETS (1s) 3 0 5 Total 1,487,305 2750 op#4 R3.doc 10-02 from the Assign Folds SYSTEM MENU Page 4-4 . The control panel...
  • Page 39 721p (Synergix) Fold System 40 & XES 2750 Series fold tables Table Display Hand Feed? STACK 8.5 X 11 LAND C 8.5 X 11 PORT C 8.5 X 11 PORT Z 8.5 X 11 MIXED C 8.5 x 11 MIXED C...
  • Page 40 ERICSSON #2 INV DIN 20mm INV DIN 190 x 297 2750 op#4 R3.doc 10-02 Bookfold Style B, 7 ½” panels, 1" binding margin, Z crossfold Bookfold Style B, 7¼" panels, 1¼" binding margin, Z crossfold Bookfold Style B, 7" panels, 1½" binding margin, Z crossfold Bookfold Style B, 6¾"...
  • Page 41 9 x 12 MIXED C #1 8.5 FANFOLD 7080/7085 FOLDS - 8.5 X 11 2750 op#4 R3.doc 10-02 Bookfold Style F, 190mm panels, 0mm binding margin, tab, Z crossfold 297 mm, title block trailing Endless fold style 210mm panels, Z crossfold 297mm, title block trailing...
  • Page 42 210 x 297 BkF Z 40mm INV DIN 20mm INV DIN 190x 297 INV AFNOR 2750 op#4 R3.doc 10-02 Description No fold, flat sheet stack on top of folder cabinet Bookfold Style 1 (F = Favors Front), 190mm panels, 20mm binding margin, Z crossfold...
  • Page 43 Bridge lid open (2750 only) 0012 Tower door open (2750 only) 0014 Accordion lid open (2750 only) 0015 Crossfold left latch open (2750 only) 0016 Crossfold right latch open (2750 only) 0017 Rear door open (2750 only) 001F Crossfold infeed interlock (2750 only) 0020 Unexpected sheet at PS7.
