Thank You for Purchasing a Super Shred 3! We appreciate having you as our customer and wish you many years of safe and satisfactory operation. SPLIT-FIRE SALES INC. 285633 Airport Road Norwich, ON N0J 1P0 Canada 1-877-548-3473 / 519-468-3647 Like, Follow and Subscribe!
Throughout this manual, “Back” and “Front” terms will be used. On the Super Shred 3 the “Back” refers to the power cord side. The “Front” refers to the side with the main electronic control panel. The terms “Left Hand”...

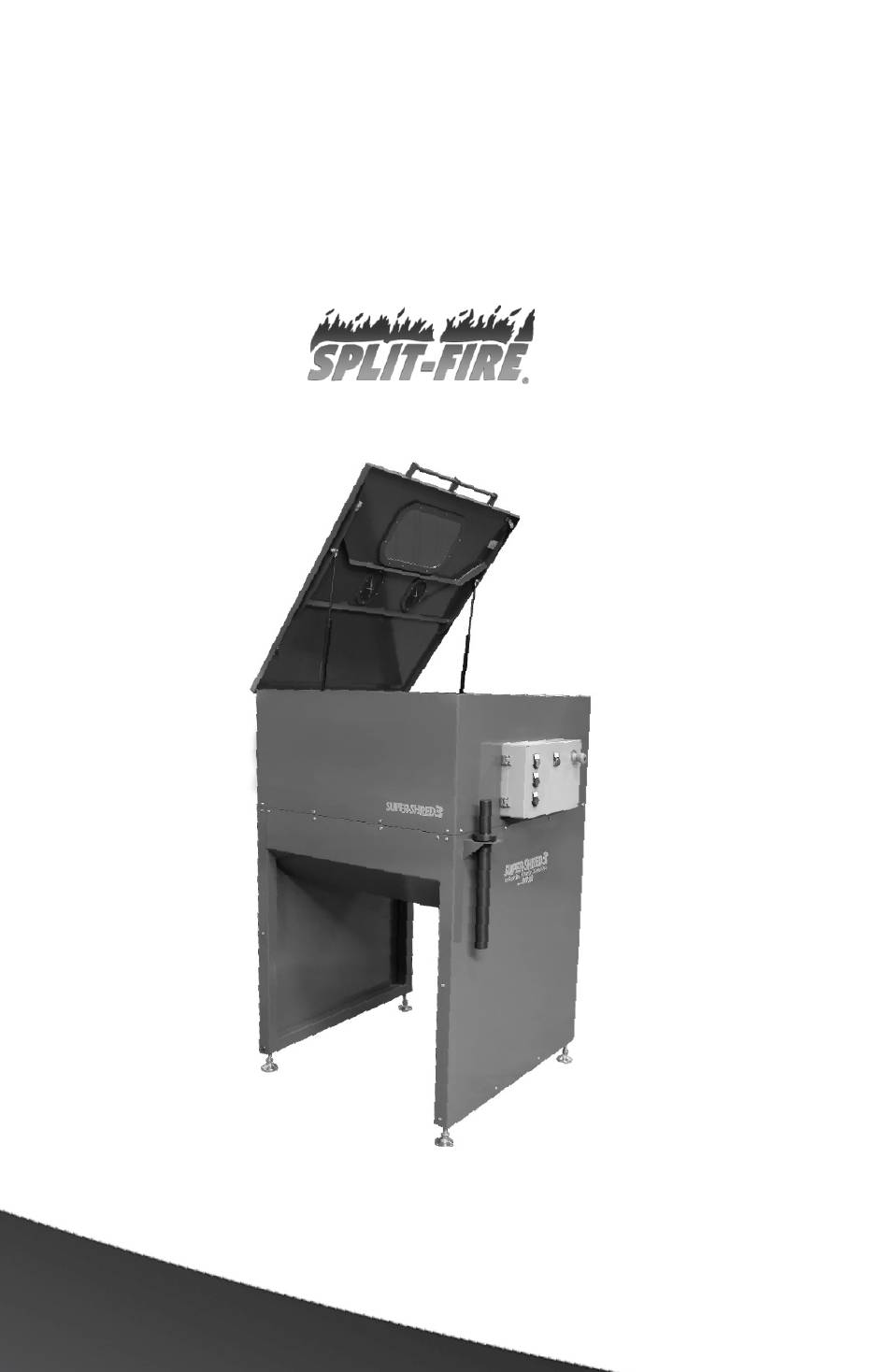

Super Shred 3 Introduction Owners Manual Product Information This product can be identified by the model sticker on the front of the machine (Super Shred 3). Main Specs: Footprint: 36” X 36” Capacity: 150 Liters Shredder Size: 10”X12” Shredder HP: 3 HP Shredder RPM: 20 RPM Shredder Rotor Thickness: 1/4"...
Super Shred 3 Safety Owners Manual 2. Safety Please carefully read and understand the warnings about safety concerns relating to machine damage and important servicing information. Please read all these messages to avoid personal injury and machine damage. The three main messages will start with:...
Super Shred 3 Safety Owners Manual Safety Labels The machine safety labels shown in the section below are very important. They are placed in areas on the machine that draw the attention of the operator to potential safety hazards on the machine. If at any time the stickers are removed, or come off during operation, contact your dealer or the manufacturer immediately for replacement decals.
Super Shred 3 Safety Owners Manual Operation Safety Warning! DO NOT override, disconnect or customize safety switches in any form. This machine has been manufactured for safe operation with safety switches in place. This machine uses safety switches on all compartment doors. If for any...
Owners Manual Storage Safety Important! When storing your Super Shred 3 special attention should be drawn to the areas listed below. 2 Weeks - 1 Month Storage Before storage it is important that the machine is clean. Any time the machine is left for more than 2 weeks, the machine must be cleaned thoroughly.
Owners Manual 2.4 CSA Certification This Super Shred 3 has been CSA Certified for use in any province in Canada. A CSA inspection sticker will be placed either on the front electrical panel, or on the back on the Super Shred 3.
Super Shred 3 Operation Owners Manual Before Operation It is important to ensure the machine is ready for operation. There are several things to check before safe operation is ensured. 1. Always check to make sure scheduled maintenance has been completed on the machine.
Page 12
If any abrupt, loud or abnormal noises are observed. Immediately turn off the machine. Contact a maintenance specialist or Split-fire so the issue can be solved After these steps have been completed the machine is ready for operation.
3. Reverse – This button will cause the shredder to reverse if there is a jam. This button is momentary and will only operate the machine if it is being pushed. Once it is released, the Super Shred 3 will automatically come to a stop.
Page 14
Once the waste cart has been filled, it can be emptied in the appropriate location, and repositioned under the Super Shred 3. This procedure must be repeated as many times as needed.
Super Shred 3 Operation Owners Manual Troubleshooting 1. Shredder is not feeding material The shredder may not be feeding for several reasons. The most common reason is due to an overfilling / packing of material in the top hopper. The operator can try to push the material into the shredder teeth using the push stick.
Page 16
6. Emergency Stop light is ON The Emergency switch will illuminate when the shredder is in emergency stop mode. To place the Super Shred 3 in operation mode, pull and twist the emergency stop lightly. This will allow it to “pop out” into operation mode. If the red light remains ON, an electrical fault within the safety circuit is being observed.
Super Shred 3 Maintenance Owners Manual General Maintenance 1. Gear Oil This machine has 1 gear reducer, which needs maintenance at regular service intervals. Change interval: 2500 Hrs. Oil Type: 80W-90 If the daily average use is 2-4 hours, the gear oil should be changed every 2 years.
Page 18
Be aware of the corrosive nature of the cleaning agent being used. If the corrosive agent in the cleaning agent is too strong, it may corrosion damage to the Super Shred 3. Corrosion damage can remove surface coatings and can cause premature corrosion on uncoated parts such as the 4140 rotors / spacers, or stainless-steel wear components.
Maintenance Owners Manual Breakers The Super Shred 3 will show a breaker fault by illuminating the Electrical Fault Light on the main control panel. This light will illuminate if there is either a breaker trip, or a general wiring fault.
Super Shred 3 Maintenance Owners Manual Wear Parts Super shred machines have wear parts located in the shredding unit. These parts are important for proper operation. If the machine begins to lose performance these parts will need to be replaced.
Split-Fire must be contacted before the problem on the machine has been fixed. Split-Fire will diagnose the problem and authorize any warranty work that will be allowed. If Split-Fire does not authorize service or parts are not sent from Split-Fire Warranty will not be applicable.
Owners Manual 4.6 Technical Support Contact WARNING!!! Do NOT attempt to modify parts or fix problems with your Super Shred 3 without consulting Split-fire Technical Support. Unauthorized modifications may cause serious injury or death. Split-fire Technical Support 1-877-548-3473 / 519-468-3647 Extension 2 –...
