Striker B.A.M.F.F. 4.0 Quick Start Manual

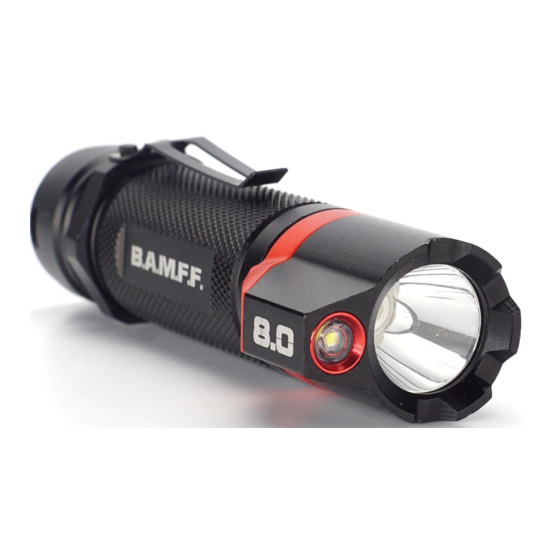

STRIKER B.A.M.F.F. - BROAD ARRAY MULTI FLOOD FLASHLIGHT
The Striker B.A.M.F.F. dual LED flashlight combines a powerful spot light for long distance and a wide angle flood
light for close range area lighting. These two LEDs can be used simultaneously with the B.A.M.F.F. increasing your
overall visibility.
Compatible with one (1) 18650 rechargeable battery or three (3) AAA alkaline batteries
129mm length x 30mm diameter
113g weight (battery excluded)
Made from aircraft-grade aluminum
Anti-roll body design
Hard anodized anti-abrasive finish
Tap to change mode tactical tail switch
Reverse polarity protection guards against improper battery installation
Micro-USB charging cradle and cable included (6.0 and 8.0 models only)
2000mAh 18650 Li-ion rechargeable battery included (6.0 model only)
2600mAh 18650 Li-ion rechargeable battery included (8.0 model only)

TECHNICAL PERFORMANCE

VERSION MODE
HIGH
LOW
HIGH
LOW
HIGH
LOW
Notice: The above-mentioned parameters (lab-tested by Striker: 4.0 using 3 x AAA alkaline batteries, 6.0 using
2000mAh 18650 rechargeable Li-ion battery and 8.0 using 2600mAh 18650 rechargeable Li-ion battery) are
approximate and may vary between flashlights, batteries and environments.

OPERATION

ON/OFF
Press the tail switch button until you hear a click then release to turn the flashlight on/off

MODE SELECTION

With the light on, tap/half-press (no click) the tail switch button to cycle through the six light modes in the order of:
Spot/Flood High Spot High

MEMORY CIRCUIT

The Striker B.A.M.F.F. will memorize the last selected mode for 10 seconds and will continue to cycle through modes
when flashlight is turned back on. After 10 seconds flashlight resets back to the first mode.

CHARGING

1. Turn off the flashlight, remove the 18650 battery and place it into the micro-USB 18650 charger cradle.
2. Plug the micro-USB cable into the port on the side of cradle then plug the other end of the cable into a USB wall
charger*, USB car charger* or any other USB charging device* (such as a computer). *not included
3. The indicator light turns red to indicate the charging process has begun. The indicator light turns solid green when
the battery is fully charged. It takes approximately 4 hours to fully charge the 2000mAh Li-ion 18650 battery (lab
tested by Striker using 2000mAh Li-ion 18650 rechargeable battery).
4. Once the battery is fully charged, remove the battery from the charging cradle and place the battery back into the
flashlight.
5. Please recharge a stored 18650 battery every four months to maintain optimum performance of the battery and
maximize charging levels.
ANSI/NEMA FL1 STANDARD
OUTPUT RUNTIME
400 Lumens
2h min
10h
40 Lumens
600 Lumens 1h 45min
120 Lumens 8h
1h 45min
800 Lumens
120 Lumens
11h
Flood High
DISTANCE INTENSITY
115m 4350cd
(max)
(max)
145m 7050cd
(max)
(max)
8900cd
170m
(max)
(max)
Flood Low Strobe
IMPACT
RESISTANCE
1m
SOS
WATERPROOF
IPX6
