Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell. Replacement parts or products will be sent at our discretion,
within the one-year warranty period. Proof of purchase, with the date of purchase as well as photos of the defective merchandise, must be provided. If you have any
questions, comments or concerns please feel free to contact us by phone at: 888-881-4668. You may also contact us by email: customerservice@serenityhealth.com,
or via our webpage at:
www.serenityhealth.com/contact-us/
INSTRUCTIONS
1.) Remove parts from carton. Place carton on flat surface. Assemble cart while on the carton to
avoid scratching or damaging the parts.
2.) Tools Needed: Socket wrench, an adjustable crescent wrench.

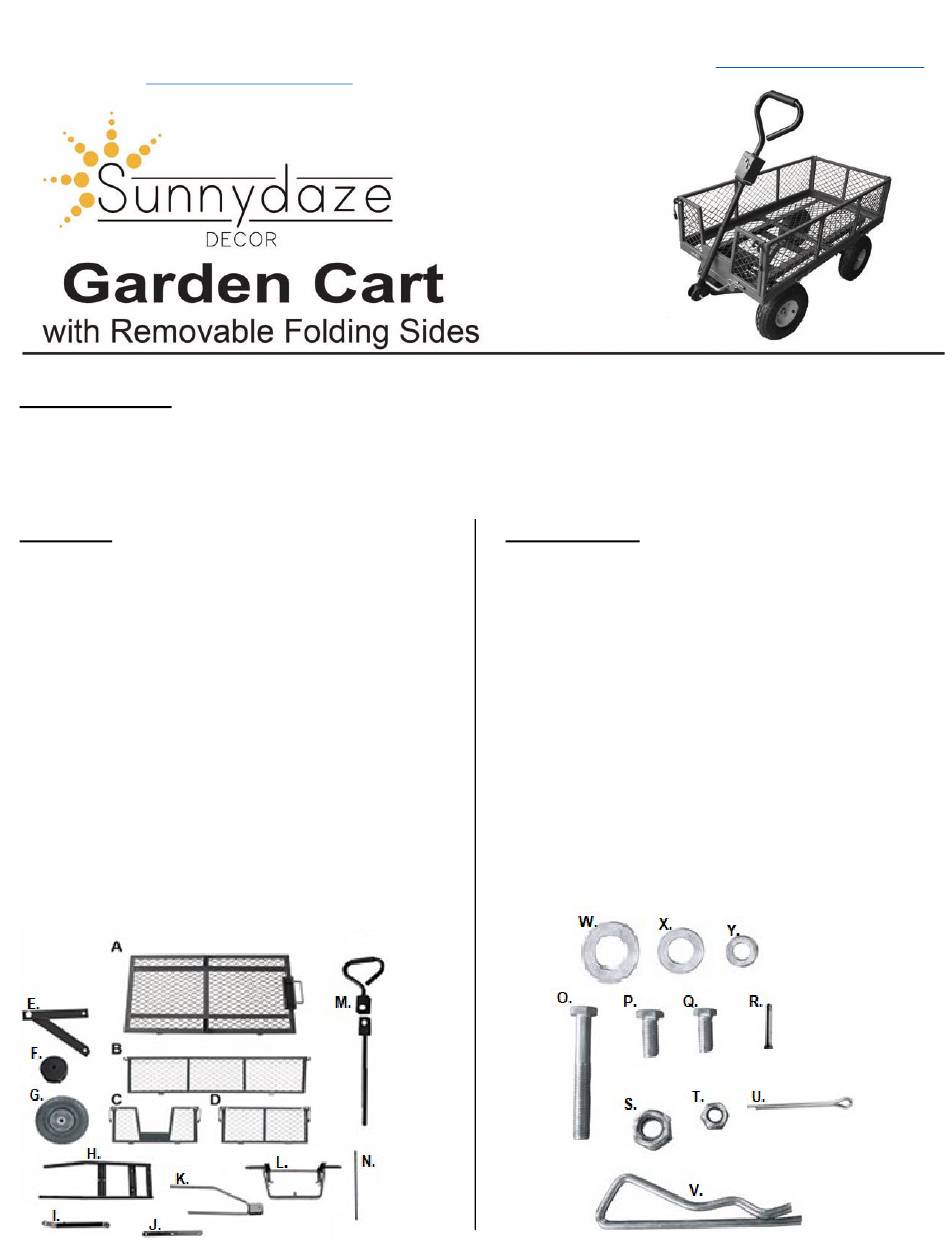

Parts List
A. Bed (1)
B. Side Panels (2)
C. Front Panel (1)
D. Back Panel (1)
E. Rear Axle Support Assembly (2)
F. Hand Coupler (1)
G. Wheels (4)
H. Bottom Support (1)
I. Center Front Axel Brace (1)
J. Steering Connector (1)
K. Yoke (1)
L. Front Axle Brace (1)
M. Handle (1)
N. Rear Axle (1)
Hardware List
O. M8 x 60 Hex Bolt (1)
P. M8 x 20 Hex Bolts (1)
Q. M8 X 16 Hex Bolt (11)
R. Handle Pin (1)
S. M12 Nylon Nut (2)
T. M8 Nylon Nut (13)
U. Cotter Pin (4)
V. Fence Assembly Pins (4)
W. M16 Washers (2)
X. M12 Washer (2)
Y. M8 Washers (13)
Advertisement
Table of Contents
Summary of Contents for Sunnydaze LW-DUC
- Page 1 Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell. Replacement parts or products will be sent at our discretion, within the one-year warranty period. Proof of purchase, with the date of purchase as well as photos of the defective merchandise, must be provided. If you have any questions, comments or concerns please feel free to contact us by phone at: 888-881-4668.
- Page 2 Turn (Part A) BED Upside down. Attach FRONT AXLE BRACE (PART L) to BOTTOM SUPPORT (PART H) middle bar. Attach STEERING CONNECTOR (PART J) ends to REAR AXLE SUPPORT (PART E) using M8X16 HEX BOLT, M8 WASHER, and M8 NYLON NUT (PART Q, Y and T) Attach STEERING CONNECTOR (PART J) two- hole flat side to BOTTOM SUPPORT (PART H).
- Page 3 12.) Place FRONT TIRES (PART G) onto FRONT AXLE BRACE (PART L), secure with M12 WASHER (PART X) and M12 NYLON NUT (PART 13.) Place BACK TIRES (PART G) onto REAR AXLE (PART N), secure with COTTER PIN (PART 14.) Thread M8X60 HEX BOLTS (PART O) between YOKE (PART K), HANDLE COUPLER (PART F), and HANDLE (PART M) and secure with...
- Page 4 IMPORTANT SAFETY INSTRUCTIONS A. MAX LOAD: 600 lbs. NEVER OVERLOAD THIS CART B. DO NOT Inflate tires more than 40 PSI C. DO NOT Operate if any part is damaged or broken D. Lower fence rails when loading large items onto cart. E.
