AMIAD WATER SYSTEMS Ltd.

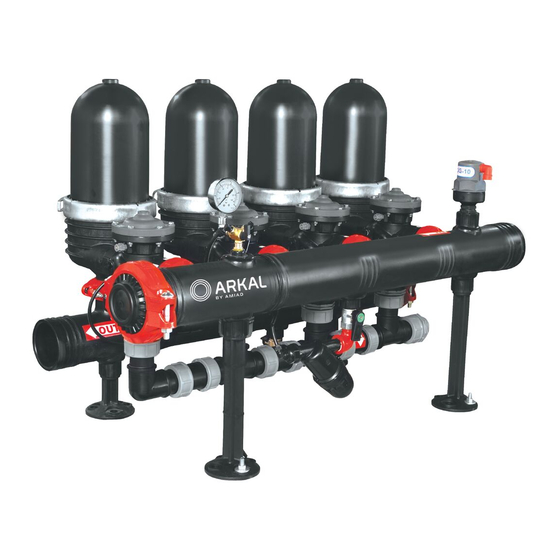

Arkal Spin Klin 2" with Air Aid Flushing
Serial number:
Order number:
Catalog number:
Filtration degree:
Tested by:
Installation and Operation
(AAF)
User Guide
Instructions
_______________
_______________
_______________
_______________
_______________
910101-000616 / 07.2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for amiad Arkal Spin Klin 2
Summary of Contents for amiad Arkal Spin Klin 2
- Page 1 AMIAD WATER SYSTEMS Ltd. Arkal Spin Klin 2" with Air Aid Flushing (AAF) User Guide Serial number: _______________ Order number: _______________ Catalog number: _______________ Filtration degree: _______________ Tested by: _______________ Installation and Operation Instructions 910101-000616 / 07.2017...
- Page 2 Amiad or consult Amiad experts or its authorized representatives if you have any questions. Amiad Water Systems Ltd. D.N. Galil Elyon 1, 1233500, Israel Tel: 972 4 690 9500 | Fax: 972 4 814 1159 Email: info@amiad.com FILTER TYPE 2"...
-
Page 3: Table Of Contents
12.1 STANDARD VALVES PARTS LIST .................... 24 12.2 AW VALVES PARTS LIST ......................25 12.3 SW VALVES PARTS LIST ......................26 13. SYSTEM DRAWINGS (to be amended per each specific ordered) ..........27 14. AMIAD LIMITED WARRANTY ....................28 FILTER TYPE 2" AAF 07.2017 10101... -
Page 4: Introduction
1. Introduction General: Amiad Water Systems congratulates you on purchasing our new Arkal Spin Klin Filtration System. All Arkal filters are easy to install, use and service and require no special skills to operate. For operation and maintenance of this filter please follow the instructions in this manual. This Arkal Spin Klin battery system is an automatic self-cleaning filter designed for non-hazardous liquids only and for operation within the pressure framework described in the specifications table. -
Page 5: Shipment And Transporting
2.3 Shipment and transporting: ➢ Shipping and transporting the filter must be done in a safe and stable manner and in accordance with the relevant standards and regulations. ➢ For shipping, lifting and positioning the filter, use only approved lifting equipment and authorized employees and contractors. -
Page 6: Civil Engineering
2.7 Civil Engineering: ➢ Make sure that the filter installation is done by the manufacturer qualified technicians. ➢ Make sure that any civil engineering work at the installation site such as construction, lifting, welding, etc. is done by qualified workers / technicians / contractors and in accordance with the relevant local standards. -
Page 7: Description & Operation
3. Description & Operation 3.1 Disc Filtration Technology: Amiad Filtration Systems uses a specially designed disc filtration technology. Thin, color-coded polymeric discs are diagonally grooved on both sides to a specific micron size. A series of these discs are then stacked and compressed on a specially designed spine. -
Page 8: Spin Klin Technology
3.2 Spin Klin Technology: Spin Klin Spine - The Core of the Spin Klin Filtration System The Spin Klin discs are stacked on the Spin Klin Spine. The discs are color-coded according to micron size, and are assembled to suit your water filtration requirements. -
Page 9: Back-Flush Valves Operation Mode
3.3 Back-flush Valves Operation Mode: Modes of the filter’s Control valve Filtration Position: • Inlet valve - Water flows from port [2] (main supply) to port [C] (filter connection). Port [1] (drain water outlet) is closed by the seal. • Outlet valve - Water flows from port [C] to port [2]. -
Page 10: Filtration Process
3.4 Mode of Operation Filtration Process • During the filtration stage water flows through the Inlet Manifold, distributing through the Straight flow Valve to the 2" Spin Klin Filter. • The water passes through the Filters Filtration Elements Cleaned and flows out through the Straight flow Valve to the Outlet Manifold and to the customer. -
Page 11: Technical Data
4. Technical Data Parameters METRIC Maximum pressure 145 psi ( 77 °F) 10 bar (25 C) 1.0 bar Minimum working pressure 14.5 psi Minimum pressure for back-flush: 400µ-130µ 43.5 psi 3 bar 100µ-70µ 50.75 psi 3.5 bar 50µ-20µ 72.5 psi 5 bar 12 –... -
Page 12: Dimensional Drawing
5. Dimensional Drawing Description Length Height Width 2-unit battery 1128 3-unit battery 1140 1128 4-unit battery 1440 1128 5-unit battery 1,740 1128 6-unit battery 2,040 1128 7-unit battery 2,340 1,178 8-unit battery 2,640 1,178 FILTER TYPE 2" AAF 07.2017 10101 000616 Page 12 of 28... -
Page 13: Installation & Start-Up
6. Installation & Start-up Installation A. Check for any transport damage (The System operates under pressure!). B. Make sure that the inlet and outlet orientations are correct (shown by arrows on The System). C. Connect the Inlet, Outlet, Drain with theirs valves to the Main manifolds. D. -
Page 14: System Maintenance
7. System Maintenance General: Before beginning any maintenance procedure, carefully read the safety & instructions in this document, make sure that all the workers at the filtration site are fully aware and comply with the safety instructions, these and any other local safety instructions. 7.1 General inspection of the filter module operation: This is the visual basic general inspection procedure of the filter for proper operation. -
Page 15: Periodical
7. Make sure that your maintenance engineers are aware of even the slightest sign of damage to the filter housing, lid or accessories. In such case, please contact your Amiad representative immediately. 8. Re-assemble the filter’s lids (As described in chapter 'Open the Filter for Service' in this document) 9. - Page 16 Preparations: • Disconnect the system from the water supply and drain it via its 3/4" ball valve, live the valve open. • Perform a general inspection of the system. 1. Re-Check that the system is not under pressure! 2. Carefully release the clamp and remove the lid.
-
Page 17: Cleaning Recommendations
7.7 Cleaning Recommendations: Cause for clogged Filtration Discs: Water-formed deposits may cause clogging of the Filtration discs. The formation of these deposits depends on the quality of the water source and environmental conditions like temperature, pH, light, duration of filtration and more. Common water-formed deposits are: •... - Page 18 • The cleaning solution can be used for several sets of discs. As the cleaning activity of the solution deteriorates, it may be necessary to soak the discs for a longer time Cleaning Carbonates and Iron Deposits: • Open the filter and remove the dirty discs. •...
-
Page 19: Troubleshooting
8. Troubleshooting FILTER TYPE 2" AAF 07.2017 10101 000616 Page 19 of 28... - Page 20 FILTER TYPE 2" AAF 07.2017 10101 000616 Page 20 of 28...
-
Page 21: Control Scheme
9. Control Scheme FILTER TYPE 2" AAF 07.2017 10101 000616 Page 21 of 28... -
Page 22: Filter Parts Schedule And Parts List
11. FILTER PARTS SCHEDULE AND PARTS LIST Description COVER 2"-3" FILTER RPA 710103-005233 COVER 2"-3" FILTER RPP DW 710103-004798 2"-3" COVER PC TRANSPARENT 710101-000899 HYDRAULIC SEAL 2"-3" EPDM 770104-000248 HYDRAULIC SEAL 2" NBR 70 SHORE 770104-000251 HYDRAULIC SEAL 2"-3" VITON 70 SHRE 770104-000001 FILTER CLAMP 2"-3"... -
Page 23: Valves - Parts Schedule And Parts List
12. VALVES - PARTS SCHEDULE AND PARTS LIST 350 Series Plastic Back-flush Filter Valve - Double Chamber Straight/Angle & Reverse Flow Size: 2"x2" FILTER TYPE 2" AAF 07.2017 10101 000616 Page 23 of 28... -
Page 24: Standard Valves Parts List
12.1 STANDARD VALVES PARTS LIST STRAIGHT FLOW 2X2 350 BSP RPA BLACK BERMAD 730102-000169 Description BODY ASSY. F/2" STRAIGHT FLOW BERMAD 730113-000317 LOWER ADAPTOR F/2" STRAIGHT FLOW PLASTIC BERMAD 730113-000315 VALVE ASSY. F/2" STRAIGHT FLOW PLASTIC BERMAD 730113-000507 ADAPTATION KIT FOR THREAD-VICTAULIC,2"BS 760190-000074 SEALS + DIAPHRAGM KIT F/2"... -
Page 25: Aw Valves Parts List
12.2 AW VALVES PARTS LIST STRAIGHT FLOW 2X2 350 BSP RPA BLACK AGRESSIVE WATER BERMAD 730102-000108 Description BODY ASSY. F/2" 350 PLASTIC BERMAD WA 730113-000759 LOWER ADAPTOR F/2" STRAIGHT FLOW PLASTIC BERMAD WA 730113-000332 VALVE ASSY. F/2" STRAIGHT FLOW PLASTIC BERMAD WA 730113-000331 ADAPTATION KIT FOR THREAD-VICTAULIC,2"BS 760190-000074... -
Page 26: Sw Valves Parts List
12.3 SW VALVES PARTS LIST STRAIGHT FLOW 2X2 350 BSP RPA/DUPLEX BLACK SW BERMAD 730102-000106 Description BODY ASSY. F/2" 350 PLASTIC BERMAD WA-DUPLEX-S/S316 730113-000754 LOWER ADAPTOR F/2" 350 PLASTIC BERMAD WA-DUPLEX-S/S316 730113-000753 ACTUATOR F/2" STRAIGHT FLOW BERMAD WA-S. DUPLEX 730113-000589 ADAPTATION KIT FOR THREAD-VICTAULIC,2"BS 760190-000074 SEALS + DIAPHRAGM KIT F/2"... -
Page 27: System Drawings (To Be Amended Per Each Specific Ordered)
13. SYSTEM DRAWINGS to be amended per each specific ordered FILTER TYPE 2" AAF 07.2017 10101 000616 Page 27 of 28... -
Page 28: Amiad Limited Warranty
Product's performance or failure to perform, even if it has been advised of the possibility of such damages. Amiad will be excused for failure to perform or for delay in performance hereunder if such failure or delay is due to causes beyond its reasonable control or force majeure preventing or hindering performance.
