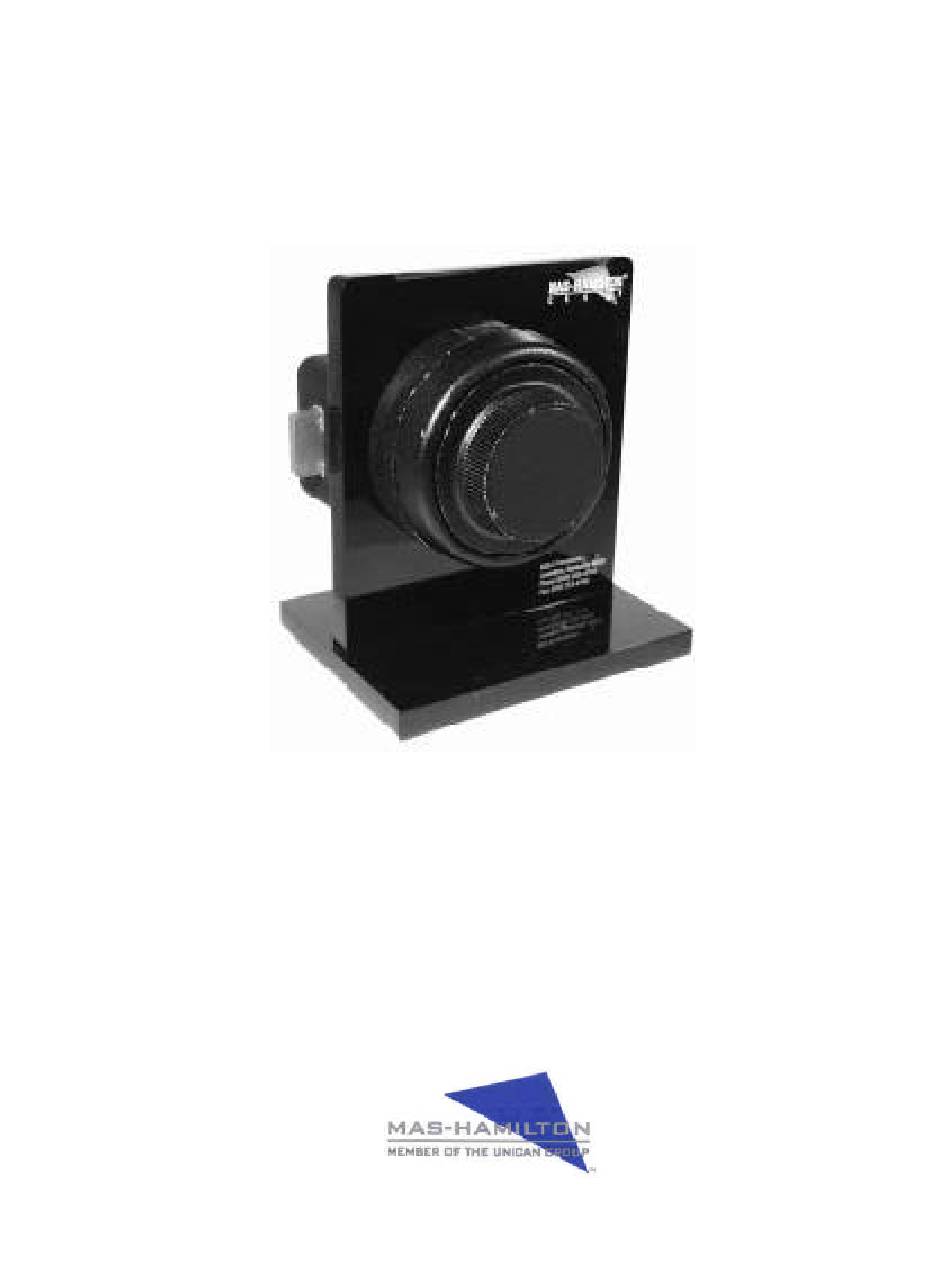

  • Page 1 OPERATING INSTRUCTIONS X-08 Type 1F HIGH SECURITY ELECTRONIC LOCK Please read all directions carefully before putting your X-08 into operation.

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ......................1 LOCK ON BACK COVER ..................1 DIALING THE X-08 ......................2 DIALING METHODS..................... 2 TO POWER THE LOCK ..................2 DIALING A COMBINATION.................. 2 OPENING THE X-08 (FACTORY COMBINATION) ............4 X-08 LOCK SETUP......................5 SET OPERATING MODE AND CHANGE COMBINATIONS........

  • Page 3: Introduction

    INTRODUCTION The X-08 uses sophisticated computer security and makes dialing much easier than that of traditional combination locks. The microprocessor in the lock recognizes a number as part of a combination when you stop dialing on that number and wait for the number to be registered. This enters the number into the computer’...

  • Page 4: Dialing The X-08

    DIALING THE X-08 DIALING METHODS The user should dial with complete full wrist turns. Stopping to regrip produces pauses in dialing activity. This helps the X-08 distinguish between human and robotic dialers. The X-08 may mistake a human for a robot if the user dials more than 1.3 revolutions in the Clock Wise (CW) direction with no pauses in dialing activity.
  • Page 5 Note: When dialing to the right after the E1, E2, or E3 prompts, the first numbers to appear on the LCD will alternately be 00 or 50. Do not stop on these numbers the first time they appear if they are part of your three number combination.

  • Page 6: Opening The X-08 (Factory Combination)

    OPENING THE X-08 (FACTORY COMBINATION) If you have not read the section on “Dialing the X-08”, it is important that you do so before proceeding. CW=ClockWise; CCW=CounterClockWise 1. Dial left (CCW) until lock is “ powered” . Stop. E1 will be displayed. 2.

  • Page 7: X-08 Lock Setup

    X-08 LOCK SETUP Setting up the X-08 lock for operation inovlves both the operating mode and the combination(s) Before you can set a new combination, you must select and set a mode of operation. The X-08 has three modes of operation: Single Combination Mode: The X-08 will open when one three-number combination is successfully dialed.
  • Page 8 Note: Hold your thumb on the change key retractor while inserting the Change Key to ensure that the pins enter the lock and are not being pushed back into the Change Key. 3. Release the container locking bolts. (Different containers will have different release mechanisms.) 4.
  • Page 9 The new combination will be displayed twice, two digits at a time, followed by PO. Note: If the correct combination is not displayed, you may pull out the change key and the lock will allow you to reset the combination. You must pull out the change key while the display is still flashing. When EC appears, insert the change key again and dial the desired combination.

  • Page 10: If You Lock The Change Key In The Safe

    The display will flash the new combination two times and then display the symbol PO (Pull Out Change Key). Note: If the correct combination is not displayed, you may pull out the change key and the lock will allow you to reset the combination. You must pull out the change key while the display is still flashing. When EC appears, insert the change key again and dial the desired combination.

  • Page 11: Using The X-08

    USING THE X-08 If you have not read the section on “Dialing the X-08”, it is important that you do so before proceeding. SINGLE COMBINATION MODE In this mode the X-08 functions much like a standard combination lock. It will open any time the three-number combination is correctly dialed.

  • Page 12: Supervisory/Subordinate Mode

    SUPERVISORY/SUBORDINATE MODE In this mode, two combinations must be correctly dialed to open the lock. However, it is different from Dual Mode because the Supervisory Combination must only be dialed once to UnLock (UL) the lock. Once the Supervisory Combination has been entered, the Subordinate Combination can be used to open the lock at any time during this “...

  • Page 13: Correct Method Of Closing/Relocking Container

    To Lock Up (UP) Supervisory Operator: 1. Dial left until lock is “ powered” . 2. Dial right to dial the Supervisory Combination as if dialing the combination to open the lock. EXAMPLE: Combination = 25-50-75 E1 will be displayed Dial right to first number, 25.

  • Page 14: Audit Features Of The Lock

    AUDIT FEATURES OF THE LOCK The X-08 lock tracks the number of successful openings for the lifetime of the lock. It also tracks the number of consecutive unsuccessful attempts and willalert you upon lock power up if there have been 3 or more consecutive unsuccessful attempts to open the lock. The lock bolt must be extended and the lock allowed to power down prior to obtaining an audit count.

  • Page 15: Surreptitious Attempt

    SURREPTITIOUS ATTEMPT SA indicates that a Surreptitious Entry Attempt condition exists. An X-08 lock will register a Surreptitious Entry Attempt condition when fifteen unsuccessful attempts to open the lock are made. The condition must be reset using the Reset Combination before the lock will open and operate normally RESET SA CONDITION Note: If in Supervisory/Subordinate mode, you must first dial the valid supervisor combination as required to set the...

  • Page 16: Change Reset Combination

    CHANGE THE RESET COMBINATION This procedure is similar to changing a combination when operating in Single Mode. Note: The Factory default for the Reset Combination = 50-25-50. 1. Dial left (CCW) until lock is “ powered” . 2. Dial right to dial the combination(s) to open the lock. 3.
  • Page 17 Once the lock has been successfully opened, the Reset Combination can be changed using the serial number. To Change Reset Combination using Serial Number: 1. Insert the Change Key into the back of the lock. 2. Release the container locking bolts. 3.

  • Page 18: Guide To Symbols

    GUIDE TO SYMBOLS Blank Display Means the lock has been reset or is powered down. Open Right Lightning Bolt Incorrect Combination Dialed. (When this symbol appears in the upper left corner of the display, simply redial combination). Unlocked Lock Up Change Key Symbol (The Change Key has been inserted and the lock is in Change Combination Mode).
  • Page 19 Enter Serial Number A Surreptitious Entry Attempt Exists Enter first Combination Enter second Combination...
  • Page 20 Document Number 500.018 Rev. D 6/99 Notice: The information in this manual is subject to change without notice and does not represent a commitment on the part of Mas-Hamilton Group (MHG). MHG shall not be liable for technical errors or omissions contained herein; nor for incidental or consequential changes resulting from the furnishing, performance or use of this material.
