Summary of Contents for GEONAUTE KEYMAZE 500 HIKE

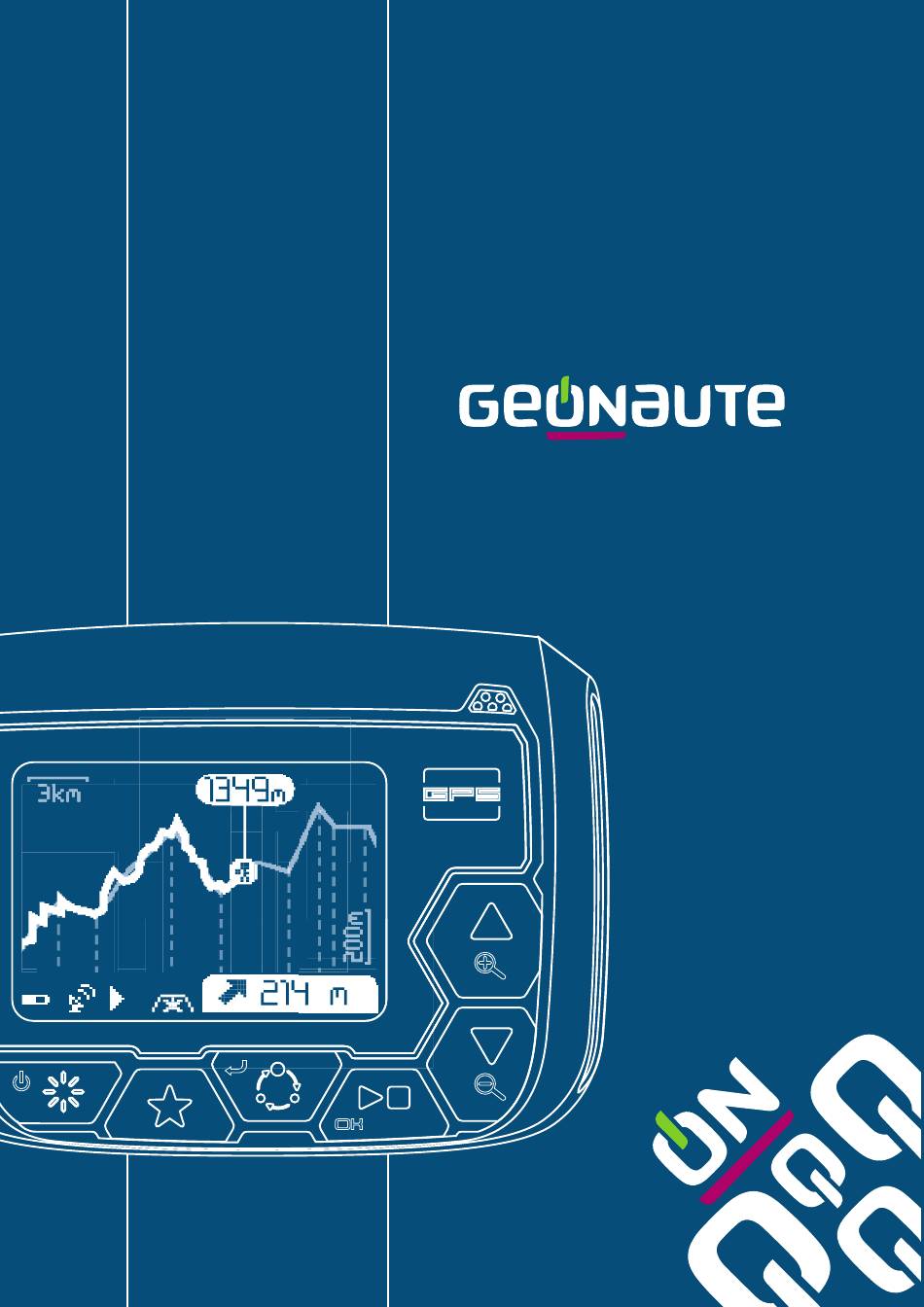

- Page 1 KEYMAZE 500 HIKE KEYMAZE 700 TRAIL...
- Page 2 1/ Create a route a/Download a route from Quechua Club b/Create a route in the Geonaute Software c/Rework a route from a previous session using Geonaute Software d/Rework a route from a previous session using the KEYMAZE 2/ Start a guided route...
-
Page 3: General Presentation
GENERAL PRESENTATION 1/ Button functions The arrows allow you to navigate Press for 3 seconds, to between the different menus. switch the KEYMAZE on/off Zooms in/out of the map view If the device is switched on, press briefly to activate/deactivate the back-lighting Closes the current page and returns to the... -
Page 4: Technical Data
3/ USB connection Recharging and the transfer of data are done using a USB cable. The device takes an estimated 3hrs 30mins to charge. DATA TRANSFER WITH THE PC RECHARGING THE DEVICE a) Remove the cap marked with the "USB" icon at the top of the KEYMAZE. b) Plug in the connector provided. -
Page 5: First Use
1/Firmware update Your KEYMAZE is a product that evolves over time. In order to have the latest version, update it before using for the first time. Step 1: download the latest version of Geonaute Software at www.geonaute.com (direct link: http://www.geonaute.com/files/software/GeonauteSoftware.exe) - Page 6 Step 3: add your product Go to equipment -my devices -add device -select KEYMAZE Quechua 500 or 700 Step 4: Once you have switched the KEYMAZE on and connected it to the PC, click on the image of the product and confirm with OK Step 5: Click "Update Firmware"...
- Page 7 2/ Initial adjustments a/ General adjustments Language - choice: English, Portuguese, Dutch, German, Italian, Spanish, French. Time - the time is automatically received by the GPS signal (Greenwich Meridian). You can however adjust the time difference to match your time zone. Unit - You can choose between the following two measurement systems when setting the units of measurement: metre/gram or feet/pounds (imperial units) Beep –...
- Page 8 This menu allows you set the number of pages, the number of views as well as the values available during your exercise. It is also possible to set these different screens using the Geonaute Software and then transfer them to the KEYMAZE:...
- Page 9 e/ Capacity Battery life: 0-15hr Storage capacity: 0 to 361 hours depending on the sampling selected Sampling of points: From 1 point per second to 1 point every 10 seconds Value by default: 1 point every 2 seconds The sampling involves recording the coordinates of your route at regular time intervals. f/ Calibration Press the OK button after the animation to launch the calibration.
- Page 10 This mode updates your KEYMAZE using the Geonaute Software interface allowing you to benefit from the latest improvements. To do this, you need to be connected to your PC using the cable provided and the Geonaute Software application must be active.
-
Page 11: Free Mode
(only available on the KEYMAZE 700 version) : The lap time allows you to memorise and display your session information at regular intervals. This data can then be viewed later using the GEONAUTE SOFTWARE. AUTO – the sat nav will record a lap time at each change of section (change between an... - Page 12 If the belt cannot be found during the second attempt, check out the FAQ section (on www.geonaute.com/fr/forum). If you do not wish to use the belt, select NO during the search, in which case you will not get any heart rate information during your exercise.
- Page 13 2/ Starting my session After searching for the signal, the exercise screens open up straight away and the KEYMAZE is then ready (flashing triangle at the bottom of the screen). To start the activity, press Start. During the session, you can pause the session by pressing the Start/Stop button.
- Page 14 Quit/save Only appears if the session has been paused. Select Quit and Save to finish the session. Mark a POI Allows you to save the coordinates of a point of interest. You will be prompted to enter a category and a name. Go to POI You can decide to go to a point of interest during a session.
-
Page 15: Navigation Mode
If one of your friends or yourself has already done a route, you can convert it into a track. In the Geonaute Software, the route is stored in your history. In the "my sessions" menu, simply mark the session by clicking on it with the mouse and then select the "add to routes" option. The track will then be optimised and the changes in altitude preserved. - Page 16 d/ Reworking a route from a previous session using the KEYMAZE You can carry out the operation directly in the KEYMAZE. Select a previous session (DATA/SESSIONS) by pressing OK. When the details of the session appear, press "STAR”. The product will then prompt you to convert this "session"...
- Page 17 LAP TIME (LAP) Only available on the KEYMAZE 700 version. The lap time allows you to memorise and display your session information at regular intervals. This data can then be viewed later using the GEONAUTE SOFTWARE. AUTO – the sat nav will record a lap time at each change of section...
- Page 18 If the belt cannot be found during the second attempt, check out the FAQ section (on www.geonaute.com/fr/forum). If you do not wish to use the belt, select NO during the search, in which case you will not get any heart rate information during your exercise.
- Page 19 4/ The guiding system a/ Start my session After searching for the signal, the exercise screens open up straight away and the KEYMAZE is then ready (flashing triangle at the bottom of the screen). To start the activity press Start. During the session, you can pause the session by pressing the Start/Stop button.
- Page 20 Map view This view indicates your position, your planned route, your current path as well as the distance between you and the next point and the heading you need to take after this point. You can zoom in and out using the UP and DOWN arrows. When you are on the planned route, the guiding is similar to a sat nav in a car, and will indicate the heading you need to take at the next point.
- Page 21 START PT This mode allows you to return to your start point. You can choose to take a route that you have already done (turn around) or be guided along a direct route. If you would like more information on the guiding modes, go to the Guiding section. SUNSET/RISE INFORMATION This information gives you the sunrise and sunset times as well as the time remaining before the next event...
- Page 22 c/ Coordinates You can use the KEYMAZE to guide yourself towards a point defined by a pair of coordinates ADVICE OF THE PRODUCT MANAGER: there are several coordinate formats and the KEYMAZE allows you to choose between the following 4 types: degrees, 100,000th degrees, minutes, 1,000th degrees, minutes, seconds, 100th UTM coordinates.
- Page 23 You can transfer the sessions stored in the KEYMAZE to the PC using the Geonaute Software (download at www.geonaute.com). Start Geonaute Software. Connect the KEYMAZE to the USB port of your PC and switch the product on. Select the "import from the device" option. The sessions stored on the KEYMAZE will then be available for viewing in "my sessions".
-
Page 24: Complementary Information
1/ Problem recognising Geonaute Software The USB drivers may not have been properly installed during the Geonaute Software installation process. Reinstall the drivers for the KEYMAZE 500 Hike and 700 Trail by downloading them to this address: www.geonaute.com/files/support/drivers/GPS/STM.exe 2/ Problem updating firmware... -
Page 25: 4/ Limited Warranty
In the Geonaute Software, enter the "RESCUE" mode to restart the update procedure 3/ Accessories Accessories for your KEYMAZE 700 TRAIL are available for purchase in your Decathlon store at the Workshop department, with the following references: 1175863 1353064 1324269...
