Nauticam 83255 Instruction Manual

Instruction Manual for Bayonet Converter
for NA-TG5 / Olympus PT-058/059
PN#83255, #83256
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center
is located.
NAUTICAM does not hold responsibility for damage, of any nature, to
any equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.

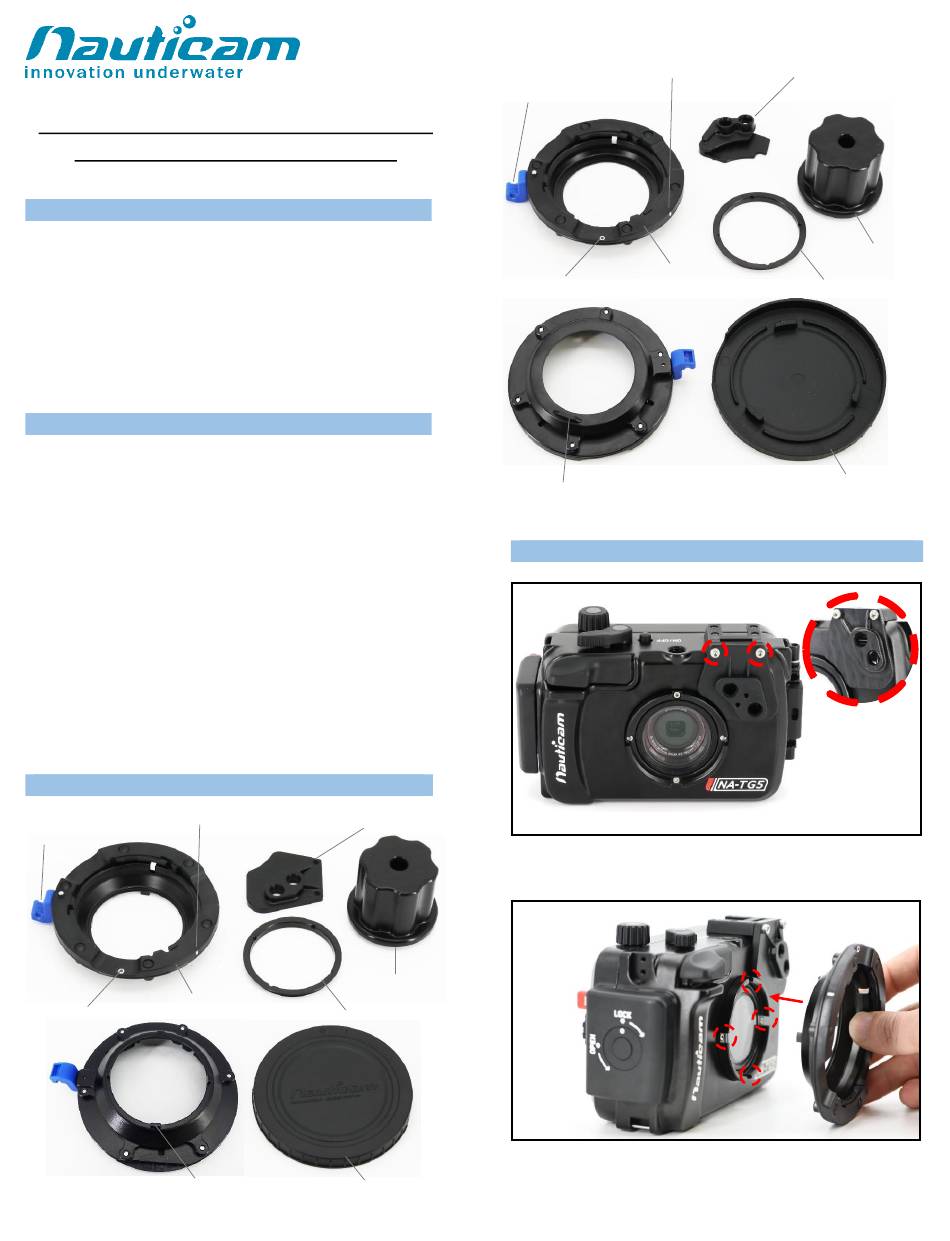

I P
DENTIFICATION OF ARTS
Lens Alignment ''I'' mark Optical Fiber Connector
Lens Release Button
Bayonet Converter
Lens Alignment Dot
Positioning Blocks (4x)

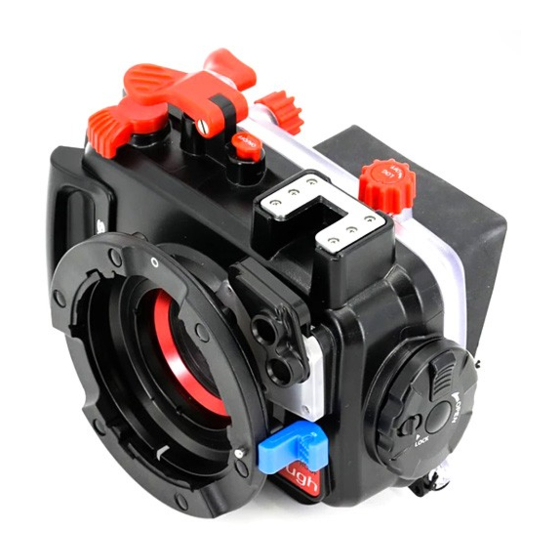

Bayonet Converter for NA-TG5
Lens Release Button
astening Tool
F
M52 Locking Ring
Hard Cap
Lens Alignment ''I'' mark
Bayonet Converter
Lens Alignment Dot
Positioning Block
Bayonet Converter for Olympus PT-058/059
I T NA-TG5 H
NSTALL O OUSING
Remove the optical fiber connector from housing, then install the
optical fiber connector provided.
Align the 4x positioning blocks on the bayonet converter with the slots
on the front of the housing.
--- continue on next page ---
Optical Fiber Connector
astening Tool
F
M52 Locking Ring
Hard Cap
Update as of 2020-02-28
