Summary of Contents for Mustang MSD824
- Page 1 FOR MODEL NUMBER MSD824 OWNER'S MANUAL TWO-PIECE FLOOD RESPONSE SUIT (TOP AND BIB) 3-in-1 versatility in the Quick-Lock waist closure system converts the top and bib into a single suit with strong dry suit performance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS MSD824 – DESCRIPTION ................1 SIZING GUIDE ....................2 INSTRUCTIONS FOR USE ................3 CCS™ ADJUSTABLE NECK SEAL ............... 3 NEOPRENE WRIST SEAL FITTING ............3 DONNING AND DOFFING ................5 DONNING THE SUIT ..................5 SEALING THE QUICK-LOCK™ WAIST CLOSURE SYSTEM .... 5 DOFFING THE SUIT ....................7... -
Page 3: Msd824 - Description

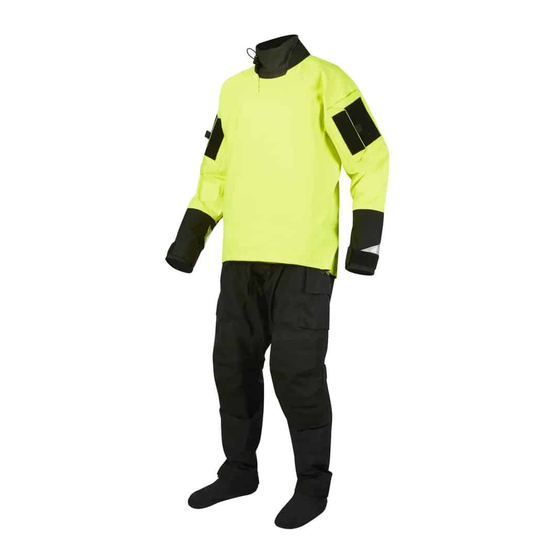

MSD824 – DESCRIPTION The MSD824 is an innovative and unique waterproof breathable constant-wear floodwater response dry suit, ideal for flood and after-incident responses. Developed by Mustang Survival and First Responder operators who have years of field experience in after-event clean up and operations. The two-piece design provides maximum flexibility during after-incident and flood operations. -
Page 4: Sizing Guide
WITH THESE TYPES OF OPERATIONS AND COMPLETE TRAINING IN THE USE OF WATER RESCUE OPERATIONS EQUIPMENT AND TECHNIQUES. SIZING GUIDE The MSD824 is available in four sizes (M, L, XL, XXL) based off Mustang Survival’s Mobility Based sizing. The sizing guide is available at www.mustangsurvival.com/mobility. -
Page 5: Instructions For Use
Two-Piece Flood Response Suit. CCS™ ADJUSTABLE NECK SEAL Mustang’s patented Closed Comfort System CCS™ can be worn loose to provide comfort out of the water and can quickly be drawn tight to keep the water out. The adjustable seal also provides increased durability compared to traditional latex seals and allows the suit to be worn by multiple users without compromising waterproof integrity. - Page 6 STRAIGHT, CAREFULLY TRIM OUT ANY NICKS. NICKS CAN CAUSE TEARS DURING DONNING AND DOFFING. After trimming the seals, have the user don the suit to determine seal restriction and water-sealing characteristics. Make any additional adjustments to the seal. MUSTANG SURVIVAL/ MSD824 – TWO-PIECE FLOOD RESPONSE SUIT...
-
Page 7: Donning And Doffing
DONNING AND DOFFING DONNING THE SUIT Slide your legs into the bib until your toes reach the end of the socks. Don the suspenders and adjust them for an appropriate fit. Apply talcum powder to the inside of wrist seals before donning the top. - Page 8 Tighten the ankle Velcro® covers to a snug fit. Burp the suit before water entry: cross arms in front and gently slide fingers between the neck seal and your neck, squat down and force excess air through the neck opening. MUSTANG SURVIVAL/ MSD824 – TWO-PIECE FLOOD RESPONSE SUIT...
-
Page 9: Doffing The Suit
DOFFING THE SUIT Remove all equipment worn over the suit. Thoroughly rinse down the exterior of the suit while wearing it, paying special attention to the seals and zippers. Remove all dirt, salt, and debris. Loosen Velcro® waist and ankle adjustment tabs. Separate the Quick-Lock™... -
Page 10: Cleaning And Maintenance
FIGURE 5 FIGURE 4 MOLYKOTE® LOCATIONS WARNING: LUBRICANT IS FOR USE ON RELIEF ZIPPER ONLY. DO NOT USE ON QUICK-LOCK WAIST CLOSURE SYSTEM AS IT MAY COMPROMISE THE WATERTIGHTNESS OF THE SEAL. MUSTANG SURVIVAL/ MSD824 – TWO-PIECE FLOOD RESPONSE SUIT... -
Page 11: Storing The Suit
YKK zippers need to be lubricated on the docking end approximately every 15-20 days of field use. One package of Molykote® Lightning Grease lubricant is included with your suit. Only use the Molykote® Lightning Grease lubricant. DO NOT DISCARD THE BLISTER PACKAGE. LUBRICANT CAN BE STORED IN THE ZIPLOCK BAG AND REUSED a. -
Page 12: Repairs
It is extremely important that damaged suits are handled in accordance with repair requirements. The Two-Piece Flood Response Suit takes advantage of Mustang’s Rapid Repair Technology™ enabling users to self-replace neck and wrist seals and repair small leaks in an hour or less. -
Page 13: Accessories
ACCESSORIES The following accessories are available for your Two-Piece Flood Response Suit: • Neoprene survival hood (part #MA7348) • Plastic YKK AQUASEAL® zipper lubricant (part #MA0094) • Replacement top suit (part #MA0501) • Replacement bottom bib (part #MA0502) For more information on these items, please visit: www.mustangsurvival.com. -
Page 14: Warranty Information
If the product is deemed to be covered under our warranty policy, it will either be repaired or replaced at the sole discretion of Mustang Survival at no charge to the Customer. The only obligation or liability of Mustang Survival under this limited warranty... -
Page 15: Contact
CONTACT For further information concerning this manual or the suit, contact Mustang Survival: Telephone: 1 800 526 0532 Email: custserv@mustangsurvival.com... - Page 16 We build gear that saves lives and fuels exploration. www.mustangsurvival.com DO NOT REMOVE PRIOR TO SALE. MUSTANG SURVIVAL AND SEAHORSE DESIGN ARE ALL REGISTERED TRADEMARKS OF MUSTANG SURVIVAL CORP. HT0824 REV 12MAR2020...
