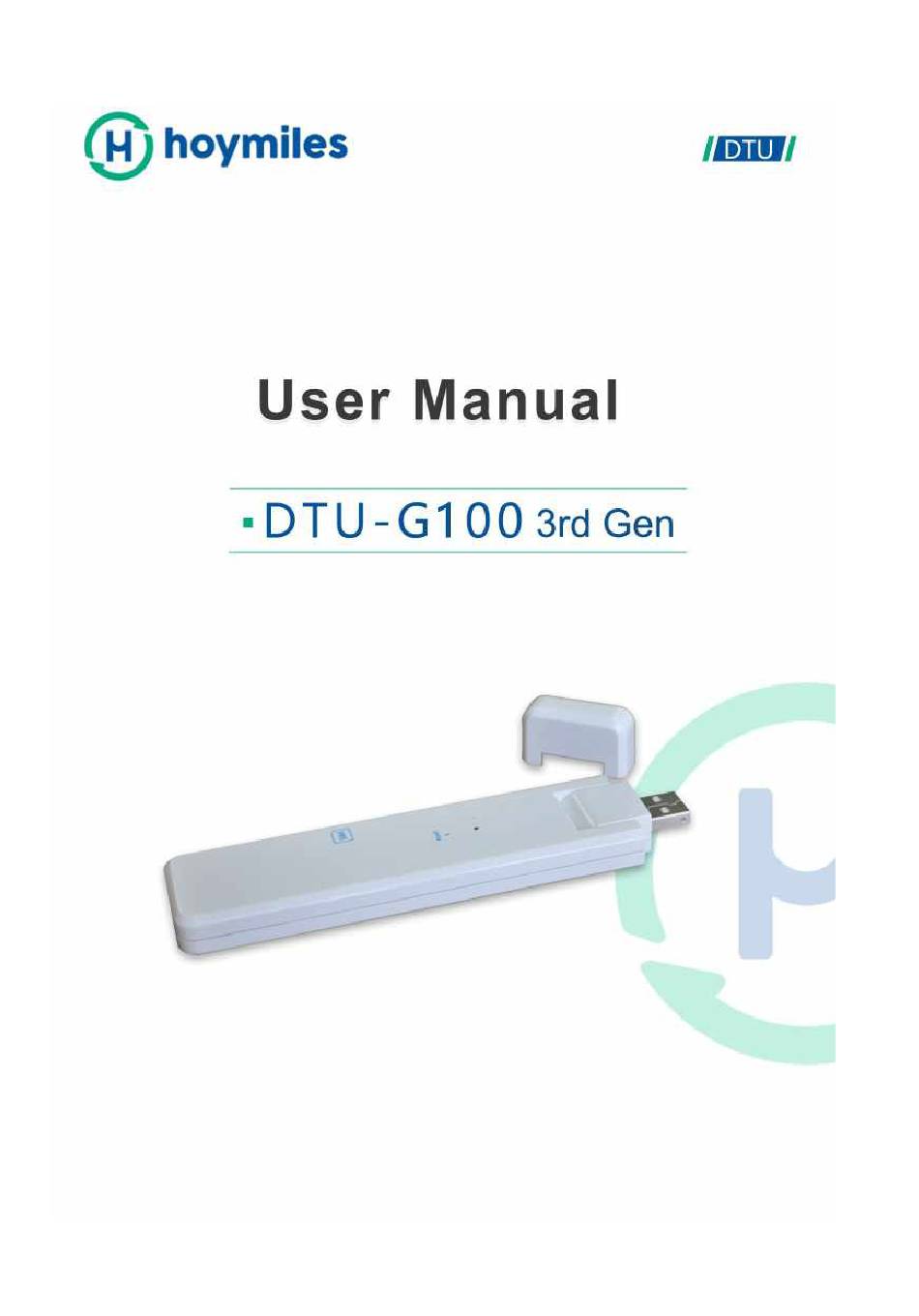

Summary of Contents for Hoymiles DTU-G100
- Page 1 Version 2.1 (August 2020)
-
Page 2: Table Of Contents
Log in your account, browse the web station......................9 8. View Phone APP ..............................10 9. LED indicator working status description ......................10 10. Troubleshooting ..............................11 11. Datasheet ................................11 © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved. -
Page 3: Important Safety Information
Note that only professionals can install or replace DTU. Do not try to repair DTU without Hoymiles’ approval. If DTU is damaged, please send the DTU back to your installer for repairing/replacing. Disassembling DTU without Hoymiles’ approval will invalidate remaining of the warranty period. -
Page 4: Other Information
PV panels and the operation data of the microinverters to the DTU, which is the hardware basis of the panel-level monitoring. With conversion efficiency up to 96.7% and MPPT efficiency up to 99.9%, Hoymiles microinverters rank into the first class of the world’s Microinverter industry. -
Page 5: Dtu Installation

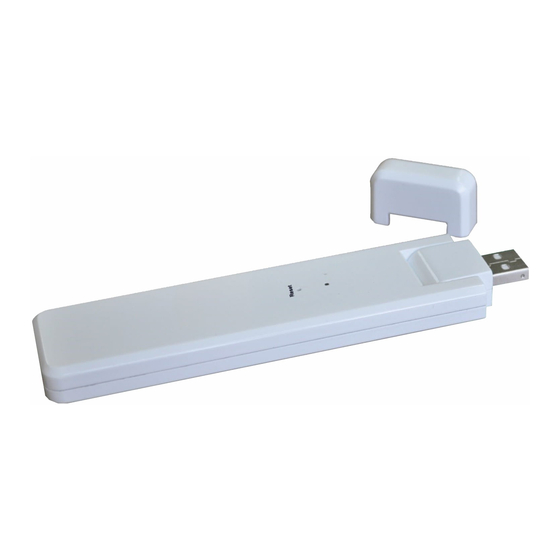

Away from dust, liquid, acidic, or corrosive gas. Temperature is between -20ºC and 55ºC. 3.3 Dimensions 3.4 Interface Layout Item Description USB Connector Status Indicator Reset Bottom SIM Card Slot © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved. -
Page 6: Local Install Assistant
DTU-G100 3 Gen 3.5 Local Install Assistant Local Install Assistant is a new function integrated with DTU-G100 3rd Gen, please download the Installer App (for installer/distributor use only) first. DTU-G100 has improved from the previous generation of DTU product, and developed with this new function that allows installer: A. - Page 7 DTU-G100 3 Gen (2) Locate the DTU The maximum communication distance of Hoymiles DTU is 150m in open space. The walls, roofs, or other obstacles in between will affect the signal and reduce the communication distance in the real installation.
-
Page 8: Site Creation On Hmp
M. Please wait about 30 minutes, the station will show online, and all the MI-IDs are found. 5. Customer Login A. Please download the End User App. You can search “Hoymiles” at the App Store (IOS) or Play Store (Android). -
Page 9: Complete Installation Map
A. Peel the serial number label from the DTU and place it on the installation map. B. Complete system information of the installation map shown below. 7. Browse the Web Station Log in your account, browse the web station. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved. -
Page 10: View Phone App
DTU-G100 3 Gen 8. View Phone APP Download mobile phone APP by search “Hoymiles” at App Store (IOS) or Play Store (Android), log in with customer/installer account name and password, all installed Microinverters operating details will be able to view from there. -
Page 11: Troubleshooting
Mechanical Data Ambient temperature (℃) -20°C to 55°C Size (W×H×D) 143mm×33mm×12.5mm Weight (KG) Mounting system Direct power supply Display LED indicator light Others EN60950 EN61000-3-2 EN61000-3-3 Standard FCC 15B / 15C © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
