Sony SRS-XB01 Reference Manual

Personal Audio
System
Sistema de audio
personal
SRS-XB01
©2018 Sony Corporation
Printed in China
http://www.sony.net/
English Personal Audio System
Before operating the unit, please read this guide thoroughly and retain it for
future reference.
CAUTION
To reduce the risk of fire, do not cover the ventilation opening of the appliance
with newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked flame sources (for example, lighted
candles).
Do not install the appliance in a confined space, such as a bookcase or built-in
cabinet.
Do not expose the batteries (battery pack or batteries installed) to excessive
heat such as sunshine, fire or the like for a long time.
Do not dismantle, open or shred secondary cells or batteries.
In the event of a cell leaking, do not allow the liquid to come in contact with the
skin or eyes. If contact has been made, wash the affected area with copious
amounts of water and seek medical advice.
Do not use any cell or battery which is not designed for use with the equipment.
Secondary cells and batteries need to be charged before use.
After extended periods of storage, it may be necessary to charge and discharge
the cells or batteries several times to obtain maximum performance.
Dispose of properly.
Precautions
On safety
• The nameplate and important information concerning safety are located on
the bottom exterior.
On placement
• Do not set the unit in an inclined position.
• Do not leave the unit in a place subject to high temperatures, such as direct
sunlight, near a heat source or under lighting equipment.
• Do not use or leave the unit in a car.
Others
• Do not use or leave the unit in an extremely cold or hot environment
(temperature outside the range of 5 °C – 35 °C (41 °F – 95 °F)). If the unit is used
or left in outside the above range, the unit may automatically stop to protect
internal circuitry.
• At high temperature, the charging may stop or the volume may reduce to
protect the battery.
• When you find the charge indicator flashing, charge the battery. By charging
the battery after the indicator starts flashing, you can use the battery longer.
• Even if you do not intend to use the unit for a long time, charge the battery to
its full capacity once every 6 months to maintain its performance.
On Copyrights
• Android is a trademark of Google LLC.
• The BLUETOOTH® word mark and logos are registered trademarks owned by
the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is
under license.
• iPhone is a trademark of Apple Inc., registered in the U.S. and other countries.
• Other trademarks and trade names are those of their respective owners.
• ™ and ® marks are omitted in the documents.
Notes on water resistant feature
(Read before using the unit)
Water resistant performance of the unit
This unit has a water resistant specification*
of protection against ingress of water" of the IEC60529 "Ingress Protection
Rating (IP Code)." However, this unit is not completely water-tight.
Do not drop the unit into hot water in a bathtub or purposely use it in water.
4-739-403-82(1)
Reference Guide
Guía de referencia
1 2 3
* of IPX5* as specified in "Degrees
Liquids that the water resistant performance specifications
apply to
Applicable : fresh water, tap water
Not applicable : liquids other than the above (soapy water, water with
detergent or bath agents, shampoo, hot spring water, pool
water, seawater, etc.)
1
* Requires that the cap is fastened securely.
* 2 The supplied accessories and the connectors of this unit (USB/AUDIO IN) are
neither water resistant nor dust proof.
3
* IPX5 (Degree of protection against jets of water): For details, refer to Help
Guide.
The water resistant performance of the unit is based on our measurements
under the conditions herein described. Note that malfunctions as a result of
water immersion caused by misuse by the customer are not covered by the
warranty.
To avoid the deterioration of the water resistant
performance
Check the following and use the unit correctly.
• Be careful not to drop the unit or subject it to mechanical shock. Deformation
or damage may cause deterioration of the water resistant performance.
• This unit does not have a design that is resistant to water pressure. Use of the
unit in a location where high water pressure is applied, such as in the shower,
may cause a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer or any
other appliance on the unit directly. Also, never use the unit in high
temperature locations such as in saunas or near a stove.

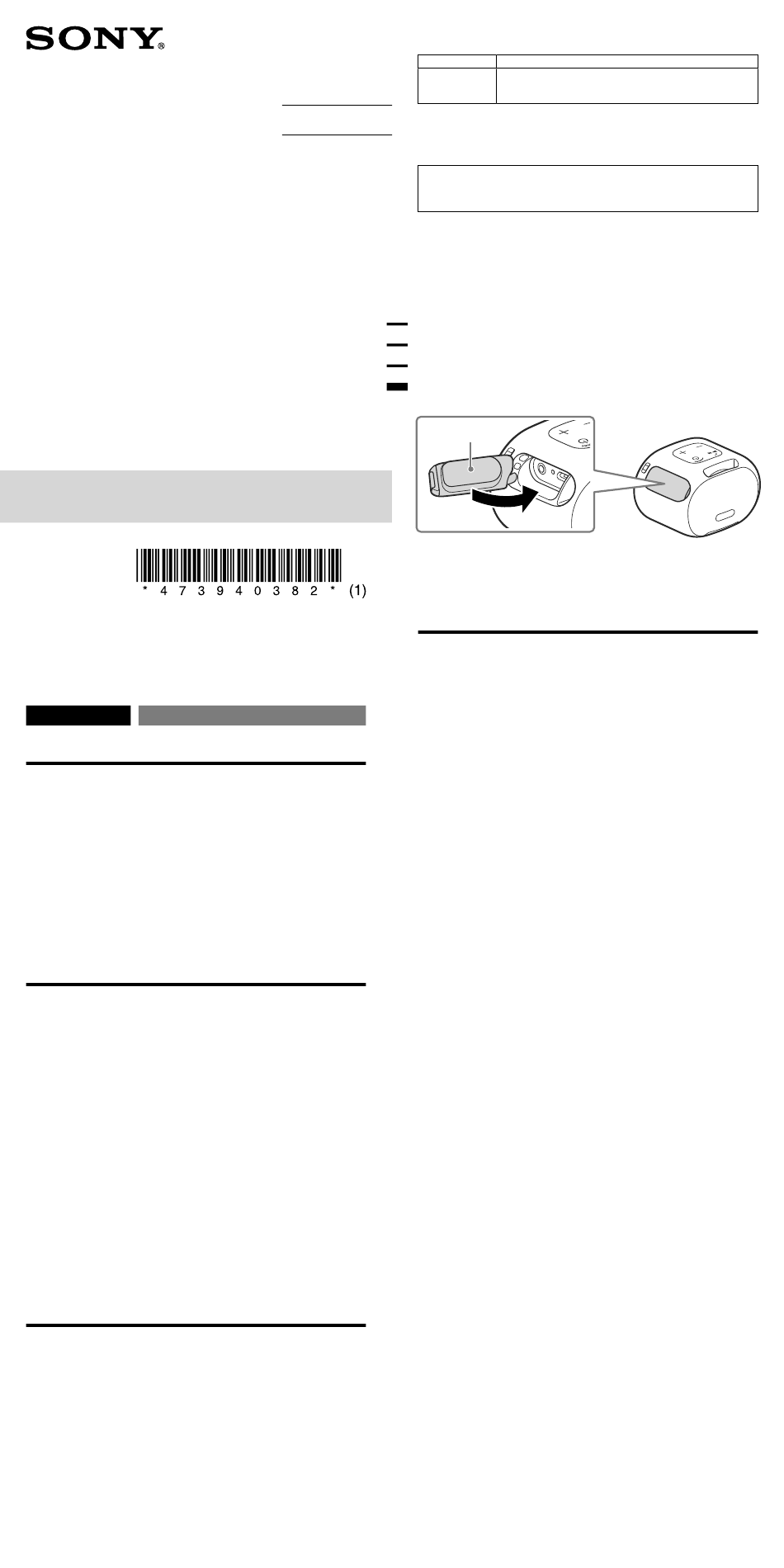

• Handle the cap with care. The cap plays a very important role in maintenance
of the water resistant performance. When using the unit, make sure that the
cap is closed completely. When closing the cap, be careful not to allow foreign
objects inside. If the cap is not closed completely the water resistant
performance may deteriorate and may cause a malfunction of the unit as a
result of water entering the unit.
Cap
How to care for the unit when wet
If the unit gets wet, first remove the water from the unit, and then wipe off the
moisture on the unit using a soft, dry cloth. Especially in cold regions, leaving
moisture on its surface may cause the unit to freeze and malfunction. Be sure to
wipe off the moisture after using the unit.
Put the unit on towel or dry cloth. Then leave it at room temperature and dry
the unit until no moisture remains.
Specifications
Speaker section
Speaker system Approx. 37.5 mm (1
Enclosure type Passive radiator model
BLUETOOTH
Communication System
BLUETOOTH Specification version 4.2
Maximum communication range
Line of sight approx. 10 m (32 ft)*
Frequency band 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation method FHSS
Compatible BLUETOOTH Profiles* 2
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
HSP (Headset Profile)
HFP (Hands-free Profile)
Supported Codec* 3 SBC (Subband Codec)
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency 44.1 kHz)
1
* The actual range will vary depending on factors such as obstacles between
devices, magnetic fields around a microwave oven, static electricity, reception
sensitivity, antenna's performance, operating system, software application, etc.
* 2 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH
communications between devices.
3
* Codec: Audio signal compression and conversion format
Microphone
Type Electret condenser
Directional characteristic
Omni directional
Effective frequency range
200 Hz - 4,000 Hz
General
Input AUDIO IN jack (stereo mini jack)
Power DC 5 V 500 mA (using the USB power supply) or using
built-in Ni-MH battery
Usage life of built-in battery (using the BLUETOOTH connection)
Approx. 6 hours*
If the volume level of the unit is set to maximum, the
usage life will be approx. 3 hours.*
Dimensions (including projecting parts and controls)
Approx. 81.5 mm × 57.5 mm × 56.5 mm
1
(3 / in × 2
4
Mass Approx. 160 g (5.65 oz) including battery
Supplied accessory Micro-USB cable (1), Strap (1)
* 4 When the specific music source is used and the volume level of the unit is set
to 26.
* 5 Time may vary, depending on the temperature or conditions of use.
System requirements for charging battery using USB
Using a USB power supply capable of feeding in DC 5V 0.5 A.
Design and specifications are subject to change without notice.
1
/ in) dia. × 1
2
1
4 5
*
5
3 1
/ in × 2 / in) (w/h/d)
8 4
