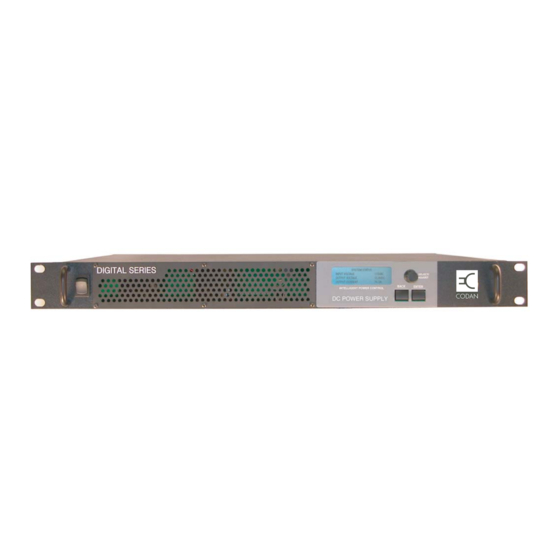

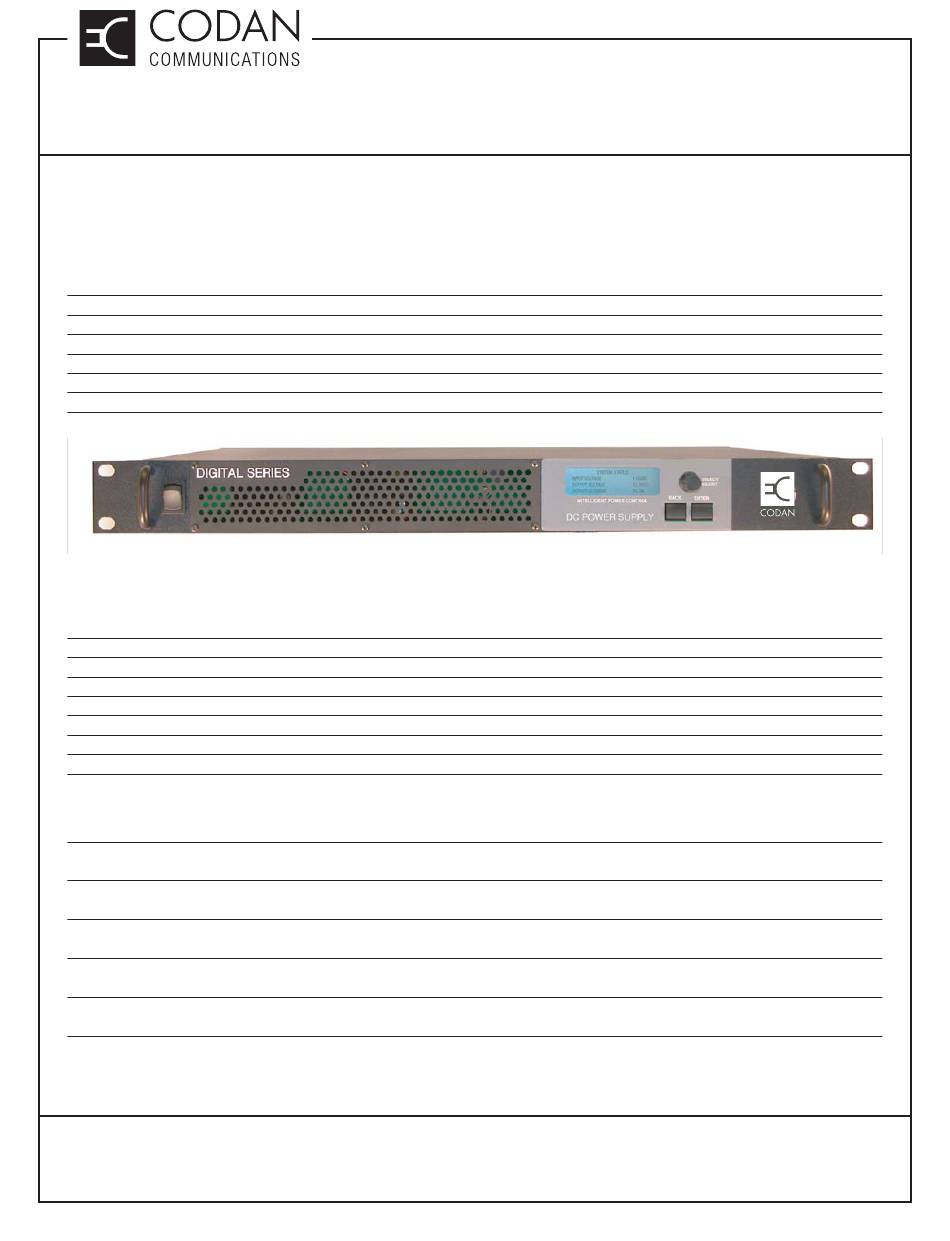

TN836 High Current Digital Series AC to DC Power Supplies
The high current digital series power supplies provide 675 Watts (50 Amps @ +13.8 Vdc) or 1350 Watts (100 Amps
@ +13.8 Vdc) of power and are 19" rack mountable in a 1 RU rack mount chassis and include battery backup
capability.
The digital series power supply may include the following features:
• Front panel control of voltage, current limiting (optionally password protected).
• TCP/IP Ethernet connector for remote monitoring and control of power supply via a built-in web server.
• Battery backup and Low Voltage Disconnect (LVD) with adjustable setpoints.
• Connect up to 6 power supplies in parallel with load sharing control.
• Form C alarm contacts and remote on/off capability.
• Temperature controlled fans (front to rear airfl ow).
Specifi cations
Input Voltage Range
Frequency Range
Output Voltage Range
Continuous Output Current
Operating Temperature Range
Typical Effi ciency
Output Ripple
Models Available
PSA-12-50-R6-31
PSA-12-50-R5-11
PSA-12-50-R5-12
PSA-12-100-R5-11
PSA-12-100-R5-12
TECHNICAL NOTE:
TN836, REV 3-0-0, © Aug 2016
CANADA/US
+1 250 382 8268
100 to 265 Vac (Automatic)
50 / 60 Hz
+12 Vdc (+11.5 - +15.5 Vdc)
50 Amps or 100 Amps @ +12 Vdc (+60°C)
-20°C to +60°C
90% @ 220 Vac
15mV RMS
50 Amps with Battery Backup and Remote / Alarm Connector
(No Front Panel Display / Control and no Ethernet connector).
50 Amps with Battery Backup, Remote / Alarm Connector, Front Panel
Display / Control and Ethernet connector.
50 Amps with Battery Backup, Remote / Alarm Connector, Front Panel
Display / Control (No Ethernet connector).
100 Amps with Battery Backup, Remote / Alarm Connector, Front Panel
Display / Control and Ethernet connector.
100 Amps with Battery Backup, Remote / Alarm Connector, Front Panel
Display / Control (No Ethernet connector).
