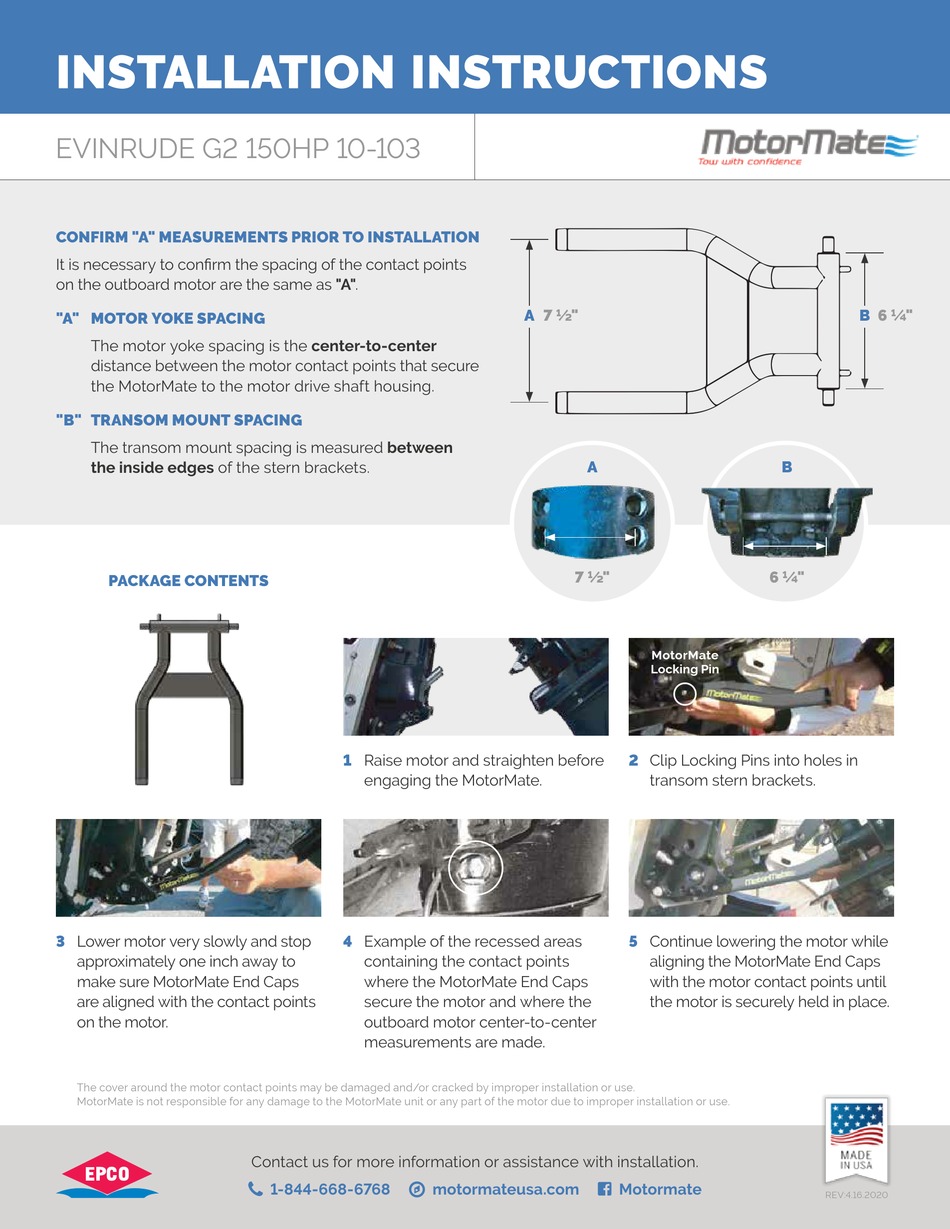

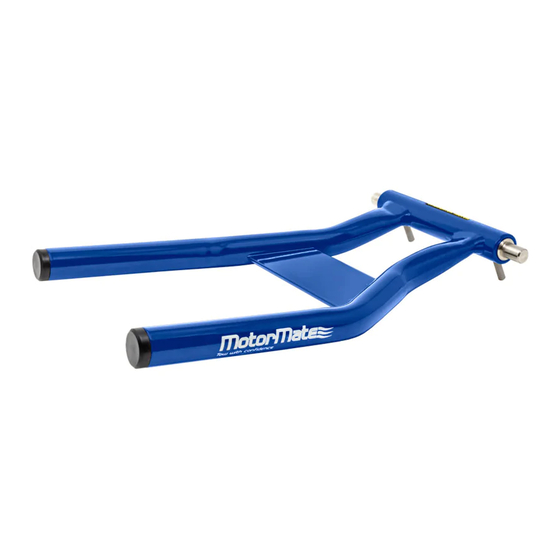

Motormate EVINRUDE G2 150HP 10-103 Installation Instructions

INSTALLATION INSTRUCTIONS
EVINRUDE G2 150HP 10-103
CONFIRM "A" MEASUREMENTS PRIOR TO INSTALLATION
It is necessary to confirm the spacing of the contact points
on the outboard motor are the same as "A".
"A" MOTOR YOKE SPACING
The motor yoke spacing is the center-to-center
distance between the motor contact points that secure
the MotorMate to the motor drive shaft housing.
"B" TRANSOM MOUNT SPACING
The transom mount spacing is measured between
the inside edges of the stern brackets.
PACKAGE CONTENTS
3 Lower motor very slowly and stop
approximately one inch away to
make sure MotorMate End Caps
are aligned with the contact points
on the motor.
The cover around the motor contact points may be damaged and/or cracked by improper installation or use.
MotorMate is not responsible for any damage to the MotorMate unit or any part of the motor due to improper installation or use.
1 Raise motor and straighten before
engaging the MotorMate.
4 Example of the recessed areas
containing the contact points
where the MotorMate End Caps
secure the motor and where the
outboard motor center-to-center
measurements are made.
Contact us for more information or assistance with installation.
 1-844-668-6768 
A 7 ½"
A
7 ½"
motormateusa.com  Motormate
B
6 ¼"
MotorMate
Locking Pin
2 Clip Locking Pins into holes in
transom stern brackets.
5 Continue lowering the motor while
aligning the MotorMate End Caps
with the motor contact points until
the motor is securely held in place.
B 6 ¼"
REV:4.16.2020
