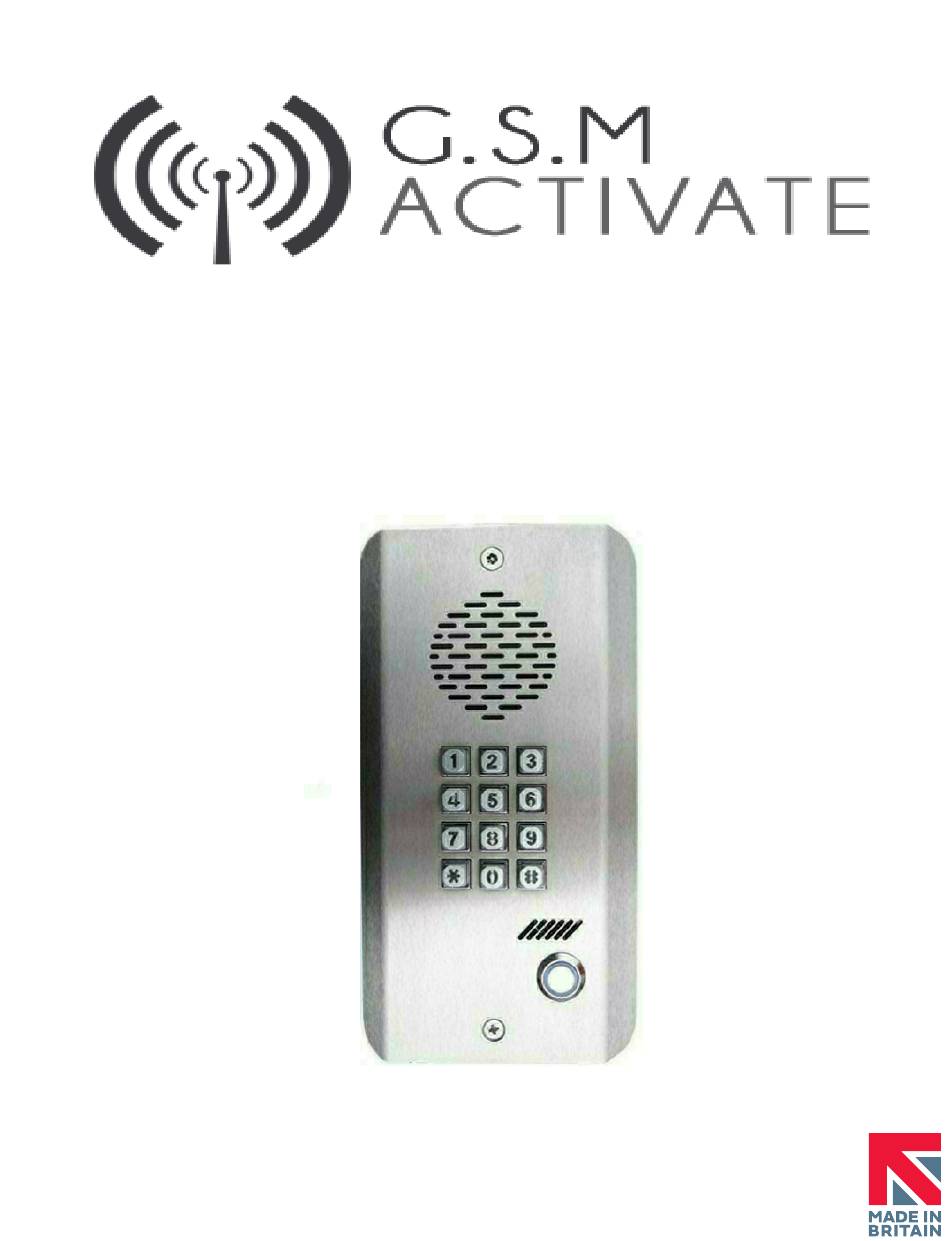

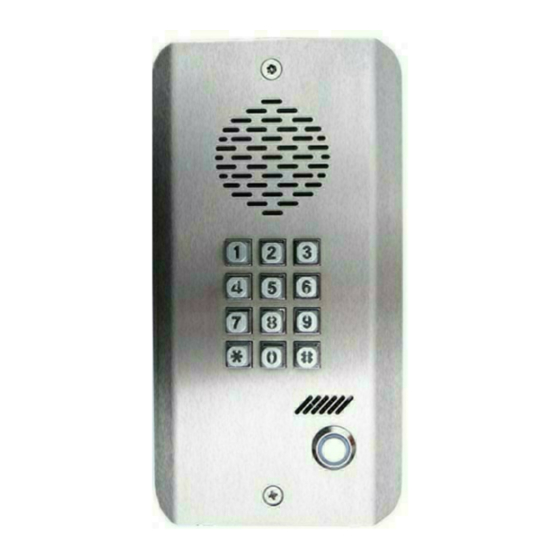

- Page 1 1 BUTTON GSM INTERCOM WITH KEYPAD (3G) Control your gate with your mobile phone www.gsm-activate.co.uk MODEL NUMBER 3GINT1 Page 1...
-
Page 2: Product Information
Product Information The GSM 3G Gate Intercom incorporates a professional industrial grade GSM engine that receives calls at its SIM number, as any ordinary GSM phone. The system operates in the GSM module Quad-band 850/900/1800/1900/2100Mhz and incoporates 3G capabilities.This Intercom works with both 2G and 3G Simcards. When a visitor arrives at your property they will press the call button on the intercom which will then connect to a phone number (up to 2 numbers can be added which will be rung in sequence) of your choosing. - Page 3 Instructions IMPORTANT - PLEASE READ Please ensure that you disconnect the power when you fit the simcard and that you place the simcard with the clipped corner facing outwards. As shown in the picture above. VR1 - Volume (Voice) Adjusts the voice level on the intercom. VR2 - Volume (Keypad) Adjusts the level of sound for keypad and Dial tone.
- Page 4 Installing your simcard New SIM cards will need registering before they can be used. Full details of how this is done can normally be found in the SIM card pack. It will normally require that the SIM card is inserted into a mobile phone, a number dialled and instructions followed.
- Page 5 Programming Intercom Call Button Entry. On the front panel there is 1 intercom call button. Pressing the relative call button will dial the primary and divert number relating to the button number. To programme these numbers you will need to send a text message code which will store the number you want to use in either the primary or divert position for each call button.
- Page 6 Using Intercom Call Button Entry Once the numbers have been programmed for each button, the call buttons are ready to be used. Visitors will press a call button on the intercom. This will then call the stored primary phone number. If the call is not answered it will then try the divert number. When you answer the call you can talk to the visitor at your gate.
- Page 7 Programming Dial to Open Gate Entry (WHL List) (Caller ID) You can open the gate direct from a mobile phone or landline by calling the simcard number. Once you call the number the GSM Intercom will reject the call and take the command to open the gate.
- Page 8 Program Keypad Entry You can open the gate via the keypad with a 4 digit keypad access code. (Up to 50 codes can be stored). The keypad is independent from the rest of the intercom. It does NOT need a signal or even a simcard to work.
-
Page 9: Quick Programming
Quick Programming Intercom entry numbers (call button) To add Primary #PRI=1#07713099514# To delete Primary #PRI=1** To add Divert #DIV=1#07713099514# To delete Divert #DIV=1** Full instructions are on page 6 Call ID (Dial to Open) (whl list) To store white list number #WHL#07713099514# To delete white list number #WHL*07713099514#... - Page 10 Important Installer Notes ● When installing the aerial antenna cable please ensure that the cable leaves the back box by the shortest route possible and is not coiled up left inside the intercom. ● Do not stick the aerial to any metal surface. This will degrade the signal strength received. ●...
- Page 11 Dipswitch Settings 1 ON 2G/3G The intercom will search for a 3G signal at start up. 1 OFF 2G/3G The intercom will search for a 2G signal at start up. 2 ON KEYPAD ADMIN When switched ON you can store or delete keypad access numbers.
-
Page 12: Quick Reference
Quick Reference Send Text Operation Acknowledgmemt Gives a Signal Strength Test Score of 1-30 #PRI=1#07713099514# Stores mobile number as primary no PRI number stored #DIV=1#07713099514# Stores mobile number as divert no Number Stored #PRI=1* Deletes primary number PRI number deleted #DIV=1* Deletes divert number DIV number deleted...
