VM -HF610 Installation Instructions

Questions/Comments:
Visit us at www.vagabondmotorsports.com
Or email sales@vagabondmotorsports.com

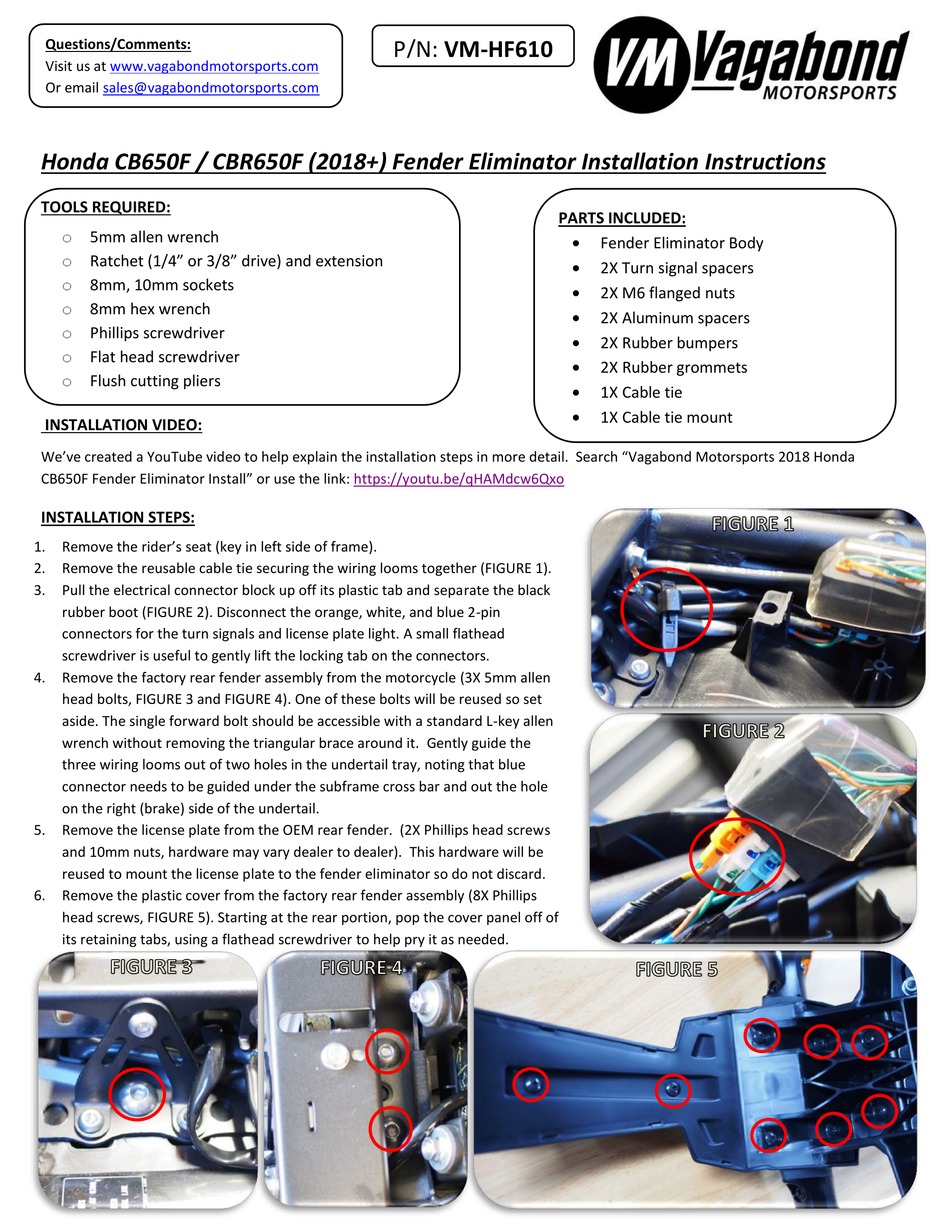

Honda CB650F / CBR650F (2018+) Fender Eliminator Installation Instructions

TOOLS REQUIRED:

o 5mm allen wrench
o Ratchet (1/4" or 3/8" drive) and extension
o 8mm, 10mm sockets
o 8mm hex wrench
o Phillips screwdriver
o Flat head screwdriver
o Flush cutting pliers

INSTALLATION VIDEO:

We've created a YouTube video to help explain the installation steps in more detail. Search "Vagabond Motorsports 2018 Honda
CB650F Fender Eliminator Install" or use the link:

INSTALLATION STEPS:

1. Remove the rider's seat (key in left side of frame).
2. Remove the reusable cable tie securing the wiring looms together (FIGURE 1).
3. Pull the electrical connector block up off its plastic tab and separate the black
rubber boot (FIGURE 2). Disconnect the orange, white, and blue 2-pin
connectors for the turn signals and license plate light. A small flathead
screwdriver is useful to gently lift the locking tab on the connectors.
4. Remove the factory rear fender assembly from the motorcycle (3X 5mm allen
head bolts, FIGURE 3 and FIGURE 4). One of these bolts will be reused so set
aside. The single forward bolt should be accessible with a standard L-key allen
wrench without removing the triangular brace around it. Gently guide the
three wiring looms out of two holes in the undertail tray, noting that blue
connector needs to be guided under the subframe cross bar and out the hole
on the right (brake) side of the undertail.
5. Remove the license plate from the OEM rear fender. (2X Phillips head screws
and 10mm nuts, hardware may vary dealer to dealer). This hardware will be
reused to mount the license plate to the fender eliminator so do not discard.
6. Remove the plastic cover from the factory rear fender assembly (8X Phillips
head screws, FIGURE 5). Starting at the rear portion, pop the cover panel off of
its retaining tabs, using a flathead screwdriver to help pry it as needed.
P/N: VM-HF610
Fender
Eliminator
 1X M4 bolts
(for OEM
KTM
license
plate light)
 2X cable-tie
mounts
 2X cable-tie
mounts
 2X rubber
https://youtu.be/qHAMdcw6Qxo
bumpers
(prevents
license
plate
vibration)
 Fender
Eliminator
 1X M4 bolts
(for OEM
KTM
license
plate light)
 2X cable-tie
mounts
 2X cable-tie
mounts
 2X rubber
bumpers
(prevents
license
plate

PARTS INCLUDED:


Fender Eliminator Body

2X Turn signal spacers

2X M6 flanged nuts

2X Aluminum spacers

2X Rubber bumpers

2X Rubber grommets

1X Cable tie

1X Cable tie mount

1X M4 bolts (for OEM KTM license
plate light)

2X cable-tie mounts

2X cable-tie mounts

2X rubber bumpers (prevents license
plate vibration)

Fender Eliminator

1X M4 bolts (for OEM KTM license
plate light)

2X cable-tie mounts

2X cable-tie mounts

2X rubber bumpers (prevents license
plate vibration)

Fender Eliminator

1X M4 bolts (for OEM KTM license
plate light)

2X cable-tie mounts

2X cable-tie mounts

2X rubber bumpers (prevents license
plate vibration)
