ULTRA SPACE SAVER SQUARED
Installation Instructions
The Ultra Space Saver Squared has several steps for
installation. Note that the single and double sided
setups and parts are different. Make sure you follow the
instructions according to the model you ordered.
Recommended Base Materials:
Solid concrete is the best base material for installation.
Make sure nothing is underneath the base material that
could be damaged by drilling (i.e. post-tension cable).
Use the 3.75" wedge anchors that are included to install
the rack into the concrete (wall anchors are 3").

Installation:

Sort out the parts to the rack and identify each of them
accordingly. The 1" carriage bolts are for assembly of the
rack and the 3.75" wedge anchors are for mounting the
rack to the floor.

Reading your Dero designed layout

Ultra Space Saver Squared come in varying
configurations, making it very important that
you carefully follow the layout provided by Dero
when installing the racks. If you do not follow the
diagram, you may well end up short of parts. The
length of each Ultra Space Saver Squared unit is
indicated by a number ranging from B2-B7 in the
layout. This number corresponds to the length
of crossbeams to be installed. In the example
provided below the Ultra Space Saver Squared
is to be installed starting with two B4 units, which
have 62" crossbeams, followed by a B5, which
has 78" crossbeams.
13'7"
B4 B5
3'
These numbers indicate the number of
arms between brackets for each Ultra
Space Saver Squared unit to be installed.

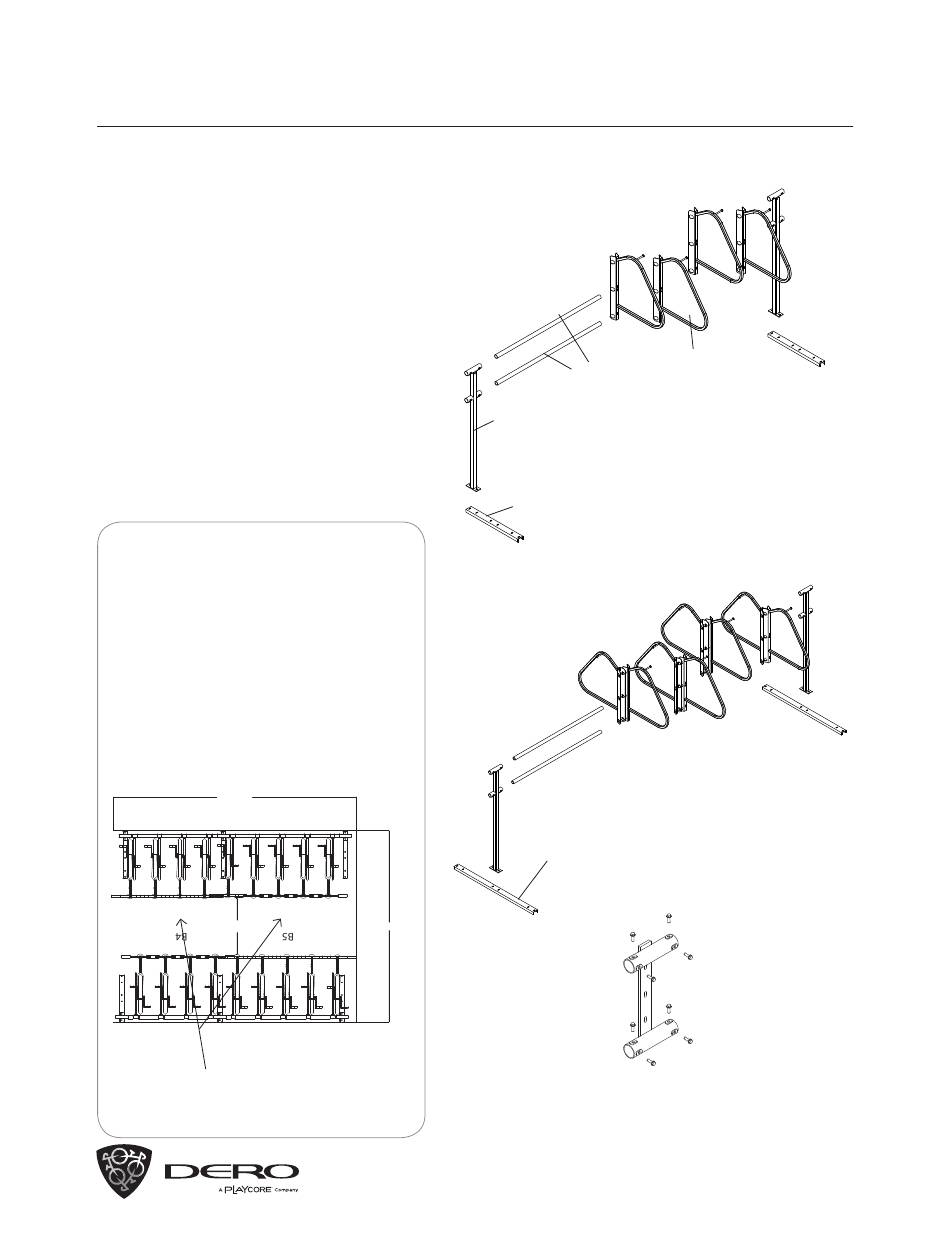

Upright: SS-U
Single Sided Foot: FT30"
Double Sided Foot: SS-DF
10'-3"
www.dero.com | 1-888-337-6729
© 2018 Dero
Hanger Arm: USS-SQ
Crossbeams
30": SS-B2
46": SS-B3
62": SS-B4
Single Sided Parts
78": SS-B5
94": SS-B6
Note: All other part numbers
are the same as the single
sided unit above
Double Sided Parts
Wall Mounting Bracket
(Wall Mounted Only) - SS-W
