Summary of Contents for Lumen 880XHLC-G10

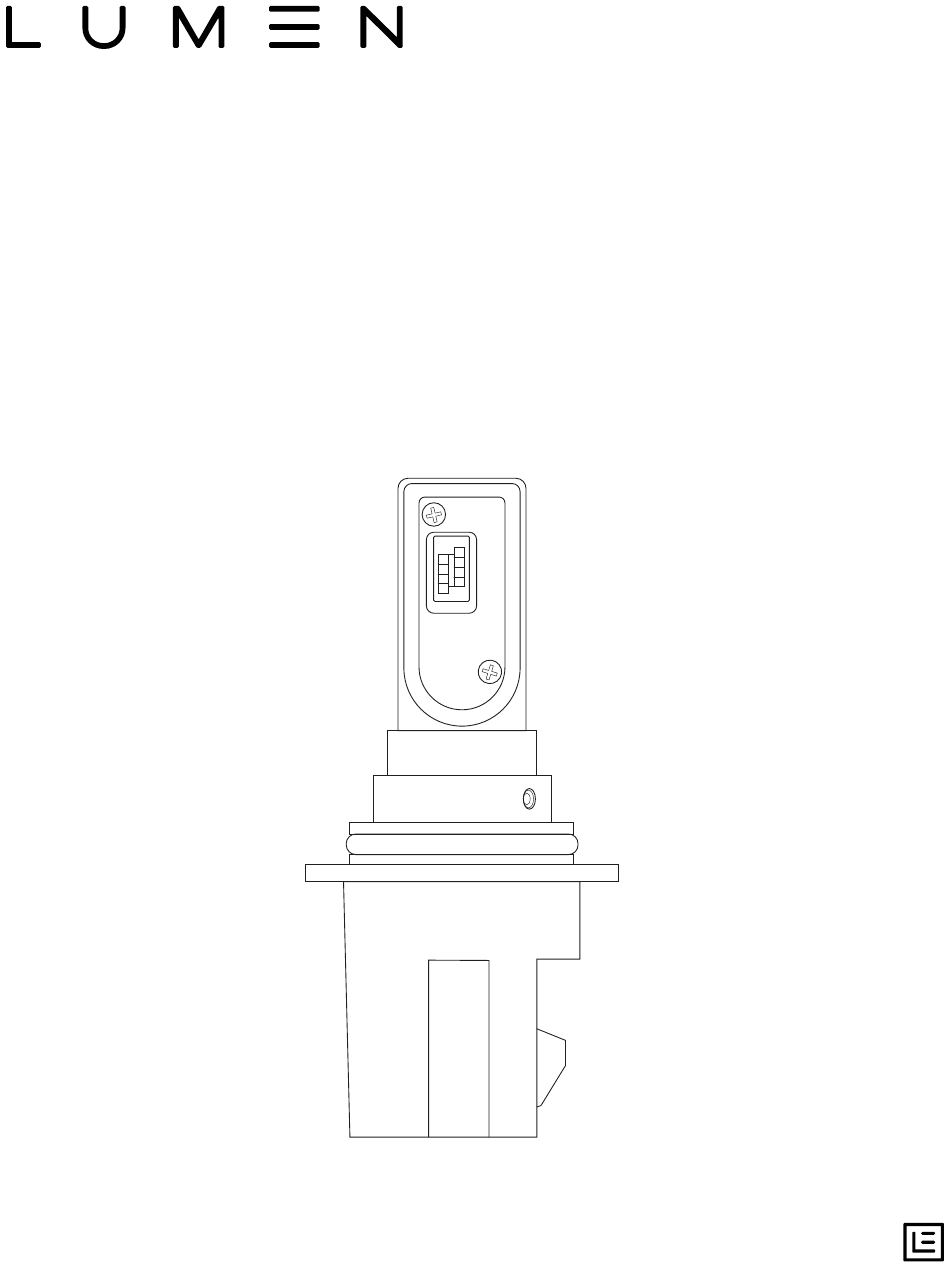

- Page 1 G10 LED Conversion Kit INSTALLATION INSTRUCTIONS 880XHLC-G10, 9004HLC-G10, 9005HLC-G10, 9006HLC-G10, 9007HLC-G10, 9012HLC-G10 GOLFHLC-G10, H11XHLC-G10, H13XHLC-G10, H15XHLC-G10, H1XXHLC-G10, H3XXHLC-G10 H4XXHLC-G10, H7XXHLC-G10, H8XHLC-G10, H9XXHLC-G10...

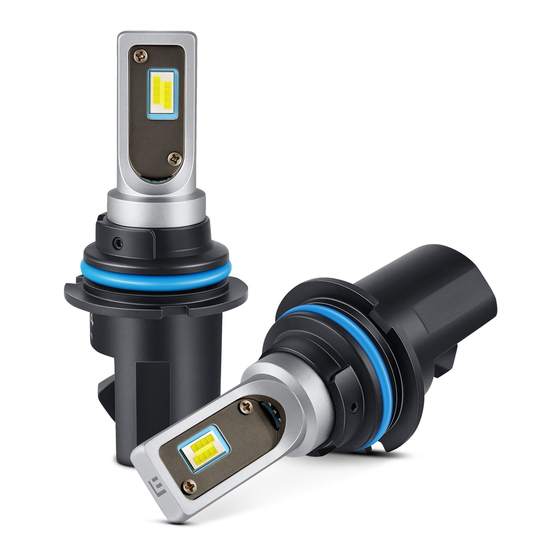

- Page 2 In the box: Two G10 LED conversion bulbs Allen key Adjustment instructions...
- Page 3 STEP 1. Locate your headlamp. STEP 2. If there is a cover on the back of the headlamp, remove the cover. STEP 3. Unplug the bulb in the headlamp, remove the bulb.
- Page 4 STEP 4. Place the new G10 LED conversion bulb in the socket and make sure it is secure.
- Page 5 STEP 5. While looking into the headlamp from the front of the vehicle, ensure the bulb is in the correct orientation according to the adjustment instructions included in the box. STEP 6. If the front of the bulb is not in the correct position, you will need to remove the bulb and adjust it according to the adjustment instructions.
- Page 6 STEP 7. Once the bulb is properly situated, plug the bulb into the headlight harness, and (if your car has a headlamp cover) place the cover back over the back of the headlamp. Make sure the back of the G10 LED bulb does not inhibit the headlamp cover from sealing properly. If the headlamp cover is not seated properly, moisture can develop in your headlamp.
- Page 7 STEP 8. Turn on your headlights and ensure proper operation of bulb on low beam and high beam if applicable. Check out other lights offered in our online store.
