VAR DV-17300 Manual

360° Swivel Head Hand Riveter DV-17300

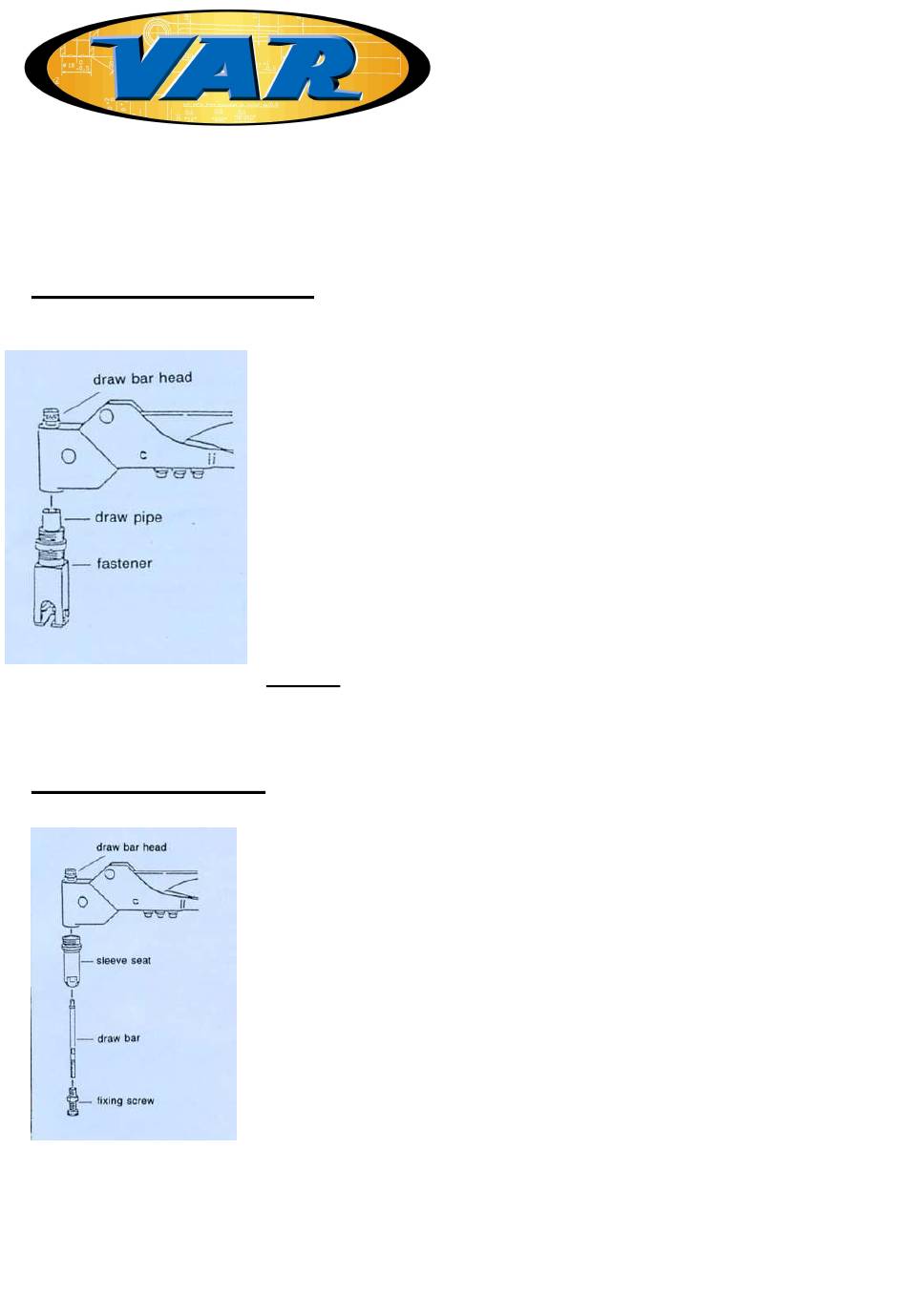

Anchor Riveting Tools:

Nut Riveting Tools:

1/ Drill a hole in workpiece first.
2/ Release the handle.
3/ Replace the anchor you need.
4/ Put the anchor in the fastener and set into hole of the workpiece.
5/ Tighten is the handle. If the anchor not tight enough with the
workpiece, remove the tool and tighten the anchor screw.
6/ Repeat procedure 4&5 until the anchor is tight enough.
7/ Release the handle and remove the tool.
Caution : For fastener assembly fasten the draw pipe first then
fasten the fastener.
1/ Drill a hole in workpiece first.
2/ Replace the draw bar you need.
3/ Release the handle. Fix the draw bar with wrench and fasten fixing
screw.
4/ Fasten the nut to the draw bar and set into hole of the workpiece.
5/ Tighten the handle, if the nut is not tight enough with the
workpiecen just release the handle to fasten the draw bar head, then
tighten the handle again.
6/ Release the handle and draw bar head to makr the nut and draw
bar seperate.And the nut will be inserted in the workpiece.
