Summary of Contents for Trevi VELOCIPTOR ES 85W

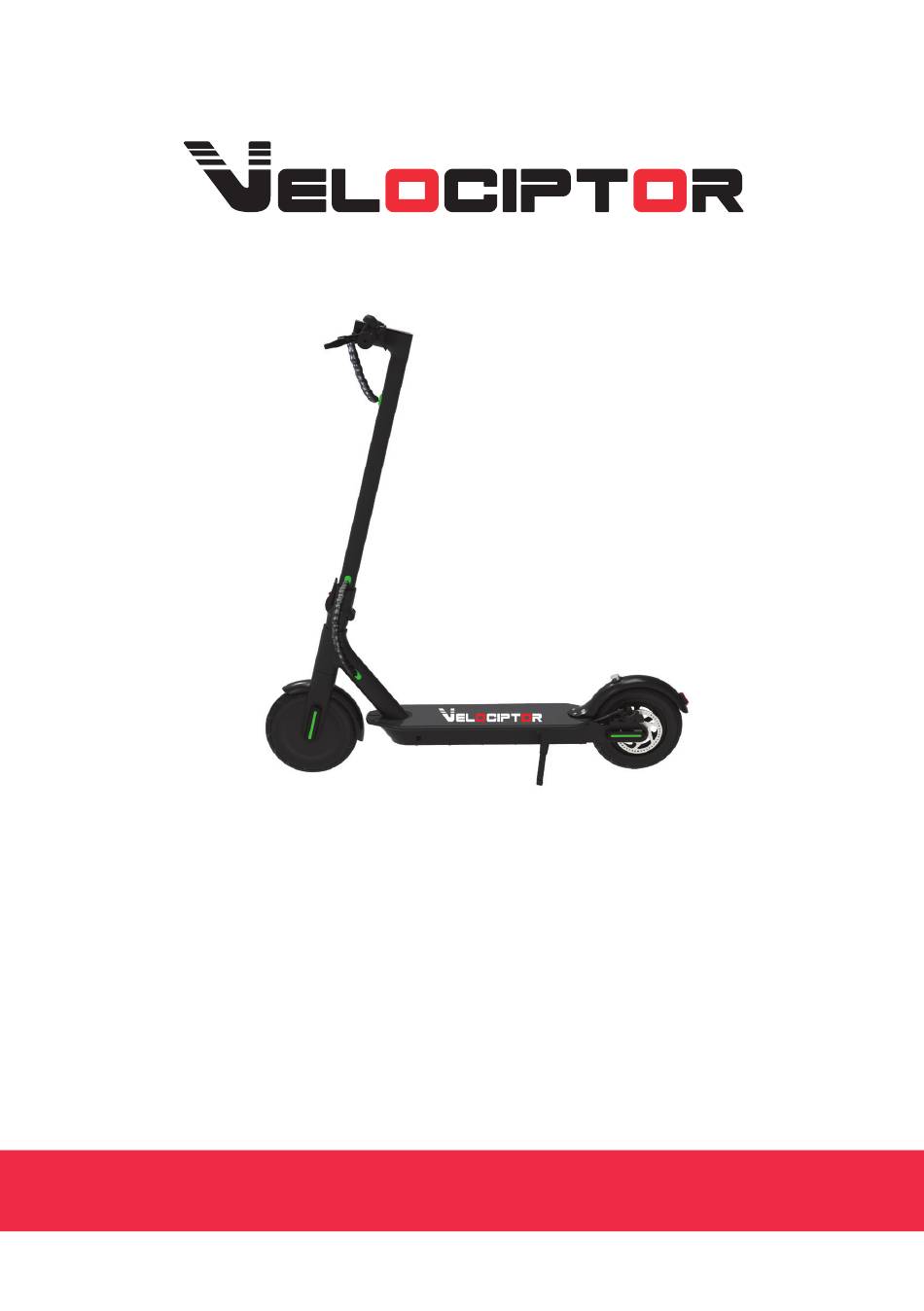

  • Page 1 85w user guide...
  • Page 2 Thank you for purchasing the electric scooter VELOCIPTOR ES 85W Please read the manual before using the product, and keep it in a safe place for future reference.

  • Page 3: Table Of Contents

    Installation of the handlebar ............6 Open and fold the scooter ............7 How to recharge the battery ............8 Autonomy of VELOCIPTOR ES 85W ..........8 Display ................... 9 How to use the scooter ............. 10 Technical specifications ............. 10 Current legislation in Italy ............

  • Page 4: Note On The User Guide

    Note on the user guide This manual provides the user a description of the characteristics and ope- ration. The use of the vehicle is the sole responsibility of the driver who, after rea- ding and understanding this manual, and after asking the seller and / or the manufacturer for any clarifications deemed necessary, considers himself suitable from a psychological and physical point of view to the use of the vehicle.

  • Page 5: Warnings

    • As any means of locomotion, the use of VELOCIPTOR ES 85W carries the risk of injury for those who use it and for other people nearby, due to accidental falls or impacts. It is therefore necessary to always wear adequate protections (such as a bicycle helmet, knee pads, elbow pads) and pay the utmost attention not to damage people and things.

  • Page 6: Installation Of The Handlebar

    Before using VELOCIPTOR ES 85W it is necessary to install the handlebar on the main frame of the vehicle. 1. Insert the handlebar into the vehicle frame; 2. After matching the holes in the handlebar with those in the frame, insert the screws and tighten them well;...

  • Page 7: Open And Fold The Scooter

    OPEN AND FOLD THE SCOOTER How to fold VELOCIPTOR ES 85W 1. Release the release lever located on the lower part of the handlebar support tube, pressing the release button and pulling the hook outwards; 2. Fully open the release lever, bringing it to 90 ° with respect to the support tube;...

  • Page 8: How To Recharge The Battery

    AutonomY OF VELOCIPTOR ES 85W The maximum distance that can be traveled with a single battery charge is approximately 20 km. However, this value must be considered indicative since it can be influenced by numerous factors.

  • Page 9: Display

    To turn on and off, press the button for about five (5s) seconds. Turn on the front and rear LED light VELOCIPTOR ES 85W is equipped with front and rear LED lights. Press the power button to turn on / off both LED lights. Note: the front LED has a whi- te light while the rear LED has a steady red light.

  • Page 10: How To Use The Scooter

    HOW TO USE THE SCOOTER First of all, it is advisable to adjust the rear disc brake, tightening it or ma- king it softer, according to your driving style. Start the engine by pressing the ignition button. Get on the scooter and make sure the stand is in the closed position; act gently on the accelerator lever to start the electric motor.

  • Page 11: Current Legislation In Italy

    CURRENT LEGISLATION IN IT ALY With the decree n. 229 of June 4, the Italian Ministry of Transport introdu- ced the experimentation of road circulation of mainly electric propulsion vehicles, such as electric scooters, monowheels, segways and hoverboards. The experimentation contemplates that the circulation in the city is possible only in the pedestrian areas, on pedestrian and cycle paths, on cycle paths in the own seat and on the reserved lane, areas at 30 Km / h and roads with speed limit of 30 km / h;...

  • Page 12: Information To Users Of Household Appliances

    Information to users ABOUT household appliances pursuant to Legislative Decree No. 49 of March 14, 2014 “Implementa- tion of Directive 2012/19 / EU on waste electrical and electronic equi- pment (WEEE)”. The crossed-out wheeled bin symbol shown on the equipment indicates that the product at the end of its useful life must be collected separately from other waste.
  • Page 13 Trevi S.p.a. Technical assistance Via Raibano 40, 47853 Coriano (Rimini) Italia Tel.: +39 0541 694839 | Web: www.velociptor.it The complete Declaration of Conformity is available at: Trevi S.p.a. Strada Consolare Rimini - San Marino 62, 47924 Rimini (RN) Italia www.velociptor.it...

  • Page 14: Warranty

    2. In the event of equipment failure, the purchaser may request assistance contact the retailer where you purchased the product or: Trevi center Technical Assistance, Via Raibano 40, 47853 Coriano (Rimini) Italy Tel. +39 0541 694839 | Web: www.velociptor.it 3. In order for the warranty to be valid, the purchaser must show to the retailer or to...
  • Page 15 WARRANTY The recognition of direct and indirect damages of any nature to persons and things deriving directly or indirectly from one or more causes of exclusion mentioned in this paragraph is also excluded. 5. The mere authorization to send the product to the service center does not imply that the defect has been recognized as covered by the warranty with consequent free repair of the product.
  • Page 16 Made in China by Trevi S.p.A.
