Summary of Contents for Electro Industries/GaugeTech Shark MP200

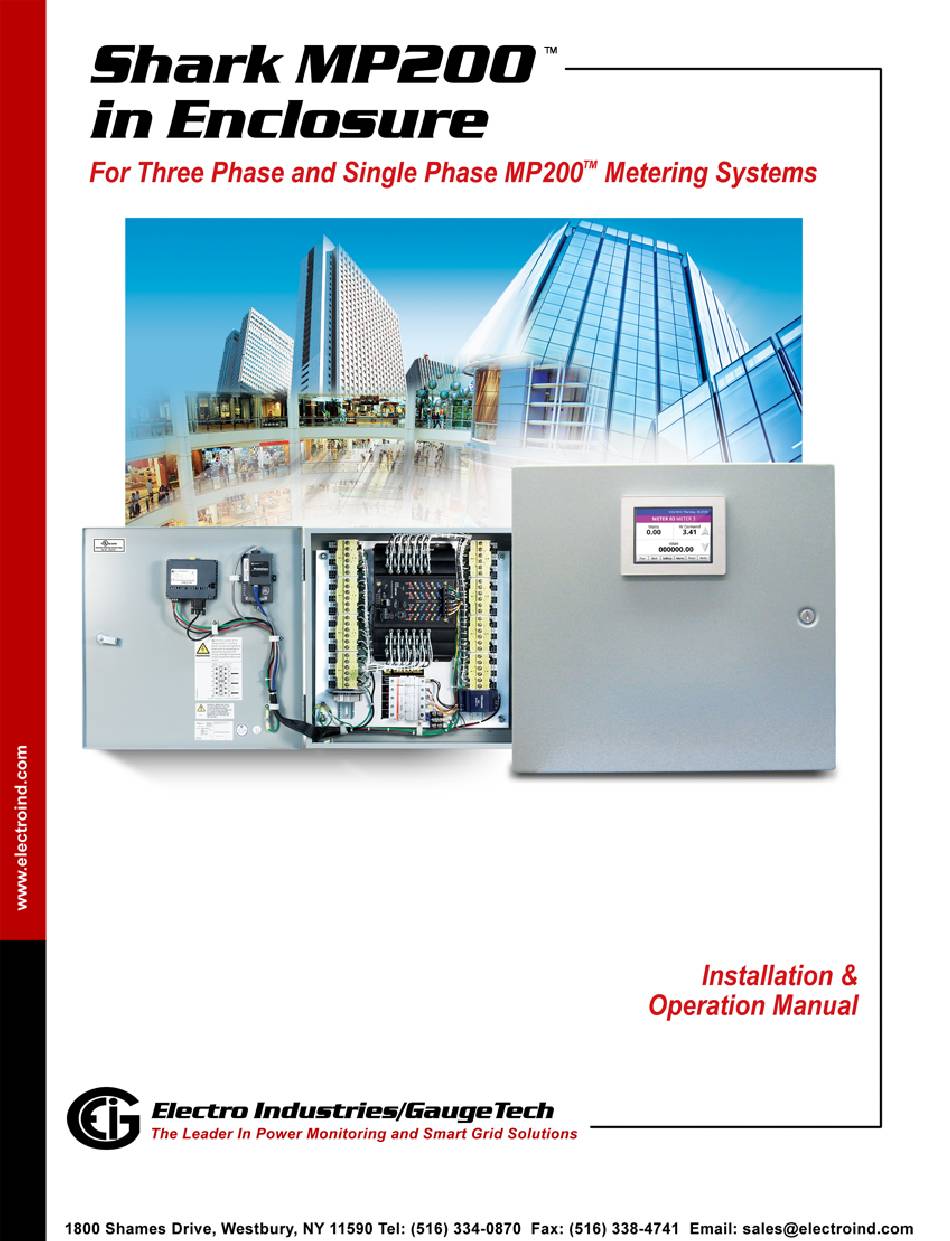

  • Page 1 V.1.07 June 24, 2019...
  • Page 2 This page intentionally left blank.
  • Page 3 Electro Industries/GaugeTech. © 2019 Electro Industries/GaugeTech Shark® is a registered trademark of Electro Industries/GaugeTech. The distinctive shapes, styles and overall appearances of all Shark® meters are trademarks of Electro Industries/GaugeTech. MP200 is a trademark of Electro Industries/Gauge- Tech.
  • Page 4: Product Warranty

    516-334-0870 or fax 516-338-4741. Product Warranty Electro Industries/GaugeTech warrants all products to be free from defects in material and workmanship for a period of four years from the date of shipment. During the warranty period, we will, at our option, either repair or replace any product that proves to be defective.
  • Page 5: Use Of Product For Protection

    Statement of Calibration Our instruments are inspected and tested in accordance with specifications published by Electro Industries/GaugeTech. The accuracy and a calibration of our instruments are traceable to the National Institute of Standards and Technology through equipment that is calibrated at planned intervals by comparison to certified standards.
  • Page 6: About Electro Industries/Gaugetech (Eig)

    GaugeTech changed the face of power monitoring forever with its first breakthrough innovation: an affordable, easy-to-use AC power meter. More than forty years since its founding, Electro Industries/GaugeTech, the leader in power monitoring and control, continues to revolutionize the industry with the highest quality, cutting edge power monitoring and control technology on the market today.
  • Page 7: Table Of Contents

    Table of Contents Customer Service and Support Product Warranty Use of Product for Protection Statement of Calibration Disclaimer Symbols Used in This Manual About Electro Industries/GaugeTech (EIG) 1: Introduction 1.1: Product Handling 1.2: Safety Precautions 1.3: Storage 1.4: Compliance 2: Installation 2.1: Installation Step 1 - Unpack the Enclosure...
  • Page 8 4.2: Troubleshooting 5. Maintenance A. Removing a Meter from Service A.1: Removing the Meter A.2: Reinstalling the Meter Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 TOC-2 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 9: 1: Introduction

    EIG. All claims should be as specific as possible and include general order numbers. You will find a plastic bag of instruction booklets and/or CDs in the shipping container. Store these documents in a safe place. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 10: Safety Precautions

    If further information is desired by purchaser regarding a particular installation, operation, or maintenance of particular equipment, contact an Electro Industries/GaugeTech (EIG) representative. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 11: Storage

    The temperature rating for enclosure storage is (-20 to +60) C/(-4 to +140) 1.4: Compliance UL / cUL Listed, UL508A, File number: E358101. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 12 1:Introduction This page intentionally left blank. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 13: 2: Installation

    AVERTISSEMENT! Attention extrême lors de la monture de l'enceinte et lors de la mise à terre pour prévenir les articules métalliques, remplissage et autre contaminant de l'entrée de l'enceinte qui peuvent provoquer une condition dangereuse de l'équipe- ment. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 14 The display is shipped separately in order to protect it from being damaged during shipping. Instructions for the enclosure begin on the next page. Section 2.4 contains instructions for mounting the display. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 15 • I: Hole for mounting the display • J: If ordered, optional Add-on Protocol - ProtoCom/ProtoCom-Lon Figure 2.1: MP200 in Enclosure as Shipped Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 16: Installation Step 2 - Drill The Wiring Holes

    1” [25.40mm] from the front of the enclosure, 1.5” [38.10mm] from the right side of the enclosure, 1.5” [38.10mm] from the back of the enclosure, and 3.75” [95.25mm] from the left side of the enclosure. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701...
  • Page 17 2. Drill the pilot hole from the outside and do not let the drill pass more than ¼" into the enclosure. 3. Remove the tape, magnet, and cuttings and punch the hole. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 18 Bare holes shall not be used. NOTE: The panel can be removed to facilitate drilling of wiring holes. See the follow- ing procedure. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 19: 1: Removing And Reinstalling The Panel

    Drill the wiring holes per the instructions in Section 2.2. You can then re-install the panel. 1. Place the panel on the four mounting studs in the enclosure and install and tighten a nut on each of the studs (K). Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 20 5. If the MP200 in enclosure is equipped with a ProtoCom/ProtoCom-Lon, attach all connections to it (I). Continue to Section 2.3 to mount the enclosure. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 21: Installation Step 3 - Mount The Enclosure

    Refer to the following diagrams for the enclosure dimensions. 516.19 mm 20.32 in 517.91 mm 20.39 in Figure 2.5: Enclosure Front Dimensions Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 22 185.67 mm 7.31 in 166.31 mm 6.54 in 508.00 mm 20.00 in Figure 2.6: Enclosure Side Dimensions Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 2-10 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 23 2: Installation 508.00 mm 20.00 in Figure 2.7: Enclosure Top Dimensions Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 2-11 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 24 0.25". 5. Install upper mounting screws; leave a 3/8" gap between the screw head and the mounting surface. 6. Lift the enclosure and hang it from the top two bolts. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 2-12 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 25 Bottom mounting screws Figure 2.9: Location of Mounting Screws 10. Fold back the CT wiring labels in the upper right and left corners of the enclosure (see figure above) and tighten the upper two mounting fasteners. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 2-13...
  • Page 26: Installation Step 4 - Install The Display

    If you are mounting remotely, cover up the display mounting hole that is in the enclosure cover. Follow the instructions beginning on the next page to mount the display in the enclosure front cover. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 2-14...
  • Page 27 • Panel with cutout (8) • Display installation nut (7) • Anti-rotation Tee (5) • Rear module, containing the electronics to run the display (2) Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 2-15 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 28 4. Place the display installation nut on the portion of the display passing through the panel and “finger tighten” it. 5. Using the socket wrench supplied [6], tighten the display installation nut (7) with a torque between 1.2 and 1 Nm (10.6 to 17.7 in-lb). Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 2-16...
  • Page 29 6. Carefully insert the rear module (2), with the yellow button to the top of the enclosure, and push the rear module until it locks into place. When it is in place you will hear a "click.” 7. Connect the cable to the rear module: see Figure 2-1. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 2-17...
  • Page 30: Installation Step 5 - Lock The Enclosure

    2. Remove the key and store it in a safe place. When you want to open the enclosure, put the key in the lock and turn it counter-clockwise. Repeat step 1 to re-lock the enclosure. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701...
  • Page 31: Electrical Wiring

    * NOTE: All wires shall be rated 90 C/194 F Minimum; use copper conductors only. Short circuit current rating is 10kA rms symmetrical. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 32: Wiring Instructions

    AVERTISSEMENT! Branchez d'abord la mise à la terre comme indiqué dans le dessin ci-dessous. Earth Ground Figure 3.1: Earth Ground Connection Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 33 PRÉSENTE QUI PEUT PROVOQUER DES BLESSURES GRAVES POU LA MORT. METTRE HORS TENSION TOUS LES CONDUCTEURS AVANT DE COMMENCER LA RÉALISATION D'UNE ACTIVITÉ DE CÂBLAGE DANS L'ENCEINTE DE L'ASSEMBLAGE MP200 Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 34 UNIT POWER L + TO MP200 VOLTAGE/ POWER INPUTS LOAD Figure 3.2: MP200-Y Three Phase Wiring Diagram Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 35 UNIT POWER L + TO MP200 VOLTAGE/ POWER INPUTS LOAD Figure 3.3: MP200-S Single Phase 2 Wire Wiring Diagram Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 36 UNIT POWER L + TO MP200 VOLTAGE/ POWER INPUTS LOADS Figure 3.4: MP200-S Single-Phase 3 Wire Wiring Diagram Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 37: 4: Operation

    <2 Ohms. 2. With the unit fully powered, measure the voltage on the input side and output side of the fuse. The voltages should differ by less than 1 Volt. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701...
  • Page 38 4: Operation This page intentionally left blank. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 39: Maintenance

    If you ever need to remove the meter from service, refer to Appendix A. Removing a Meter from Service, on page A-1. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 40 5: Maintenance This page intentionally left blank. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 41 Power Supply, Mounting Hardware) 8. Add-on Protocol X - No Add-on Protocol ProtoCom - BACnet Protocol ProtoCom-Lon - LonWorks Protocol Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 42 Example above: ENCSMP200-Y-60-10-V2-X-MDSN-ProtoCom (MP200-Y Metering System, with 60Hz frequency, Current Class 10, V-2 V-Switch™ key, RS485 only, MDSN 3.5” Touch Screen HMI Display, and ProtoCom converter) Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 43: Removing A Meter From Service

    WARNING! The screws need to be screwed down until the screw makes contact with the internal bar, enabling the bar to become electrically common with the terminal strip, and grounded. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 44 à la terre. The figure below shows where the screws are located that must be tightened down to short the CTs. Figure A.1: CT/Shorting Block Location Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 45 AVERTISSEMENT! Lorsque vous réinstallez le compteur, assurez-vous que toutes les con- nexions de TC (transformateur de courant) sont faites AVANT de dévisser les vis de court- circuit. Voir la section A.2. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 46 A: Removing a Meter from Service Mounting Screws - 4 locations Figure A.3: MP200-Y in Enclosure Location of Fuses, Current Leads, Connectors, Mounting Screws Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 47 6. Disconnect all connectors to the meter. 7. Remove the 4 mounting screws securing the MP200 to the panel. 8. Remove the meter. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 48: A.2: Reinstalling The Meter

    Figure A.5: Un-shorting the CTs 7. Verify that no foreign material remains inside the enclosure: clean it out if found. 8. Energize all circuits and verify operation. Electro Industries/GaugeTech Electro Industries/GaugeTech E180701 The Leader In Power Monitoring and Smart Grid Solutions...
