CE700 Wireless Charging Stand FAQ:
1.
If I just place a wireless charging cellphone on the CE700, will it automatically
start charging?
Check your phone's manual to confirm the phone's effective range (Rx) and
make sure that its wireless charging induction field is placed within the CE700's

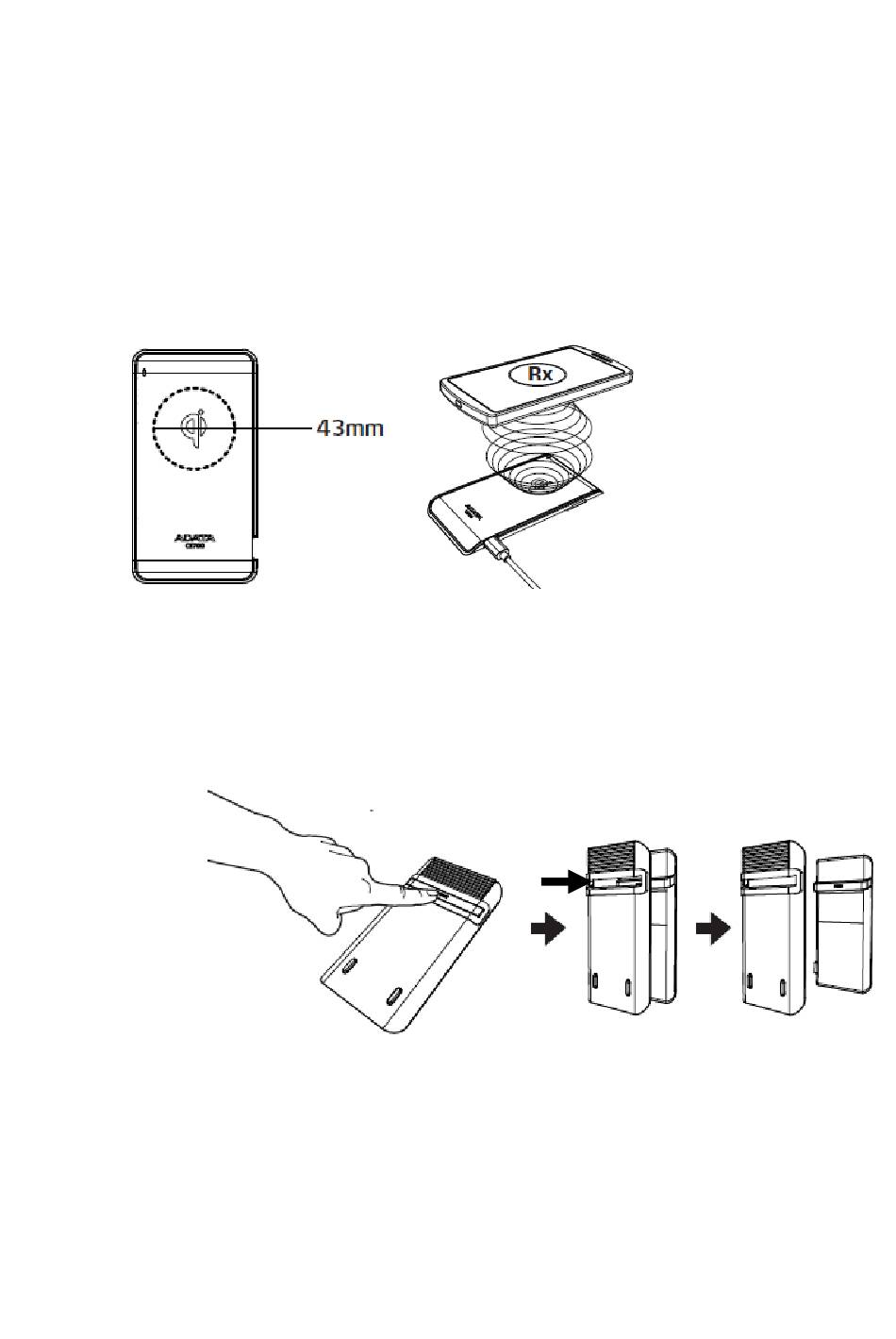

effective charging range (Tx) (Refer to circle in the figure below for optimum
charging position). Correct positioning will result in the best charging effect.
2.
How to use the CE700 as a vertical charger
i.
Step A: Push the slat that reads "Push" so that the upper and lower
covers separate.
ii.
Step B:
With the Qi logo on the wireless charging pad upper cover facing forward,
insert the upper cover into the rubber slot with the rubber mat on the
same side as the logo
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Adata CE700
Summary of Contents for Adata CE700
- Page 1 CE700 Wireless Charging Stand FAQ: If I just place a wireless charging cellphone on the CE700, will it automatically start charging? Check your phone’s manual to confirm the phone’s effective range (Rx) and make sure that its wireless charging induction field is placed within the CE700’s effective charging range (Tx) (Refer to circle in the figure below for optimum charging position).
- Page 2 Confirm that the metal cover plate is in flat contact with the charging cover and that the bases are level, in order to maintain the charging stand stability. Connect the CE700 to the USB cable, and connect to the power...
- Page 3 Place the phone's induction zone (Rx) on the induction zone (Tx) of the CE700. If the phone is larger than 5.5 inches, it is suggested to place the phone horizontally when using upright charging mode, in order to maintain alignment and stability.
- Page 4 Make sure the phone is compatible with the Qi wireless charging specification, and check that the CE700 LED is on. If it is off, that means that CE700 is not receiving power. Check the power supply. If the LED indicator is constant red or flashing red, check the area between the CE700 and the phone for foreign object.
- Page 5 failure. Make sure the charging zone (Tx) / Phone (Rx) are correctly aligned. NOTE B-2: When the LED displays a yellow light, it indicates the CE100 is in a low-power charge mode. Either the input power is insufficient, or the charging zone (Tx) / Phone (Rx) alignment is offset, so that the charging time will be longer than normal.
