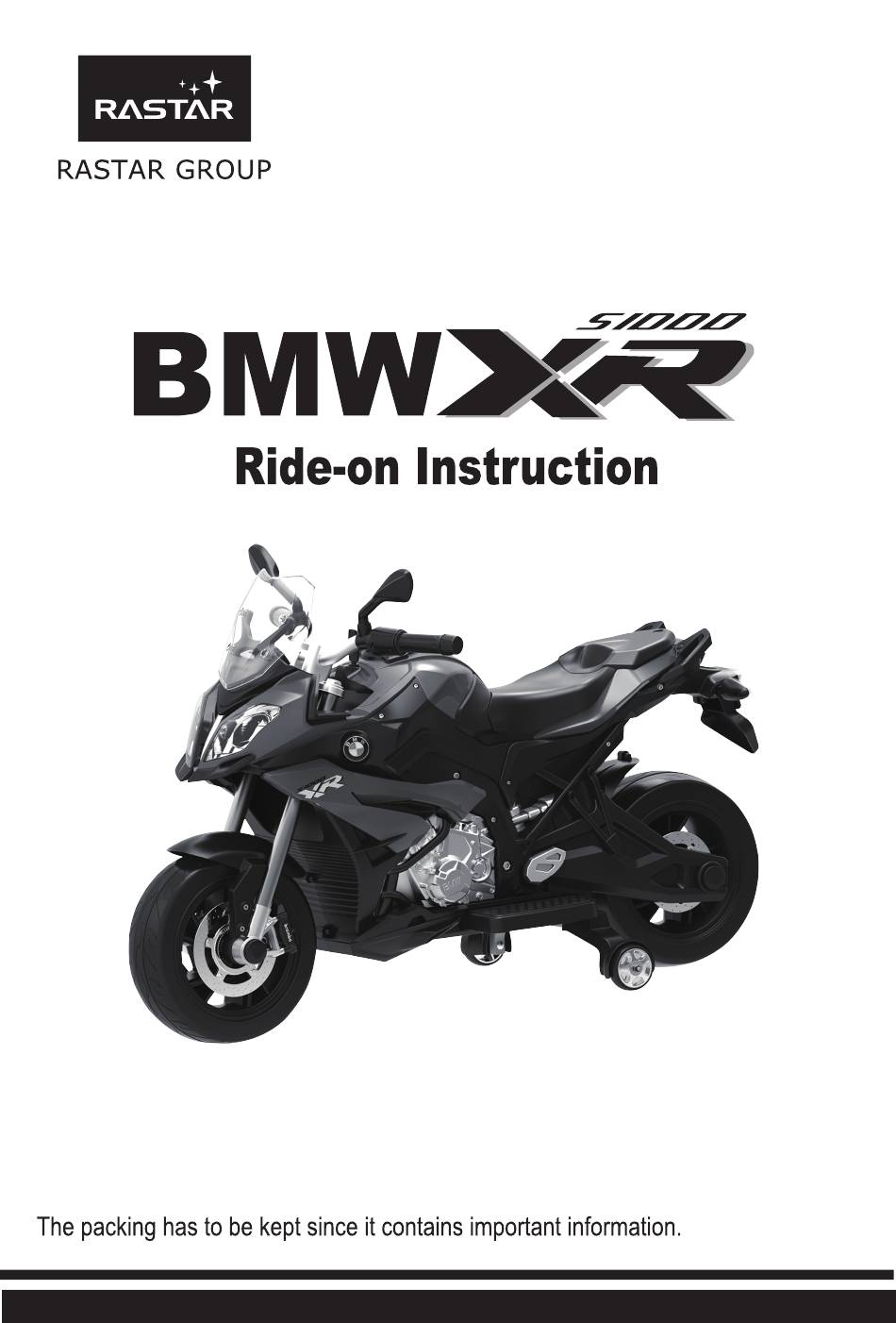

Summary of Contents for rastar BMW XR S1000
- Page 2 The BMW logo and the BMW wordmark are trademarks of BMW AG and are used under License. Http://www.rastar.com 08.06.877000.000260...
- Page 3 Frequency bands: 2400MHz to 2483.5MHz Maximum Transmitting Power (EIRP) : Not more than 10mW.
- Page 4 The product configuration functions include one-key startup, forward gear, stop, backward gear, safety brake, left turn light and right turn light, head light, rear brake light, sound and AUX socket. The instructions are applicable for the following model products: Solid color style Configured driving function Electric vehicle, BMW Supported foot brake...
- Page 5 (102x31x57)cm 12.2kg (0-4) km/hour (infinitely variable speed) 12V 7Ah lead-acid Input:AC100-240V 50Hz/60Hz Output:DC15V 1000mA Rear license plate 1 Piece 2 sets Balanced 1 set Battery 1 Piece wheel set Left and 1 set right pedals Charger 1 Piece Vehicle body 1 Piece M4 screw 6 Piece...
- Page 7 1.Installment of the left and right pedals The equipped left and right pedals (accessory 11) are installed and tightly plugged along the card slot (as shown in the Figure 1) to the Left pedal designated position (as shown in Figure 2) of body pedal (as shown in Figure 1) 2.Installation of balanced wheel set at the bottom...
-
Page 8: Assembly Completion
4. Installation of windscreen The configured windscreen (accessory 8) is taken and the screw hole (as shown in the figure 8) under it is aligned with two screws of vehicle head, and then configured screw (accessory 4(M4x12PB)) is ８ applied for successive locking (as shown in the figure 5). -
Page 9: Battery Replacement
BATTERY REPLACEMENT 1.Notes to battery replacement The seat cover is disassembled. The Battery casting male connector and female connector component screw are pulled out and then two-end wires Male Female are untied in the positive and negative connector connector electrodes of the battery. The screw driver is applied to remove screw (M4X 12 screw) of the battery casting ３... -
Page 11: Operation Function
OPERATION FUNCTION Left Right headlight headlight Power switch Throttle Brake Safety switch Forward /Stop/Back One-key startup Lamplight Horn Steering Charging port Volume up/ down Left Right turn light turn light Switch lock sign Brake light... - Page 12 OPERATION FUNCTION VEHICLE FUNCTION Stop: The center console switch is Vehicle startup: When the key is inserted into key hole for twisting, the instrument adjusted to stop gear for stopping vehicle. In case of emergency brake in panel is on and then next key, namely startup key, is pressed.
- Page 13 Cautions! When the battery is replaced, the dangers of breakage, fever and liquid leakage will occur. Therefore, please notice the following matters: The battery must be replaced by the adults. This toy car may be confronted with the falling of small parts during the use and hence, it is not suitable for the children aged less than 36 months to use it.
-
Page 15: Circuit Diagram
CIRCUIT DIAGRAM Charging socket Left Low- turn Brake Tail beam light light Right turn light light light Power indicator Brake switch High- beam light Charging Power switch panel Variable speed Safety switch Over-current protector Forward Backward One-key startup Left and right turn Horn High-beam...
