Manual Rev.
1.03
21-20001

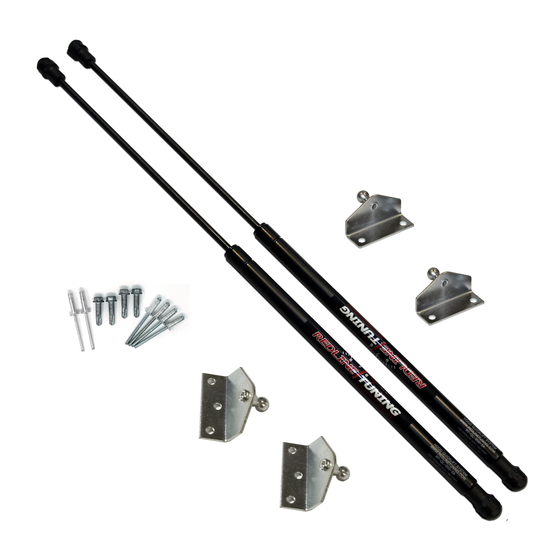

Step 1 - Unpack QuickLIFT system and verify contents.
Remove all items from the packing tube. You should have the following before beginning:
* (2) Gas springs (RT-QL-200-5A) - Be sure to cycle them a few times before installing.
* (8) 3/16" #2 Multi-grip Rivets
* (4) Steel ball-stud mounting brackets
* Printed Color Instructions
Step 2 - Gather the required tools.
Please gather the following tools before you begin the
installation:
* Power Drill
* 3/16" or indexed #11 drill bits
* Fine permanent marker or felt tip pen
* Tape Measure or ruler
* Masking Tape
* Hammer & center punch
* Rivet gun, capable of 3/16" rivets (most brands can handle
this size)
Note: Only use the rivets supplied in the QuickLIFT system.
Step 3 - Mark centerline of hood bracket location.
A. Leave your hood closed.
B. Using a piece of masking tape
and a permanent marker, carefully
measure from the hood's corner
(near windshield) and measure
along the fender line. Wrap the
end of the tape measure over the
corner lip and place a mark on the
fender masking tape at
Then place a mark on the
18" .
hood tape at
These marks will be used to
align the centerline of the
bracket's ball-studs in the
following steps.
This manual is property of Redline Tuning LLC. Any unauthorized duplication or use
5-3/4"
.
18"
without written permission from Redline Tuning LLC, violates Copyright laws.
Copyright © 2020 Redline Tuning LLC. All Rights Reserved.
1986-2001 Jeep Cherokee
QuickLIFT Installation Guide
18"
5-3/4"
5-3/4"
Advertisement
Summary of Contents for Redline QuickLIFT
- Page 1 This manual is property of Redline Tuning LLC. Any unauthorized duplication or use without written permission from Redline Tuning LLC, violates Copyright laws. Manual Rev. 1.03 Copyright © 2020 Redline Tuning LLC. All Rights Reserved. 21-20001 1986-2001 Jeep Cherokee QuickLIFT Installation Guide Step 1 - Unpack QuickLIFT system and verify contents.
- Page 2 Step 4 - Align bracket and mark 1st hole for drilling. Figure 4A A. Align the center of the bracket with the mark you just made on the hood. You will need to view the hood directly from the side as shown in Figure 4A.
- Page 3 Step 8 - Repeat steps 3-7 and install the passenger side hood bracket. A. The hood has a symmetrical under structure. Repeat Steps 3-7 to install the upper passenger hood bracket. Take your time and be sure to use the short headed rivets for the other hood bracket. Step 9 - Position and mark first hole for driver's side fender bracket.
- Page 4 Step 12 - Repeat steps 9-11 to attach the passenger fender bracket. A. Repeat Steps 9-11 to attach the passenger side fender bracket. The vehicle is symmetrical so the same locators can be used. Feel free to measure off of key areas to ensure a symmetrical installation. Step 13 - Install Gas Springs A.
