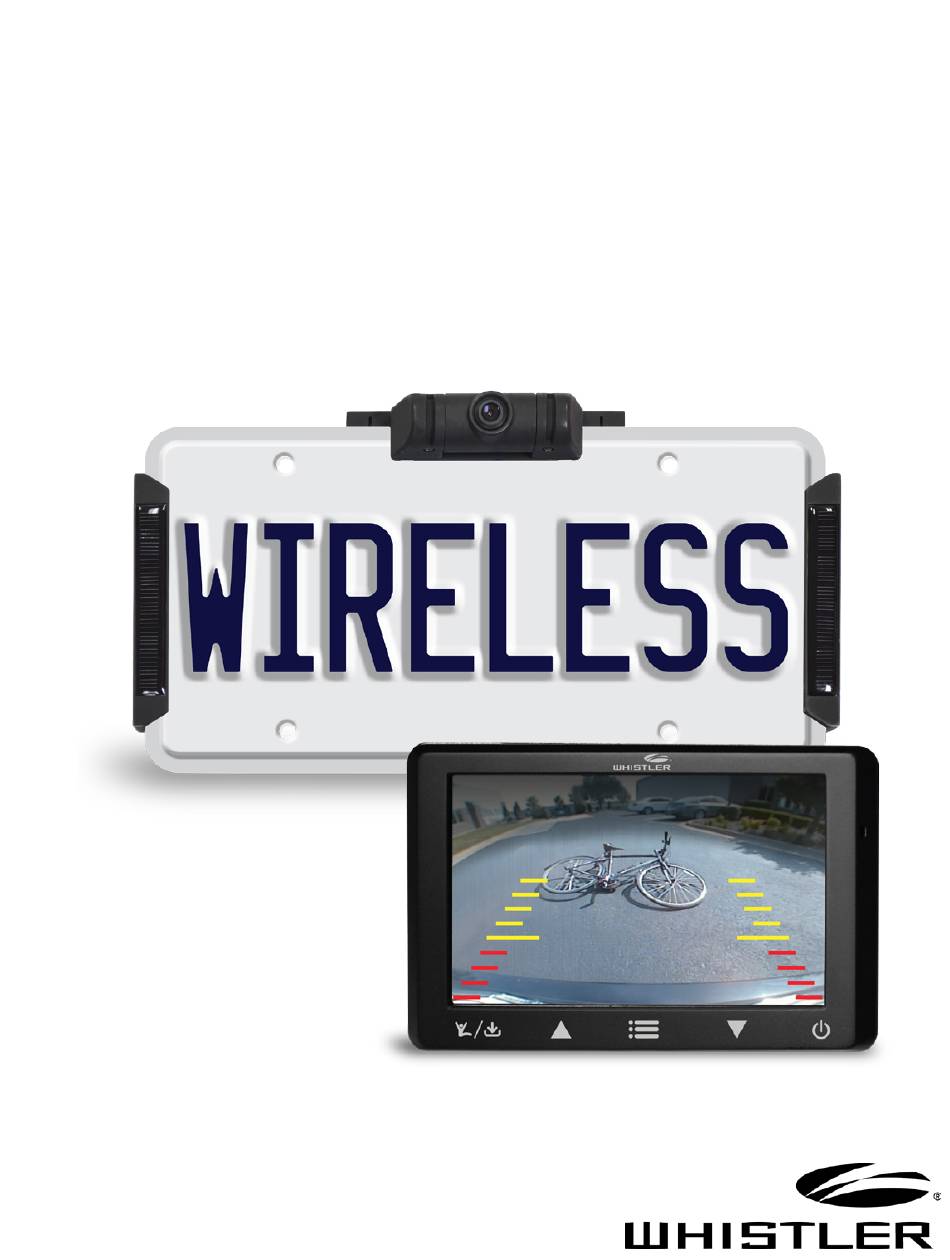

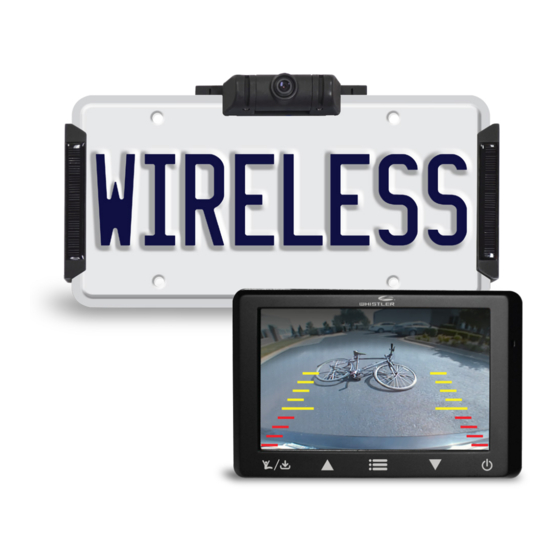

  • Page 1 WBU-1000 User Guide WIRELESS DIGITAL BACKUP CAMERA INSTALLS IN MINUTES...
  • Page 2 Because the WBU-1000 is truly wireless and does not tap into your vehicle's transmission or backup light, you must tell the unit when you are backing up. This also allows you to use your back up camera to view behind the vehicle at any time.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Components ................. 4 Getting Started .................5-6 Assembly / Installation ............7-8 Test the Camera ................9 Attach to Vehicle ...............10 Mounting the Monitor .............11 Setup ....................12 Monitor Settings ..............13-15 Troubleshooting ................16 Disclaimer ...................17 Safety ...................18 Care and Maintenance .............19 FCC and IC Information .............

  • Page 4: Components

    COMPONENTS Monitor Long M6 screws (Import) (4) Camera 10. Medium M5 screws (BMW) (4) Solar cells (2) 11. Short machine screws (2) Suction cup mount 12. Machine nuts (2) Dash disk 13. Cushions (2) Tie wraps 14. Cable tie mount (4) License back-plate 15.

  • Page 5: Getting Started

    GETTING STARTED The WBU-1000 is equipped with a built-in rechargeable lithium battery and is connected with two solar panels that trickle charge the built-in lithium battery when sunlight is available. This will minimize or eliminate the need to manually charge the unit during the year.
  • Page 6 GETTING STARTED STEP 1 Charge The Camera 1. Connect the supplied USB cord to the micro USB port of the camera assembly. 2. Plug the USB cable into any standard USB charger with an output rating of 500ma or higher. 3.

  • Page 7: Assembly / Installation

    ASSEMBLY / INSTALLATION STEP 2 Peel the backing from the adhesive disks and apply one spacer over each license plate mounting hole. Apply pressure to set the adhesive tape. Adhesive disks backing Slide your license plate into the assembly. If two of the license plate mounting holes are not required for attachment to your vehicle, insert the short machine screws and tighten with the supplied machine nuts.
  • Page 8 Should your vehicle require a special diameter or thread, please consult your dealer. PAIRING MONITOR TO CAMERA Your WBU-1000 should automatically pair with your monitor. If your monitor does not automatically pair with the camera after initial charge, the following steps are to be used.

  • Page 9: Test The Camera

    TEST THE CAMERA Test the Camera Prior to attaching the license plate to your vehicle, follow the steps below to ensure pairing between the backup camera and monitor. With power applied to the monitor, the button backlight will illuminate to indicate the monitor is ON and in Standby mode.

  • Page 10: Attach To Vehicle

    ATTACH TO VEHICLE STEP 3 Attach license plate to vehicle Once you have tested the camera system and ensured the pairing between the backup camera and monitor, you are ready to reattach the license plate to your vehicle. Be sure to use the appropriate mounting screws for your vehicle (included).

  • Page 11: Mounting The Monitor

    MOUNTING THE MONITOR Find a mounting surface inside the vehicle for the monitor where it can be easily seen, and does not obstruct your vision when driving. NOTE: To maximize the effectiveness of the suction mount, the mounting location surface temperature should be between 50°...

  • Page 12: Setup

    SETUP Functions of the Touch Buttons (left to right) Touch to enable or cancel the video on the monitor Touch for 3 seconds to turn on/off the backup assist lines. Touch to select a corresponding function. Touch to move to or adjust a corresponding function. Touch to enable/cancel the menu.

  • Page 13: Monitor Settings

    MONITOR SETTINGS User selectable camera time durations The WBU-1000 has three user selectable camera time durations. You may choose to set the monitor to stay on for 30, 60 or 90 seconds by following the below steps when the monitor is powered on: 1.
  • Page 14 MONITOR SETTINGS Menu Operations Enter the main Menu Interface and 4 options are available including IMAGE PARAMETERS, IMAGE ROTATION, SETUP and SOFTWARE INFORMATION. Press to select corresponding option, and then touch the button to enter the option. In the example above the IMAGE PARAMETERS (Brightness, Contrast, Color) Setting Interface is shown.
  • Page 15 MONITOR SETTINGS Brightness/Contrast/Color Settings Press on the interface to adjust the brightness as shown above. Image Rotation Select IMAGE ROTATION, and then touch the button to rotate or mirror the image. (It is best to have a video image displayed when making this selection). If you rotate the image on the display an orange box with arrows will appear Select Software Information...

  • Page 16: Troubleshooting

    TROUBLESHOOTING If the monitor does not turn on when power is applied: • Check to make sure the power source is active (if your 12V power port is switched with the vehicle ignition, your monitor will only work when the vehicle is running or the key is in the ON position) •...

  • Page 17: Disclaimer

    Whistler Digital Wireless Backup Camera, you agree that you are solely responsible for the operation of your vehicle and that The Whistler Group is not responsible for any property damage, personal injury, or loss of life that may result from the operation of your vehicle.

  • Page 18: Safety

    SAFETY Safety If at any time the backup camera assembly becomes damaged, hot or begins to swell, discontinue use immediately. Quickly and safely remove the backup camera from the vehicle and disconnect the solar charging cables. Do NOT continue to handle, attempt to use, or ship the damaged backup camera assembly.

  • Page 19: Care And Maintenance

    CARE AND MAINTENANCE Cleaning Do not clean or wipe the Back-Up Camera with solvents or chemical materials. If necessary, remove dirt or stains using a soft cloth dampened with a mild detergent solution. Fuse Replacement 1. Turn the cap on the tip of the power plug counterclockwise (no tools needed).

  • Page 20: Fcc And Ic Information

    FCC AND IC INFORMATION IMPORTANT: FCC (Federal Communications Commission) requirements state that changes or modifications not expressly approved by Whistler could void the user’s authority to operate the equipment. FCC Part 15.19 Warning Statement This device complies with part 15 of the FCC rules. Operation...
  • Page 21 FCC AND IC INFORMATION RF warning statement: The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. FCC ID : HSXBU01M / HSXBU01C IC Warning: This device complies with Industry Canada licence-exempt RSS...

  • Page 22: Specifications

    SPECIFICATIONS CAMERA Operational Current (when transmitting): <220mA Pixels: 640 x 480 View Angle: 110° Image Sensor: 1/4“ CMOS VGA Image Quality: Max 25 fps. Camera Assembly: IP65 TRANSMITTER Frequency: 2400 ~ 2485.5MHz RF transmission distance: >328 ft. (>100 m) Operation/storage temperature: 14° to 122°F (-10° to 50°C) MONITOR LCD display screen size: 4.3 in.

  • Page 23: Warranty Information

    All express or implied warranties for this product are limited to one (1) year. Whistler is not liable for damages arising from the use, misuse, or operation of this product including but not limited to loss of time,...
  • Page 24 Due to the specialized equipment necessary for testing Whistler products, there are no authorized service centers other than Whistler. When returning a unit for service under warranty, please follow these instructions: Ship the unit in the original carton or in a suitable sturdy equivalent, fully insured, with return receipt requested Whistler Repair Dept.
  • Page 25 WARRANTY INFORMATION IMPORTANT: Whistler will not assume responsibility for loss or damage incurred in shipping. Therefore, please ship your unit insured with return receipt requested. CODs will not be accepted! Include with your unit the following information, clearly printed: • Your name and physical street address for shipping (no PO Boxes), a daytime telephone number, and an email address (if applicable).
  • Page 26 MasterCard, VISA or American Express. Personal checks are not accepted. In the event repairs cannot be covered by the minimum service fee, you will be contacted by a Whistler technical service specialist who will outline options available to you.
  • Page 27 (if applicable). Customer Service If you have questions concerning the operation of your Whistler product, or require service during or after the warranty period, please call Customer Service at Toll Free (800)531-0004...
  • Page 28 CORPORATE HEADQUARTERS 1716 SW Commerce Dr. Ste. 8 Bentonville, AR 72712 Toll Free (800) 531-0004 TEL (479) 273-6012 www.whistlergroup.com CUSTOMER RETURN CENTER 1412 South 1st St. Rogers, AR 72756 Email: support@whistlergroup.com 09A18 © 2018 The Whistler Group, Inc.
