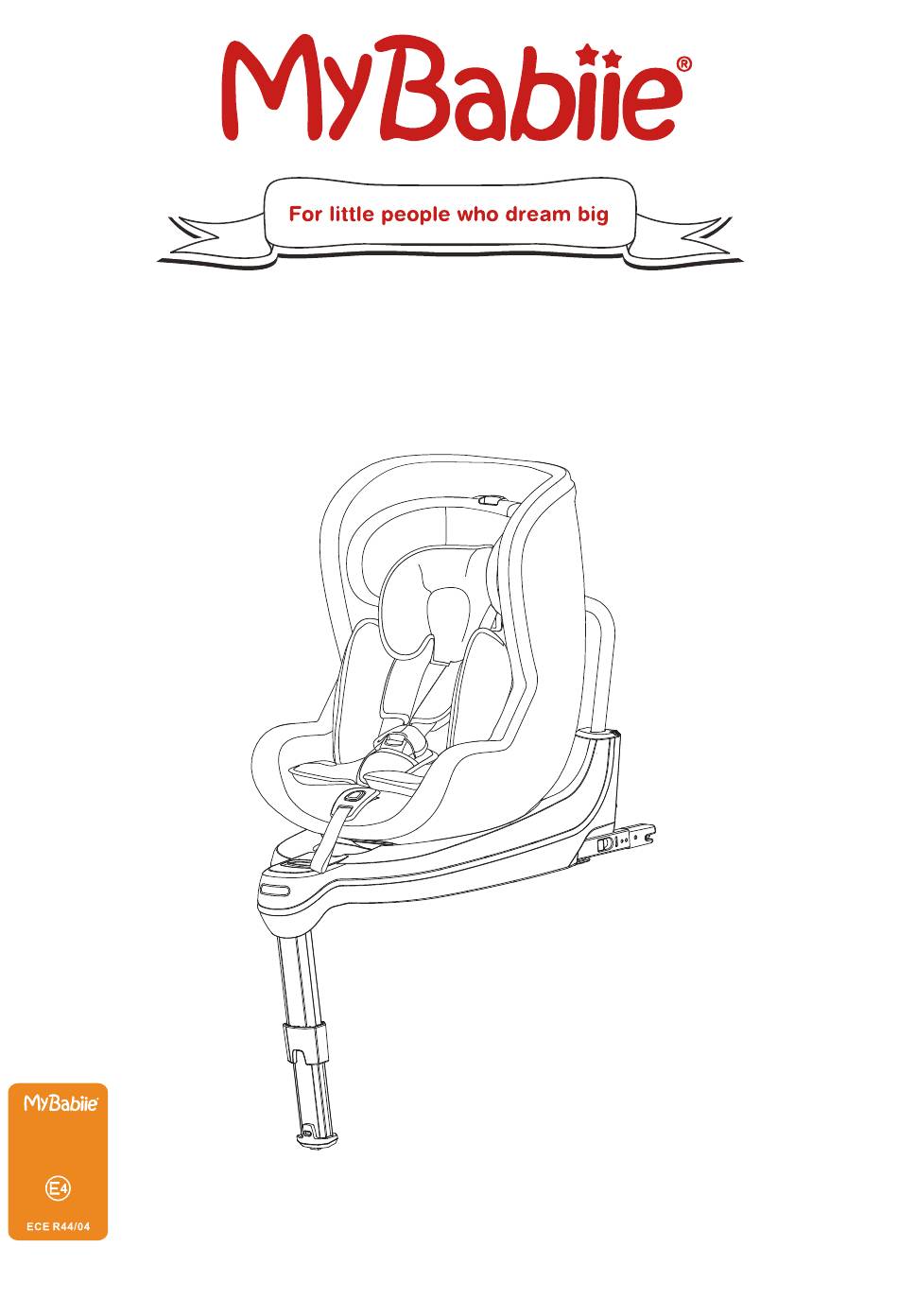

- Page 1 Group 0+/1 Orbit Car Seat (0-18kg) Instructions ISOFIX SEMI-UNIVERSAL Class D/B 0-18KG Y The product has been approved according to the strictest European 044625 safety standards (ECE R 44/04) and is suitable for Group 0+/I (0-18KG). IMPORTANT! KEEP FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Contents Important Know your car seat Suitability Use in the vehicle Installation in the vehicle Securing your child Cleaning Checklist Warranty... -
Page 3: Important
• WARNING - Do not install the car seat if there is a storage compartment below the support leg. To see a full car compatibility list please visit www.mybabiie.com/carseats... - Page 4 Important • The seat must be secured with ISOFIX and support leg , even when it not on use. An unsecured seat may injure other passengers in the car in an urgent stop. • The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of the vehicle.
-
Page 5: Know Your Car Seat
Know your car seat 1. Headrest adjust button 2. Headrest 3. Insert cushion 4. Shoulder pad 5. Shoulder straps 6. Harness buckle 7. Adjusting button 8. Adjustment strap 9. Support leg 10. Support leg indicator 11. Rotating button 12. Isofix button 13. -
Page 6: Suitability
Suitability Suitability as a child safety seat installed in a vehicle * ECE = European Standard for Tested and certified according Safety Equipment My Babiie MBCS360 to ECE* R 44/04 Child Safety Seat Group Body Weight 0+/I 0-18 kg MBCS360 The child safety seat has been designed, tested and certified according to the requirements of the European Standard for Child Safety Equipment (ECE R44/04). - Page 7 Use in the Vehicle Passenger seat may be on opposite side depending on country legisla on/law. In the direction of travel Against the direction of travel With 2-point belt With 3-point belt With the ISOFIX and Support Leg On front passenger seat ONLY IF THERE IS NO AIRBAG OR IT IS TURNED OFF On outer rear seat On centre rear seat...
- Page 8 Use in the Vehicle Securing your baby using the baby insert CAUTION Never use this child restraint system in seating positions where an active frontal airbag is installed. An active frontal airbag may cause death or seriously injury of your child in an accident.
-
Page 9: Installation In The Vehicle
• Always secure your baby in the car seat using the harness. • Never leave your baby unattended in the car seat when placing it on elevated surfaces (e.g. a table, nappy changing unit, etc.). • Never allow the strap end to become caught in moving parts (e.g. automatic doors, escalators, etc.). - Page 10 Installation in the vehicle 5.3 Removing child car seat Push the support leg button, slide the lower section of the support leg into the upper section until it is fully stored. 5.4 Removing child car seat Push the green ISOFIX indicator and the red release button on the two locking arms toward each other.
-
Page 11: Securing Your Child
Securing your child 6.1 Headrest adjust There are seven adjustable headrest position, pull the headrest adjust button upwards, move the headrest to the correct shoulder strap height and check that it is properly engaged by lightly sliding the head rest downwards. 6.2 To change the recline The seat can be reclined into multiple di erent positions. - Page 12 Securing your child 6.3 Swiveling Function The 360º seat rotation which makes it easier to get your child into or out of the child seat. The seat can rotate by pressing the rotation button and turn the seat into the direction of travel.
- Page 13 Securing your child 6.5 Rearward facing from 0-18kg If you want to use the child seat in group 0+ (0-18kg), press the rotation button and turn the seat against the direction of travel, now the child set is in the mode for Group 0+ (0-18kg) rearward facing.
- Page 14 Securing your child Separate the harness and have your child sit down in the child seat. Guide the two buckle latches together and engage them before putting them into the harness buckle, this should make a clicking sound. The harness must be reasonably tight.
-
Page 15: Cleaning
Securing your child The cuddleme baby insert with foam part is unsuitable for children over 13 kg. In this case, you must remove the cuddleme baby insert or only the foam part from the child seat. Tip! The cuddleme baby insert can also be used without foam part for children over 13 kg. -
Page 16: Warranty
Warranty The warranty period starts from the date of purchase and is valid for a period of 12 months. The warranty is only applicable to the original owner and is not transferable. The warranty is only applicable to products that have not been adapted by the user. In the case of any defects, the owner is required to return the product to the retailer. - Page 17 Register your product at: www.mybabiie.com/warranties In the rst instance of needing assistance please con- tact your original place of purchase. This product quali es for 12 month warranty when registered through our site Follow us! /MyBabiie @MyBabiieO cial @MyBabiie /MyBabiie My Babiie.
Need help?
Do you have a question about the MBCS360 and is the answer not in the manual?
Questions and answers

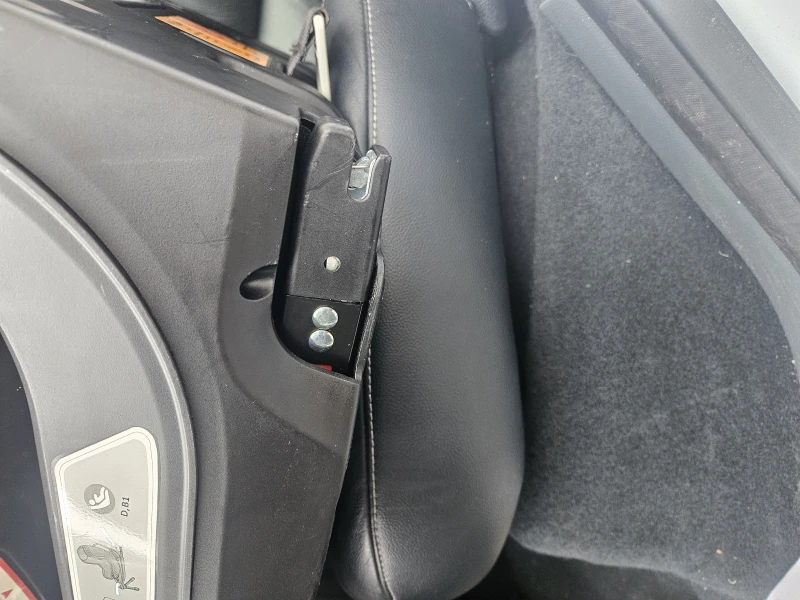

How to get the conecters out of the chair when they have been pushed in?
