- Page 1 Support Handbook Connection to public address system with SIME (MPS-8Z with ZES22 matrix) LDA MPS-8Z S02 Reference:...

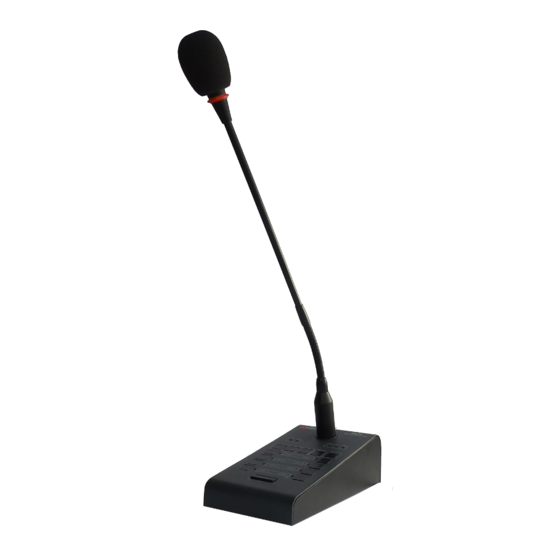

- Page 2 Connection to public address system with SIME (MPS-8Z with ZES22 matrix) Support Handbook - LDA MPS-8Z S02 1 INTRODUCION This handbook shows the proper way to connect a public address microphone LDA MPS-8Z system with SIME software, using the digital audio matrix ZES-22 S02.
- Page 3 Connection to public address system with SIME (MPS-8Z with ZES22 matrix) Support Handbook - LDA MPS-8Z S02 RS-485 Connection In order to properly connect MPS-8Z microhone and ZES-22, it is mandatory to do it by an specific UTP cable. This cable should be CAT 5 or higher.
- Page 4 Connection to public address system with SIME (MPS-8Z with ZES22 matrix) Support Handbook - LDA MPS-8Z S02 Picture 4: ZES-22 ports diagram That last configuration can be supplied with the LDAZES22ACSIS01 adapter. As shows at Picture 5, the RJ-45 conector allows the direct connection with the MPS-8Z microphone, even bring it the power supply by a local 5V dc USB adapter.
- Page 5 Picture 6: MPS-8Z ports Cnnection between MPS-8S units must be done by standar T568B ehernet cable. Maximum connection distance for the entire bus 1000m (3280ft). In total, up to 8 MPS-8Z devices can be connected to each ZES-22. The ACSI bus does not provide power to the equipment remotely, so each MPS-8Z microphone must have its own local source.
- Page 6 Connection to public address system with SIME (MPS-8Z with ZES22 matrix) Support Handbook - LDA MPS-8Z S02 ◦ Make sure the device does not have conceded word. The “CW” light should be off. ◦ Keep pressed the button “CANCEL” and the button “EVENT” for at least 2 seconds.
- Page 7 1.4.6 CONFIGURATION. OUTPUT VOLUME • The output volume level of the MPS-8Z is configured with Zone 7 and Zone 8 buttons. Press Zone 7 to increase the volume level and Zone 8 to decrease volume level. Each time the button is pressed, the corresponding zone light will be shortly on. When the volume level is at the maximum, the zone 7 light will remain on.
