Page 2
Address: Via Benini, 1 - 40069 Zola Predosa BOLOGNA - ITALY Declares that: The active optoelectronic safety device model XP15B, • complies with the essential safety requirements of the following directives : 73/23/EEC and subsequent amendment 93/68/EEC. 89/336/EEC and subsequent amendment 92/31/EEC and 93/68/EEC...
Page 3

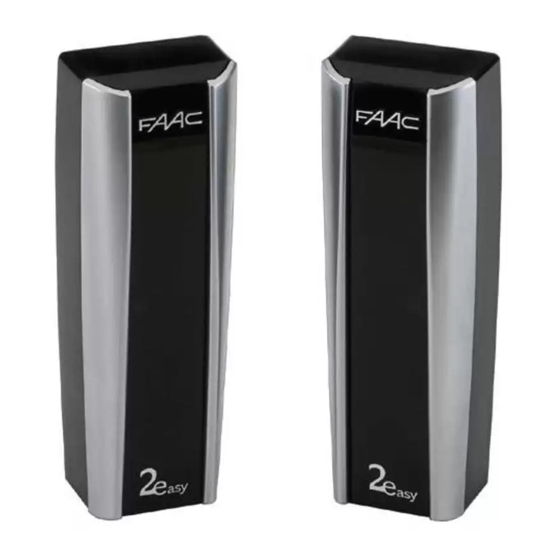

XP15B Photocell XP15B can be connected only to 3. INSTALLATION FAAC control units which control the BUS 2 Easy line. For best operation, position the Receiver and Transmitter aligned. Up to 16 pairs of photocells can be connected Two types of installation are possible: to each system.
Page 4
4. ELECTRICAL CONNECTIONS Tab. 1 •Make the electrical connections on the terminal- boards of the receiver and transmitter, using the grommets, as shown in Fig. 4. •The BUS consists of a pair of non-polarised conductors. •To make the connections to the control unit, consult the specific instructions of the control unit being used.
Page 5
6. TROUBLESHOOTING The following table will help you identify and solve some particular conditions regarding the operation of the photocells. For a complete list of the error/trouble situations refer to the instruction for the control unit. t t i . s l l l l e .
Page 6
Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. FAAC se réserve le droit d’apporter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...
