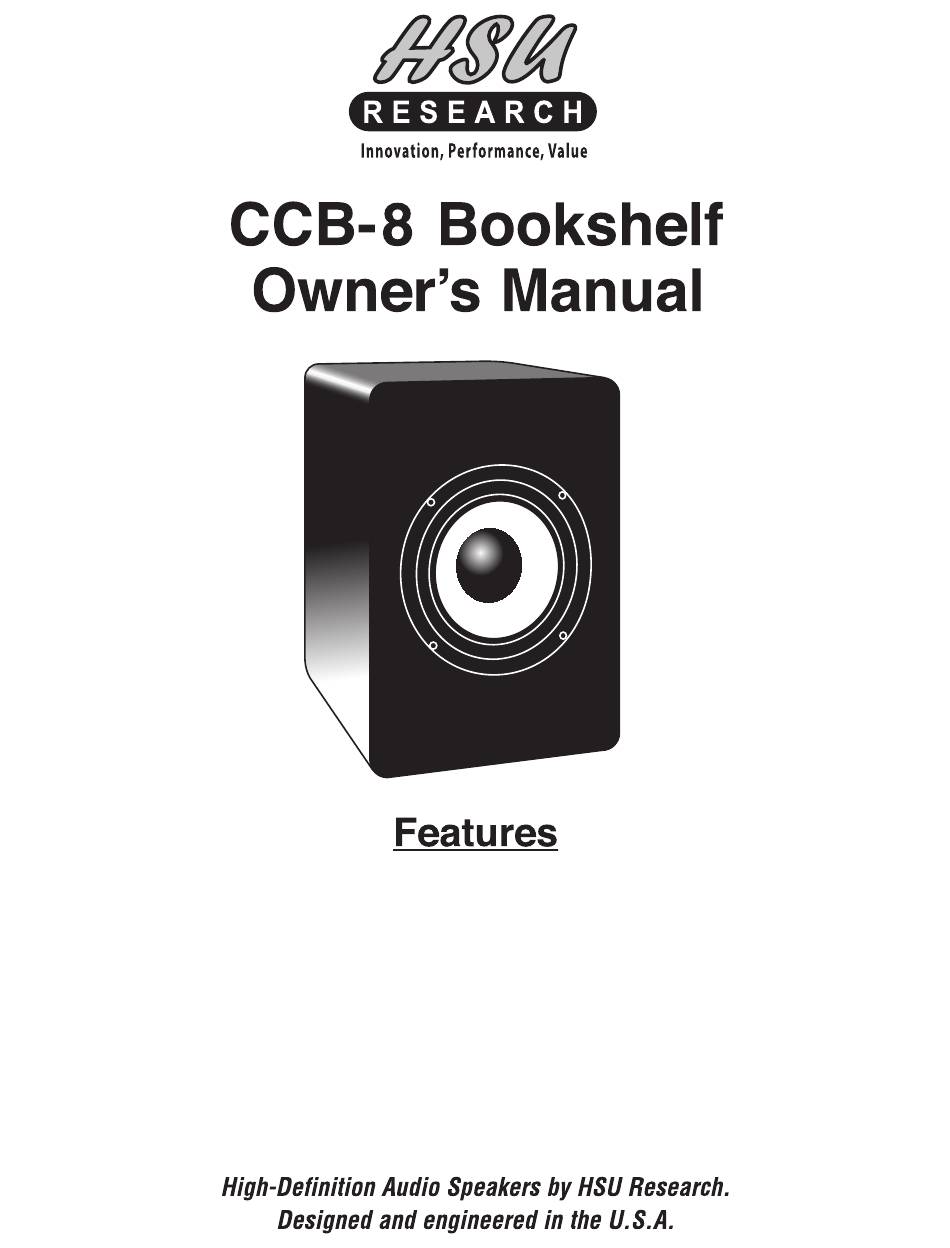

HSU CCB-8 Owner's Manual

Bookshelf

Table of Contents

Download this manual

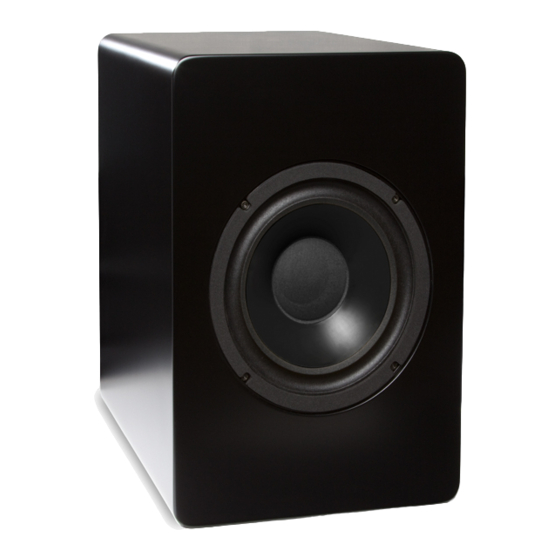

Constant Directivity Coaxial

The CCB-8 utilizes the woofer cone and pole piece as the constant directivity horn for the tweeter which is

mounted behind the woofer magnet. This gives an extremely high efficiency tweeter, over 100 dB sensitivity,

with good directivity and excellent micro and macro dynamics. Unlike the HB-1, the CCB-8 is a point source,

yielding imaging and balanced tonality that is second to none no matter where you sit.

The CCB-8 uses a 8-inch cast frame woofer with a 2˝ edge wound copper clad aluminum voice coil for the

highest possible efficiency and speed. This is coupled to an acoustically inert polypropylene cone and a well

damped cloth surround. The wide dynamic range capability of this woofer matches the tweeter perfectly.

The complete absence of lobbing in the CCB-8 thanks to the coaxial design means it's perfect as a center channel

speaker. Just lay it on its side.

Table of Contents

Do you have a question about the CCB-8 and is the answer not in the manual?

Page 1 The CCB-8 uses a 8-inch cast frame woofer with a 2˝ edge wound copper clad aluminum voice coil for the highest possible efficiency and speed. This is coupled to an acoustically inert polypropylene cone and a well damped cloth surround.
Page 2 D. Setting Up Purchase as many CCB-8s as needed – seven for a 7.1 system, five for a 5.1 system, etc. Connect one CCB-8 to each speaker output. Make sure you observe the polarity. Most speaker wire is polarity coded. This means that each conductor is labeled either (+) positive or (–) negative.
Page 3 HSU’s liability for any defective product is limited to repair or replace- you have determined that you have a speaker problem, contact us at ment of the product at our option. HSU shall not be liable for incidental the location shown below for service. Please describe the problem in or consequential damages of any kind or character because of product detail.
