Summary of Contents for MedKlinn HomeTravel Versa Series
- Page 1 OPERATING MANUAL HomeTravel Series...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ....................................DEVICE IDENTIFICATION ..................................GETTING STARTED ......................................OPERATION ..........................................SAFETY FEATURE ....................................... MAINTENANCE & SERVICE ................................... TROUBLESHOOTING GUIDE .................................. SPECIFICATIONS ...................................... -
Page 3: Safety Precautions
Congratulations on your purchase of the MedKlinn Versa Air+Surface Sterilizer! It incorporates the most innovative and latest air+surface cleaning technology, the Cerafusion Technology. Please read the following instructions carefully before using the unit. With a little care, it will help you create a clean, fresh and healthy living space for many years. - Page 4 NOTE - RADIO OR TV INTERFERENCE: If the unit should cause interference to radio or television reception, try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. • Increase the distance between the unit and radio/TV receiver. •...
-
Page 5: Device Identification

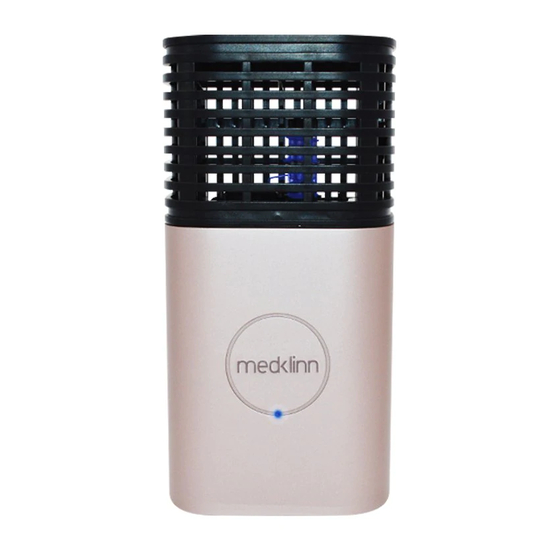

DEVICE IDENTIFICATION FRONT VIEW Detachable Colour Casing LED light indicator Detachable front lid... - Page 6 DEVICE IDENTIFICATION BACK VIEW Control Dial Micro USB Port Detachable front lid...
- Page 7 DEVICE IDENTIFICATION Power Inlet USB (B-type) Cable USB Power Adaptor Plug into AC Outlet (AC 110V ~ 240V, 50/60Hz)
- Page 8 DEVICE IDENTIFICATION CERAFUSION™ CARTRIDGE Glass tube Contact point Top View Bottom View...
-
Page 9: Getting Started
GETTING STARTED 2 WAYS TO TURN THE UNIT ON: USB power source (Minimum 5V2A) - Powerbank - Notebook To AC - Other USB power source Outlet (AC 110V ~ 240V, Important: 50/60Hz) Power banks come with many different specifications. While some are mislabelled, the minimum specification to power the Versa is 2.4A. - Page 10 GETTING STARTED PLACEMENT OF UNIT: For best performance, place the unit under a source of air circulation such as an air conditioner or a ceiling fan. This will enable the Active Oxygen produced by the unit to be quickly distributed throughout the room. It is highly recommended to place the unit at least 2 feet from your normal sitting or sleeping position.
-
Page 11: Operation
OPERATION TO ADJUST TO LOW/HIGH SETTING: 1. To adjust to LOW mode, turn the Control Dial anti-clockwise. 2. To adjust to HIGH mode, turn the Control Dial clockwise. TO SWITCH OFF THE DEVICE: HIGH 1. Turn the Control Dial anti-clockwise until you hear a “click” sound. -
Page 12: Safety Feature
SAFETY FEATURE CAUTION A safety feature is incorporated to prevent electrical shock. In the event the front lid is detached while the unit is still operating, all LED lights will become unlit. This indicates the power to the Cerafusion™ Cartridge has been cut off. -
Page 13: Maintenance & Service
MAINTENANCE & SERVICE CLEANING OF DEVICE CAUTION: SWITCH OFF AND UNPLUG THE UNIT BEFORE CLEANING Due to water evaporation and accumulation of fine dust or other pollutants, there may be some stains around the ventilation holes. CLEANING THE EXTERNAL PART OF DEVICE: Ventilation holes Wipe the device gently with a slightly damp cloth. - Page 14 MAINTENANCE & SERVICE CLEANING THE INTERNAL PART OF DEVICE: Latch Latch Step 1: Step 2: Push the latch outward slightly to open the front lid. Pull out the front lid.
- Page 15 MAINTENANCE & SERVICE CAUTION: THE CERAFUSION™ CARTRIDGE COULD BE HOT. BE CAREFUL WHEN REMOVING IT. Step 4: Clean the front lid and internal surfaces Step 3: Remove the Cerafusion™ Cartridge. with a slightly damp cloth and/or used toothbrush.
- Page 16 MAINTENANCE & SERVICE WHEN TO CHANGE CERAFUSION™ CARTRIDGE? ( Recommended every 12 months *Replace NEW Cerafusion™ Cartridge CAUTION: 1. ENSURE THAT THE UNIT IS SWITCHED OFF BEFORE REPLACING CARTRIDGE TO AVOID ELECTRICAL SHOCK. 2. DO NOT HOLD THE GLASS TUBE WHEN HANDLING THE CARTRIDGE. 3.
- Page 17 CHANGING THE VERSA CASING (OPTIONAL) The Versa casing comes in 8 exciting colours. You can change the casing to a colour which suits your mood or decor. Insert the new casing onto the Versa body Step 2: Step 1: Push the latch of the cover outward to until you hear a "click"...
-
Page 18: Troubleshooting Guide
4. I have switched on the unit, the LED Indicator light is lit, but there is no “hissing” sound coming from the unit. First, check if the Cerafusion™ Cartridge is properly inserted into the cartridge holder. If there is still no “hissing” sound after replacing a new cartridge, contact your authorized Medklinn Service Centre to have the unit serviced. - Page 19 5. The LED Indicator light is blinking every 2 second non-stop. What happened? It means the front lit of the unit is not closed properly. If the light remains blinking after closing the front lit properly, contact your authorized Medklinn Service Centre to have the unit serviced.
-
Page 20: Specifications
SPECIFICATIONS MODEL VERSA 25 VERSA 45 Input Voltage 5V2A Output Current (max) 14/12V Power Consumption < 4.5 watts Functions Low / Mid / High Dimensions (mm) 75(W) x 140(H) x 50(D) Temperature 5º - 35ºC Operating Environment Coverage Area* Up to 250 square feet Up to 450 square feet Weight (unit + power adaptor) 250 grams...
