Steiss 8 Series User Manual

Digital auto sensor alternating air-pressure mattress system, grade 4

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

SERIES

Digital Auto Sensor

Alternating Air- Pressure

Mattress System

USER MANUAL

DX860

Grade

* This 'Grade' is a guide only. Each individual must be assessed

by a tissue viability specialist, the correct product chosen and set

to operate according to the patient's needs. Regular repositioning

schedules need to be in place as this product does not replace

good nursing care.

Table of Contents

Need help?

Do you have a question about the 8 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Steiss 8 Series

Page 1 SERIES Digital Auto Sensor Alternating Air- Pressure Mattress System USER MANUAL DX860 Grade Grade * This ‘Grade’ is a guide only. Each individual must be assessed by a tissue viability specialist, the correct product chosen and set to operate according to the patient’s needs. Regular repositioning schedules need to be in place as this product does not replace good nursing care.
Page 2: Table Of Contents
17-20 page 21 14. Waste Disposal page 21 15. Symbols Used 16. Expected Service Life page 21 17.Warranty page 22 18.Legal Disclaimer. page 22 19.Service page 23-25 Guidelines & Equipment page 23 Notes page 24 Steiss Service Record page 25...
Page 3: The Purpose Of This Manual
1.The Purpose of this Manual 1. The Purpose of this Manual This operation manual mainly focused on the setup, cleaning and routine maintenance of the Steiss DX860 Alternating Pressure Mattress Replacement System. The Steiss DX860 is a high pecification alternating Air-...
Page 4 Note cleaning/washing instructions later in manual. This device is not registered as AP/APG protected. Do contact your service centre if this product is not working properly. Use only manufacturer-approved parts when maintaining or repairing the Steiss DX860. Use only manufacturer-approved accessories with this device. DX860 control unit.
Page 5: Quick Start-Up Guide
PREPARATION OF AREA a. Place the DX860 Alternating Pressure Mattress directly on top of the bed frame Steiss and ensure that the air hose is at the foot of the bed. Secure the mattress using the straps at the base.
Page 6: Inflation Of Mattress
INFLATION OF MATTRESS 1. Ensure that the Cardio Pulmonary Resuscitation (CPR) valve of side mattress is closed. CAUTION: It is important to ensure that no person/object is Iying/sitting on the mattress when it is initially being inflated 2. Press the front ON/OFF button to put the pump into 'OPERATION' The light will illuminate next to OPERATE' on the front panel.
Page 7 4. When the mattress is fully inflated set the correct weight on the comfort control. This control enables you to ， adjust the firmness of the mattress. The mattress is ready to be used. The pump and mattress will then run continuously in 'dynamic mode' The alternating function will inflate and deflate the mattress cells over a 10 minute cycle (default setting).
Page 8 CAUTION: During a power cut, pump will stop functioning and power failure LED indicator may be flashing as well as the power failure alarm may be triggered if equipped, these are normal. The pump will return to its normal operation when power is resumed.
Page 9: Emergency Air Release - Cpr Valve Function
4. Emergency Air Release – CPR Valve Function 5. Alarms DX860 DX860 Alternating Air-Pressure Mattress System is equipped with visual and audible alarms in the event of low pressure or power Alternating Air-Pressure Mattress System is equipped with visual and audible alarms in the event of low pressure or power failure.
Page 10 5. Alarms To deactivate the audible alarm by press the audible alarm button.
Page 11: Product Description
10,20 and 30 minute. This results in the reduction of surface pressures helping to prevent tissue breakdown and encourage healing. DX860 For added durability, and longer working life, your Steiss mattress has been constructed using high strength components and premium grade materials. The mattress features a heavy duty base layer and a 100% waterproof, multi-stretch vapor permeable PU cover to reduce risks of friction and shear.
Page 12: Pump Features

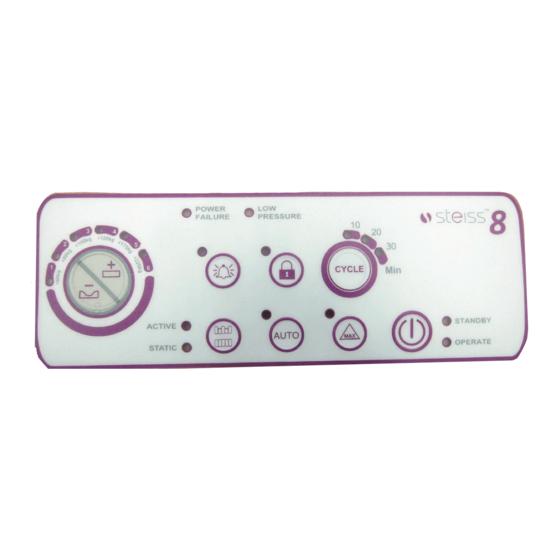

PUMP FEATURES Item Description Power Switch Comfort Setting Therapy mode selection Alarm mute Low Pressure: instant low pressure alarm. Audio alarm will be triggered after 5 minutes if a low pressure is not resolved Power Failure: Instant power failure alarm Control Panel Lock Dynamic alternating cycle time setting in minute Auto Sensing: Detect the patient weight automatically...
Page 13: Instructions For Proper Use
When cleaning do not use Phenol based substances. Steiss offer Multi-surface disinfection wipes which When cleaning do not use Phenol based substances. Steiss offer Multi-surface disinfection wipes which are ideal for cleaning both pump housing and mattress.
Page 14: Maintenance And Troubleshooting
Check air cells for holes/tears (other Replace any damaged air cells. than where part of the design) Consult a qualiﬁed service technician if the problem persists. If issue not resolved, please contact your Steiss Supplier.
Page 15: Cleaning & Disinfection Protocol
Mattress cells can be wiped down with a solution of sodium hypochlorite 1,000ppm or any other non-phenol- based germicidal cleaning solution. Steiss have developed a dedicated wipe to ease the cleaning process for their clients. Please ask your mattress supplier for Multi-surface disinfection wipes.
Page 16: Cleaning Of Master Control Unit
The pump casing is manufactured from ABS plastic - therefore: NOTE: Do not use a phenol-based cleaning solution. Steiss has designed cleaning wipes called Multi- NOTE: Do not use a phenol-based cleaning solution. Steiss has designed cleaning wipes called Multi- surface disinfection wipes.
Page 17: Storage & Care
11. Storage and Care of all parts 10. Storage and Care of all parts MATTRESS • Check the air manifold for kinks or breaks and replace it if necessary. • Disconnect the CPR valve and disconnect the air tubes from the control unit to allow the mattress to •...
Page 18: Specification Technical Data
12. Speciﬁ cation/Technical Data Steiss DX860 Master Control Unit / Pump Model Name DX860 Steiss Master Control Unit Size L x W x H 34.5 x 14.5 x 21cm (13.58 x 5.71 x 8.26 inches) Weight 3.3kg (7.27lbs) Cycle Time...
Page 19: Emc (Electro Magnetic Compatibility) Guide
RF disturbances are DX860 controlled. The customer or the user of the Steiss can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and...
Page 20 Guidance and manufacturer’s declaration – electromagnetic emissions DX860 The Steiss DX860 The customer or the user of the Steiss should ensure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment – guidance DX860 The Steiss uses RF energy only for its internal function.
Page 21 Guidance and manufacturer’s declaration – electromagnetic immunity DX860 The Steiss DX860 The customer or the user of the Steiss should ensure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnectic test level environment - guidance Electrostatic ±6 kV contact...
Page 22 AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey DX860 should be considered. If the measured field strength in the location in which the Steiss is used exceeds the DX860 applicable RF compliance level above, the Steiss should be observed to verify normal operation.
Page 23: Waste Disposal
To maintain the condition of the pump, do ensure that the pump is serviced according to the schedule To maintain the condition of the pump, do ensure that the pump is serviced according to the schedule recommended by Steiss. recommended by Steiss.
Page 24: Warranty
These Descriptive Risk Levels should not be taken as prescriptive criteria. C. Steiss mattresses/cushions should be seen as an aid to care and DO NOT replace the need for good C. Steiss mattresses/cushions should be seen as an aid to care and DO NOT replace the need for good nursing care and intervention.
Page 25: Service
14. Waste Disposal 19. Service 19. Service RECORD PRODUCT DETAILS Serial Number Model Number Ward or Care Establishment Deployment date / ﬁrst opening date SERVICE EQUIPMENT Flow gauge Manometer Details of mattress and pump audit procedure SERVICE GUIDELINES General Condition - check these areas: Details: PU Cover, Cover Welds, Screen Print and Base Substrate Look for signs of damage...
Page 26 14. Waste Disposal NOTE: This is only a physical check of the mattress / pump system and by no way meant to replace anything that is recommended by the MHRA EPUAP or similar professional body. We recommend you check your relevant Healthcare Body website for any further information that may need to be incorporated into your checks.
Page 27 14. Waste Disposal Service Record Service Record First service due: First service due: Steiss Authorised Service Centre: Steiss Authorised Service Centre: All applicable service actions checked: All applicable service actions checked: Open service actions completed: Open service actions completed: Date:...
Page 28 14. Waste Disposal Supplier Contact Details Last Edited June 2018...
