FMT-401, FMT-402, FMT-404

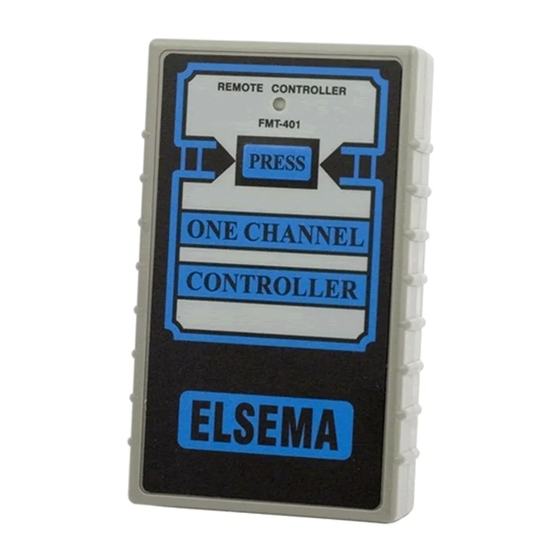

High Powered, Handheld 27MHz Remote Control Digital Transmitter with LED
Features
LED status indicator & low battery alert.
Works in the 27MHz band.
Maximum reliability provided by Surface-Mount technology.
High security by 12-way code switch, enabling 4096 codes.
Long operating distance.
Durable plastic case.
2-Channel and 4-Channel versions are also available.
Application
A remote control switching device for various uses e.g. garage doors, lights, gates, and automatic telephone
dialers
A personal security alarm activator for home safety or cash carrying businesses e.g. banks, shops, service
stations, etc.
A calling device for the elderly or handicapped
Description
The LED indicator on the FMT-401 indicates the low battery (<6.5V) status by flashing at 1Hz. To activate
the transmitter, simply press the button at the front. LED will be "on" when the transmitter is activated.
Working in the 27MHz band, the FMT-401 achieves the highest possible standard of performance by
employing a crystal-controlled, frequency modulated radio signal. The microcontroller with the latest surface-
mount technology provides maximum reliability.
High security against false operation is achieved by a 12-way code switch (part of the digital encoding system)
which is used in place of the usual 8 or 10 way systems from other manufactures. This enables the user to
select any one of the 4096 codes available. The code can be easily changed at any time.
Operating Distance
Range (m)
70
Upto 300
(Range test was done in an open area test site with line-of-sight operation and no interference. The receiver
antenna wire was fixed vertically, away from any metal objects.)
Compatibility
All Elsema type FMR-... series Receivers
High Powered, Handheld 27MHz Remote Control Digital Transmitter – FMT-401, FMT-402, FMT-404
Receiver Antenna
300mm wire
ANT27M
- 1 -
ELSEMA
Receiver Type
FMR-... series
FMR-... series
Advertisement
Table of Contents
Related Manuals for Elsema FMT-401 Series
Summary of Contents for Elsema FMT-401 Series
- Page 1 FMR-… series (Range test was done in an open area test site with line-of-sight operation and no interference. The receiver antenna wire was fixed vertically, away from any metal objects.) Compatibility All Elsema type FMR-… series Receivers - 1 -...
- Page 2 ELSEMA High Powered, Handheld 27MHz Remote Control Digital Transmitter – FMT-401, FMT-402, FMT-404 Products in the Range FMT-401 FMT-402 FMT-404 FMT-401NL FMT-402NL 1-channel 2-channel 4-channel 1-channel 2-channel FMT-404NL FMT-401WNL FMT-402WNL FMT-404WNL Front view of 4-channel 1-channel 2-channel 4-channel FMT-40..WNL No Label – see page 5 for instructions...
- Page 3 Digital Coding System Onboard 12-way coding switch (4096 codes) (FMT-404: 10-way) Dimension 96 x 55 x 20 mm Weight 70g (excluding battery) Useable Operating 300m (varies upon receiver antenna & location) Range Compatible Receivers All Elsema type FMR series Block Diagram - 3 -...
- Page 4 ELSEMA High Powered, Handheld 27MHz Remote Control Digital Transmitter – FMT-401, FMT-402, FMT-404 Using FMT-402 and FMT-404 To Use FMT-402 with a 2 channel receiver, and FMT-404 with a 4 channel receiver, just match the 10 way dip switch on the transmitter to the receiver.
- Page 5 ELSEMA High Powered, Handheld 27MHz Remote Control Digital Transmitter – FMT-401, FMT-402, FMT-404 Using 4 Different Receivers with FMT-404 FMT-404 can also be used with 4 different single channel receivers e.g. FMR-212. This can be setup as follows: 1. Make sure the 10 way dip switch on the transmitter board matches the first 10 dip switches of the receiver.
- Page 6 Email: G&M Screen Printing Phone: (61) 2 9676 4560 Fax: (61) 2 9676 4561 Manufactured by Distributed by Elsema Pty Ltd 3/10 Hume Rd, Smithfield NSW 2164 Ph: 02 9609 4668 Fax: 02 9725 2663 Website: http://www.elsema.com - 6 -...
