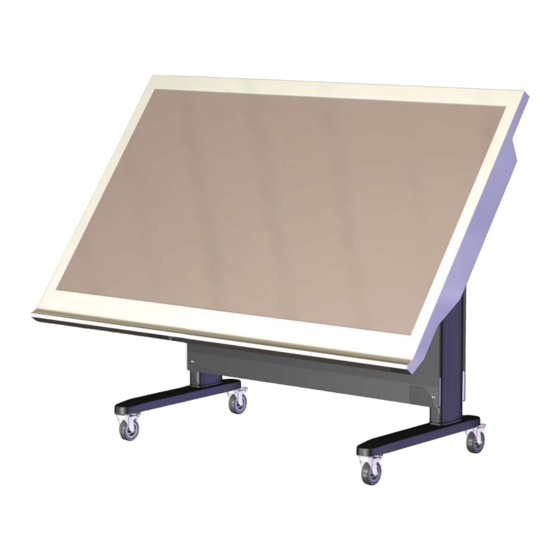

- Page 2 Thank you for purchasing a Pro‐LIFT G5ZELT. The Pro‐LIFT product line is designed to enhance your interactive whiteboards and projectors or LCD. Please follow all assembly instructions correctly to provide optimal use. Only a qualified contractor should install the Pro‐LIFT G5ZELT. If you do not understand any of the assembly instructions, please contact your local re‐seller or visit www.proliftstand.com. IMPROPER INSTALLATION CAN CAUSE DAMAGE TO YOUR Pro‐LIFT AND LEAD TO SERIOUS PHYSICAL INJURY. JORO Manufacturing cannot take any responsibility for damage or injury resulting from improper installation. Do not operate Pro‐LIFT G5ZELT if there are any obstructions below or above the board. Doing so may cause unit malfunction or lead to serious physical injury. The supplied mounting hardware is for use on the Pro‐LIFT stands only. If you encounter any problems or insufficient hardware during installation, please contact your local re‐seller. ...
- Page 3 G5ZELT Main Frame Kit Tube1020 End Cap 3/16" Allen (Hex) Key Cable Tie Mount 1/4" Washer LCD TV Kit www.joromfg.com www.proliftstand.com COPYRIGHT 2017 ProLift G5ZELT ASSY Instructions : 0.005...
- Page 4 M6 x 14mm Socket Cap Screw M6 x 14mm Socket Cap Screw Mount the Pro-LIFT G5ZELT feet For ease of installation, do this step while the Pro-LIFT G5ZELT is laying down Use the M6 x 14mm Socket Cap Screws provided DO NOT over tighten www.joromfg.com...
- Page 5 DO NOT over tighten Thread-Cutting Screw (8-32 x 3/8" Lg.) Cable Tie Mount Fasten the Cable Tie Mounts Use the Thread-Cutting Screw (8-32 x 3/8" Lg.) provided DO NOT over tighten www.joromfg.com www.proliftstand.com COPYRIGHT 2017 ProLift G5ZELT ASSY Instructions : 0.005...
- Page 6 Mount the tilting mechanism Position the tilting brackets keyholes over the positioning screws and slide into place Fasten the remaining M6 x 14mm Socket Cap Screws DO NOT over tighten www.joromfg.com www.proliftstand.com COPYRIGHT 2017 ProLift G5ZELT ASSY Instructions : 0.005...
- Page 7 M6 x 14mm Socket Cap Screw M6 x 14mm Socket Cap Screw Fasten the top pusher bracket Use the M6 x 14mm Socket Cap Screws provided DO NOT over tighten www.joromfg.com www.proliftstand.com COPYRIGHT 2017 ProLift G5ZELT ASSY Instructions : 0.005...
- Page 8 Mount the LCD Tubes to your LCD (not included) using the fasteners from the LCD TV Kit Use the appropriate fasteners as specified in the LCD owners manual DO NOT over tighten www.joromfg.com www.proliftstand.com COPYRIGHT 2017 ProLift G5ZELT ASSY Instructions : 0.005...
- Page 9 Bolts already fastened Secure the LCD Assembly to tilting mechanism Use the M6 x 55mm Partial Thread Socket Cap Screws and 1/4" washers supplied Be sure to NOT over tighten www.joromfg.com www.proliftstand.com COPYRIGHT 2017 ProLift G5ZELT ASSY Instructions : 0.005...
- Page 10 7 Top Cover Top Cover Top Cover Position top covers Wire manage before placing top covers Place top cover over all tabs and press firmly Repeat for other side www.joromfg.com www.proliftstand.com COPYRIGHT 2017 ProLift G5ZELT ASSY Instructions : 0.005...
