ERDMX-E
Install Guide
This guide covers models ERDMX-EU-LV which has a 902MHz radio.

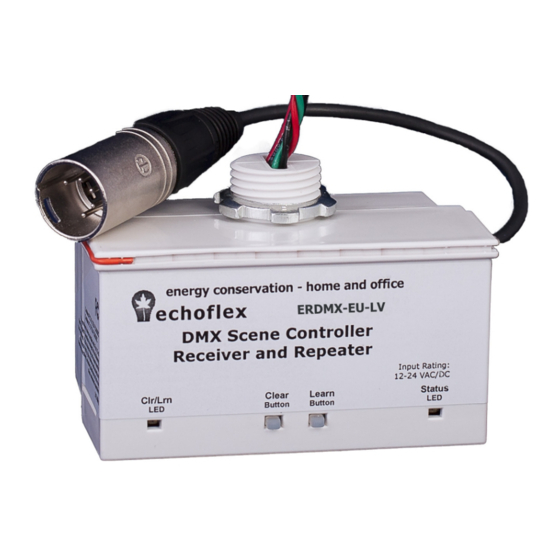

The Echoflex Solutions DMX Scene Controller (ERDMX-E) controls DMX512
compatible lighting by recalling user recorded lighting presets. The ERDMX-E
supports up to eight presets of 48 channels.
As a lighting controller, the UADMX controls lights based on switch actions from
a linked Echoflex wireless switch.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Technoflex ERDMX-E
- Page 1 This guide covers models ERDMX-EU-LV which has a 902MHz radio. The Echoflex Solutions DMX Scene Controller (ERDMX-E) controls DMX512 compatible lighting by recalling user recorded lighting presets. The ERDMX-E supports up to eight presets of 48 channels. As a lighting controller, the UADMX controls lights based on switch actions from...
- Page 2 Controller Operation The DMX Scene Controller allows for wireless dual switches to recall pre-recorded scenes, controlling DMX fixtures and dimmers. Each DMX Scene Controller supports DMX channels 1-48, with storage capabilities for up to eight scenes. Configuration of the DMX Scene Controller requires no software, instead wireless dual switches are used for scene programming and assignment of which scene is recalled for each switch action.
- Page 3 power. b: Connect the red wire to the incoming positive AC or DC power 12-24 DC+ ( (D+) DMX D EVICE (D-) 12-24 DC- ( LACK BLACK THERS REEN SHIELD RANGE ANTENNA WIRELESS TO DMX S CENE ONTROLLER OTHER DEVICES ONTROLLER ERDMX PIN XLR...
- Page 4 lights to indicate the controller is in “Learn Mode”. b: Press and release the station toggle switch based on the graphic below that will determine which scenes the DMX controller will recall. The LEARN LED will go out acknowledging a successful Link operation. SCENARIO #1 SCENARIO #2 Press and...
- Page 5 User defined scenes can be recorded to the DMX Scene Controller using the DMX snapshot mode. Scene Recall Scene recall is dependent on how you have linked your dual switches as described in the graphic below and in the previous section: Linking Wireless Dual Switches.
- Page 6 Press and release buttons 1 and 3 (at the same time) on the linked Dual Switch. Press and release buttons 2 and 4 (at the same time), twice. Press and release buttons 1 and 3 (at the same time). The Status LED on the DMX Scene Controller will stop flashing and the current DMX output will stop.
- Page 7 Step 7: Return to Scene Recall Mode. Press and release buttons 1 and 3 (at the same time) on the linked Dual Switch Press and release buttons 2 and 4 (at the same time), twice. Press and release buttons 1 and 3 (at the same time). The “Status LED”...
- Page 8 Regulatory Statements FCC Part 15.231 Contains FCC ID: SZV-TCM320U The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (I.) this device may not cause harmful interference and (ii.)this device must accept any interference received, including interference that may cause undesired operation.
