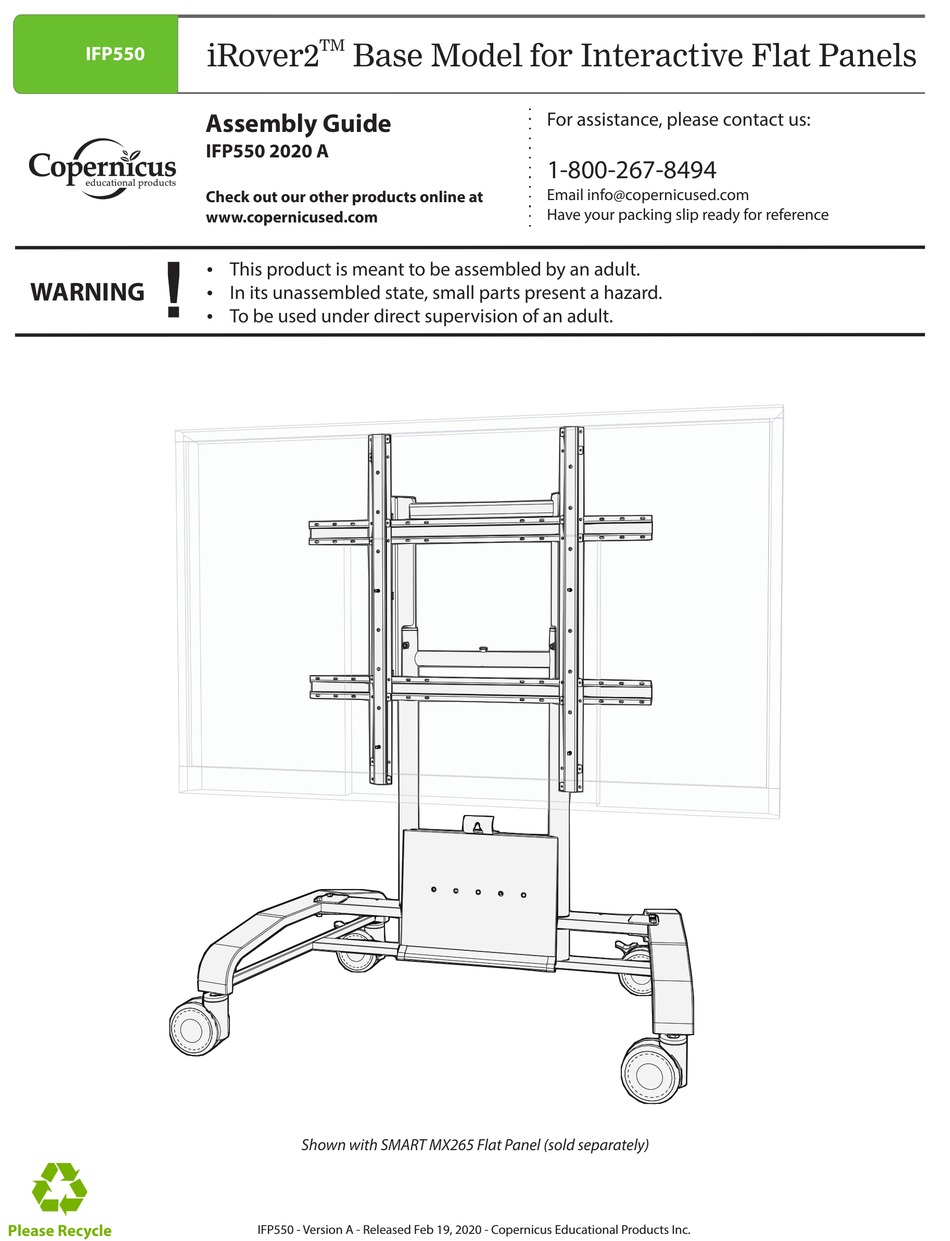

iRover2
Base Model for Interactive Flat Panels
Assembly Guide
IFP550 2020 A
Check out our other products online at
www.copernicused.com
This product is meant to be assembled by an adult.
Ÿ
In its unassembled state, small parts present a hazard.
Ÿ
To be used under direct supervision of an adult.
Ÿ
Shown with SMART MX265 Flat Panel (sold separately)
IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Advertisement
Related Manuals for Copernicus iRover2 IFP550
Summary of Contents for Copernicus iRover2 IFP550
- Page 1 In its unassembled state, small parts present a hazard. Ÿ To be used under direct supervision of an adult. Ÿ Shown with SMART MX265 Flat Panel (sold separately) Please Recycle IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
- Page 2 To validate your warranty, submit the ON-LINE form at www.copernicused.com Component Frame Enter a drawing to win a Copernicus Product for your classroom at the same time! Warranty Warranty IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
- Page 3 72 consecutive hours. Turn off power strip before unplugging. Power Strip Specifications Read the electrical specifications of any electronic equipment you are using with your Copernicus products. Failure to read these specifications and follow their instructions could result in damage to your equipment or personal injury.
- Page 4 #10-24 x 1/2” Self Tapping Screw (430039) (4302012) Metric hardware for VESA Mounting M6 x M6 x 20mm M x 15mm M8 x 25mm (432151) (43222) (432764) (432765) IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
- Page 5 Check out some of our Please call the reseller that you bought the product from first other great products! (reseller information can be found on your packing slip). www.copernicused.com IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
-
Page 6: Install Casters
Install locking casters on back of unit. Tighten using supplied Caster Wrench. Keep wrench with unit. Casters must be tightened every 6 months for proper (Back) maintenance. (Front) IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc. - Page 7 Measurements are approximate and will vary depending on your flat panel. Secure Mounting Frame 10” of height adjustment Remove appliance upon assembly tape from bushings before installing Mounting Frame Do NOT use these bottom holes IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
- Page 8 VESA screws. (Showing SMART MX265 Flat Panel) (4x) (4x) IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
- Page 9 Do not secure in these holes, they are used for attaching an optional soundbar mount Install screws in holes with threads, only 2 of 4 holes will have threads IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
- Page 10 2-Person Task Secure Flat Panel To Cart Insert all 4 adapters into keyholes. Insert all 4 Safety Screws Lock all casters before attaching flat panel to cart IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
-
Page 11: Final Assembly Checks
Check entire assembly for loose parts; tighten all casters, bolts, screws and nuts Tighten all casters using supplied Caster Wrench. Keep wrench with unit. Casters must be tightened every 6 months for proper maintenance. IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc. - Page 12 When moving your iRover Interactive Flat Panel Cart Fixed Height through a door ensure that the unit is shorter than the height of the door. Must be lower than doorway IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
