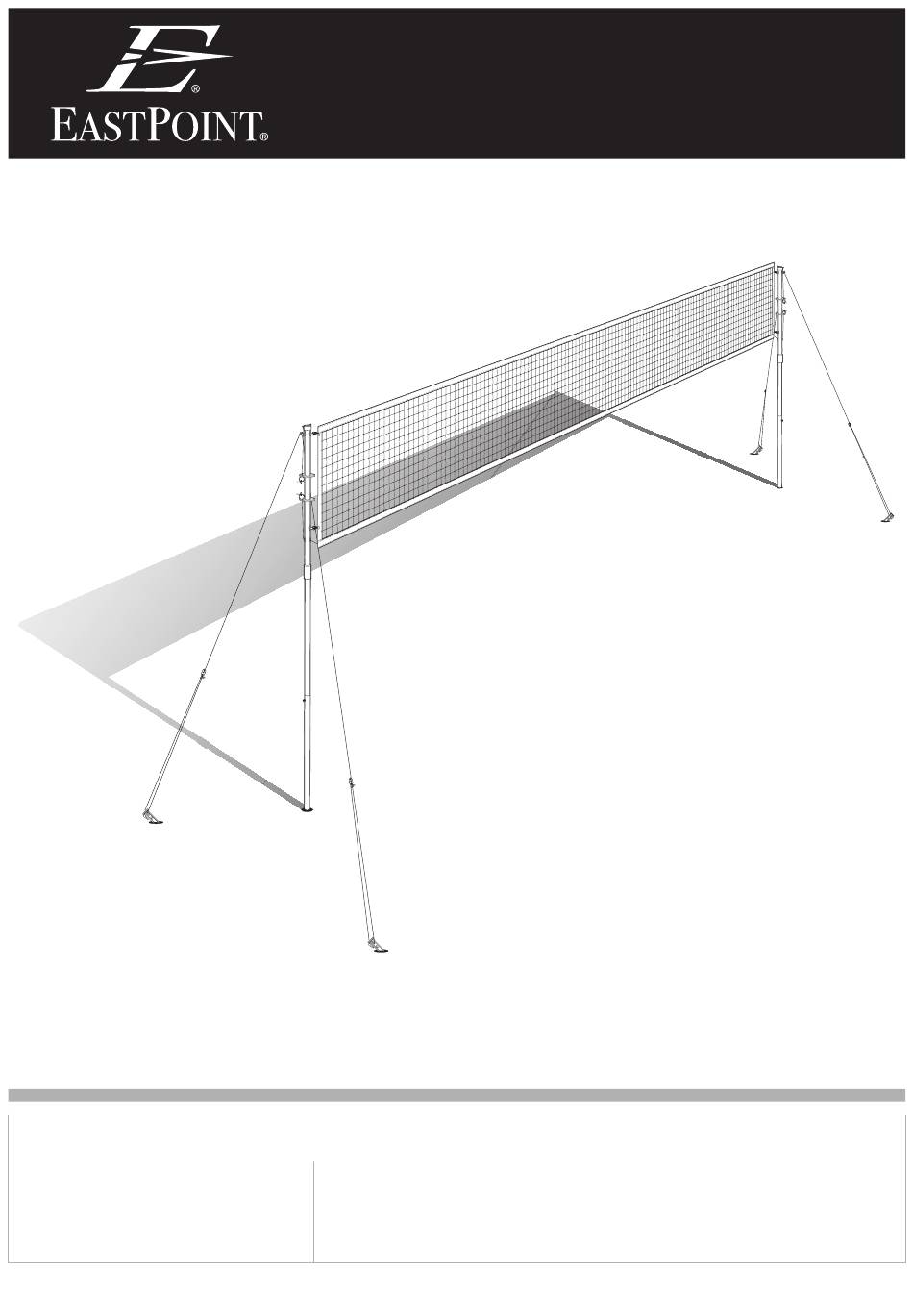

- Page 1 NET SYSTEM US PATENT # 13/098431 Assembly Instructions Net System 1-1-23620 CONTACT INFO Hours Technical Support Monday to Friday Email us at : consumerservice@eastpointsports.com (9am to 5pm EST) Visit us at: www.eastpointsports.com Call: 973-585-4747 www.eastpointsports.com...
-
Page 2: Parts Identifier
TOOLS Required • 1 - Rubber Mallet (for Ground Stakes) - Not Included How to use the PARTS IDENTIFIER Before you begin assembly, please make sure that you have all the parts listed and in the correct quantities. This will ensure the quickest and most organized assembly. - Page 3 ASSEMBLY INSTRUCTIONS Net Assembly for Competitive Volleyball (96in / 2.44m) START BEFORE BUILDING - Please inspect and lay out all your PARTS All parts and accessories are listed in the Please review the Parts Identi er. Parts Identi er and make sure that you have all parts before beginning...
- Page 4 STEP 3 COMPONENTS QTY. NOTE: Twist the Key Lock Step 2 Assembly into place. Then slide the Key Lock Tension Adjuster Ring down the Poles. Tension Adjuster Ring Step 2 Assembly Repeat for second Pole Set. STEP 4 COMPONENTS QTY. NOTE: Twist the Key Locks Step 3 Assembly...
- Page 5 Step 5 Assembly STEP 6 COMPONENTS QTY. NOTE: Attach Step 5 Step 4 Assembly Assembly to Step 4 Assembly with the Step 5 Assembly elastic loop. Repeat for both sides. Step 4 Assembly STEP 7 COMPONENTS QTY. NOTE: Attach the Step 6 Assembly Pole Cap.
- Page 6 STEP 9 COMPONENTS QTY. NOTE: With 2 Adults place Step 8 Assembly Step 8 Assembly Pole Stabilizer into the ground using the Pole Stabilizers. Step 8 Assembly STEP 10 COMPONENTS QTY. NOTE: Attach the center Step 9 Assembly NOTE: Rubber of the Guide Ropes Step 9 Assembly to the top Key...
-
Page 7: Top View
STEP 12 COMPONENTS QTY. NOTE: Adjust Guide Ropes Step 11 Assembly and Tension Adjuster Balls as needed. Push down to tighten top of Net. Push up to tighten bottom of Net. Step 11 Assembly STEP 13 HAVE FUN! Consult Rule Book for court size and game rules for Volleyball. - Page 8 ASSEMBLY INSTRUCTIONS Net Assembly for Competitive Volleyball (84in / 2.13m) STEP 1 NOTE: With two Adults (one at each end of the Net), push in the Pin Lock from Hole. Lower the Poles down until the Pin Lock clips into Hole. STEP 2 NOTE: Adjust Guide Ropes as needed.
- Page 9 STEP 3 NOTE: Adjust Guide Ropes and Tension Adjuster Balls as needed. Push down to tighten top of Net. Push up to tighten bottom of Net. STEP 4 HAVE FUN! Consult Rule Book for court size and game rules for Volleyball. TOP VIEW...
-
Page 10: Limited Warranty
Limited Warranty As described in and as limited by this Limited Warranty, EastPoint Sports Ltd., LLC (the “Company”) warrants this Product to be free from defects in workmanship and materials for a period of 90 days from the date of original purchase. The term defects shall mean any imperfections that impair the use of the product. The Company reserves the right to request con rmation of Proof of Purchase when requesting parts or service in order to con rm that this Product is within its warranty period and terms. - Page 12 20 Commerce Boulevard Succasunna, NJ 07876 • 1-973-585-4747 PRINTED IN CHINA 1-1-23620 IM 185.186...
