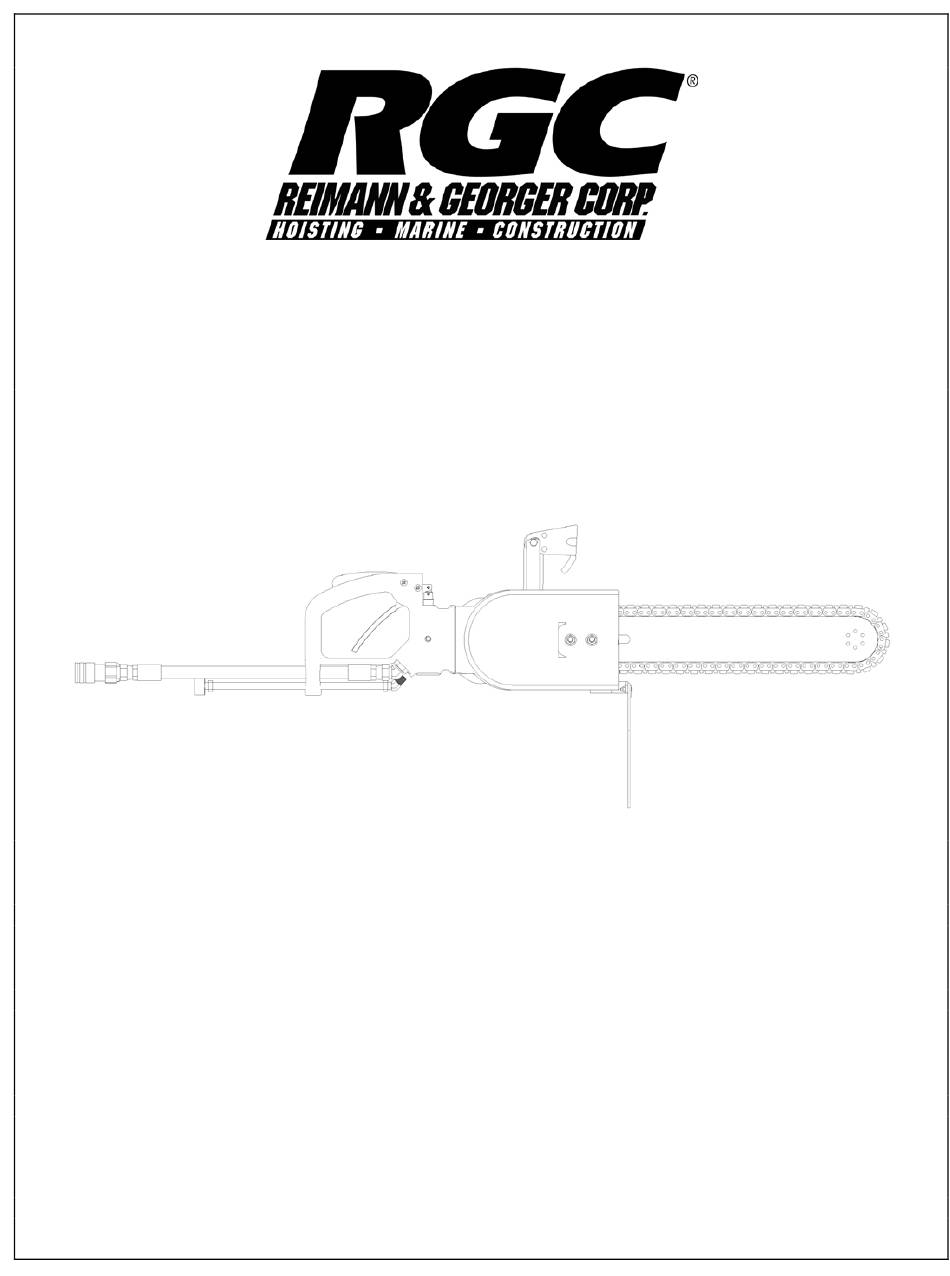

- Page 1 C120 HYDRACUTTER INSTRUCTIONS REIMANN & GEORGER CORPORATION CONSTRUCTION PRODUCTS BUFFALO, NY P/N 6129006 04/10/2019...
-
Page 2: Table Of Contents
PAGE SAFETY ..........................1 Introduction ..........................1 Safety Definitions ........................1 Power Source and Saw Safety Labels ..................1 C120 HydraCutter Safety Rules ....................1 SPECIFICATIONS ....................... 3 Introduction ..........................3 Technical Data ......................... 3 Recommended Hydraulic Oil....................4 Nameplate and Serial Number Tag ..................4 OPERATION ......................... - Page 3 Sprocket Assembly ......................... 12 Sprocket Wear Measurement ....................12 C120 HydraCutter Handle & Valve Assembly............... 23 C120 HydraCutter Assy Right Side View (Bar Side) ............. 24 C120 HydraCutter Assy Left Side View (Motor Side) ............25 RGC CONSTRUCTION PRODUCTS PHONE: (716) 895-1156...
-
Page 4: Safety
1 SAFETY 1.1 INTRODUCTION Your Reimann & Georger Corporation C120 HydraCutter has been engineered to provide sawing performance, long term economics and safety advantages that no other type can match. However, even a well-designed and well-built saw can malfunction or become hazardous in the hands of an inexperienced and/or untrained user. Therefore, read this manual and related equipment manuals thoroughly before operating your saw to provide maximum safety for all operating personnel, and to get the maximum benefit from your equipment. - Page 5 11. Always carry the saw in its de-energized state. 12. Keep the saw handles dry, clean, and free of oil or fuel. 13. Do not start cutting without first de-energizing electrical wiring near the cutting site or imbedded in the concrete. 14.
-
Page 6: Specifications

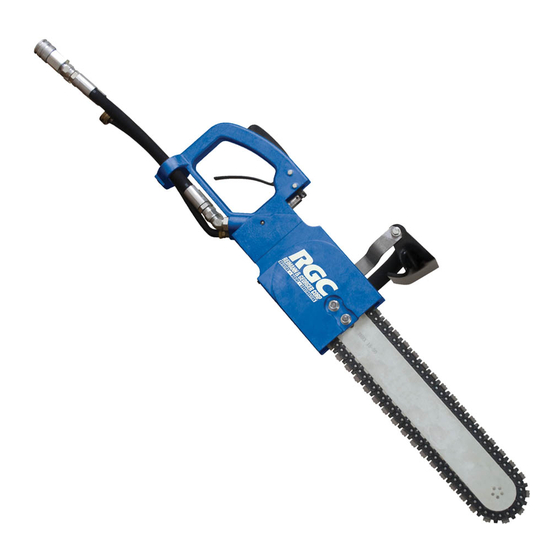

2 SPECIFICATIONS 2.1 INTRODUCTION Your Reimann & Georger Corporation C120 HydraCutter hydraulic hand-held chainsaw is a rugged versatile tool that makes clean, fast, precise, and straight cuts through concrete, reinforced concrete, masonry, stone, and other aggregates. As with most hydraulic tools, the hydraulic system requirements detailed in the following sections must be met but not exceeded to support tool performance and longevity of equipment. -
Page 7: Recommended Hydraulic Oil
Many types of compatible hydraulic oil are available through your local dealer/distributor. As an original equipment manufacturer, RGC uses a Grade ISO VG 32 hydraulic turbine oil. Hydraulic oil types are too numerous to list in this manual. If you have any question concerning the type of oil suitable for C120 operation, please consult your local supplier or Reimann &... -
Page 8: Operation
3 OPERATION 3.1 CHAIN SELECTION Correct chain type selection is critical in maximizing chain life and cutting performance. Refer to the table below as a guide in the chain selection. However, no direct rule determines which chain type is optimum because many material factors also influence selection. -
Page 9: Checking Water Supply
The water pressure at the saw must be between 50–160 psi (3–9.6 bar) with a flow rate of 2.5 gpm (9 lpm). For best performance, use an RGC in-line water pump. Permanent chain, bar, and drive and nose sprocket damage will occur if the saw is run without water, or with a water volume or pressure that is too low. -
Page 10: Planning The Cut
Figure 3-1. Proper Chain Mounting The chain MUST be installed with the bumper/drive link tang arrow pointing towards bar nose on top side of bar. See Figure 3-1. Backward (reverse) chain installation can cause excessive vibration, rough cutting, reduced chain life, and chain breakage Check for proper chain tension as described in Chapter 4. -
Page 11: Breaking In A New Chain
For long vertical or horizontal cuts, the cutting line can be first scored with a groove using the nose of the bar. The groove will help guide the bar for a straight cut. 3.4 BREAKING IN A NEW CHAIN Before using a new chain, the cutting segments must be dressed by cutting in an abrasive material such as cinder blocks or bricks. - Page 12 WARNING: NEVER DISCONNECT ANY HYDRAULICALLY OPERATED PART OF THE SAW OR REMOVE HYDRAULIC COMPONENTS, LINES, OR FITTINGS WHILE THE POWER SOURCE IS RUNNING OR WHENEVER THE HYDRAULIC FLUID IS HOT. Allow the water to drain out of the saw by pointing the nose down and triggering the valve on. If available, blow the water out of the saw with compressed air.
-
Page 13: Inspection And Maintenance
4 INSPECTION AND MAINTENANCE 4.1 GENERAL MAINTENANCE RULES Hydraulic fluid can become contaminated after extended periods of use which can cause restrictions in the system. Check to see that the fluid is clean, and change at recommended intervals to extend saw’s life. Refer to the respective manual for maintenance information on the hydraulic power source. - Page 14 Check the clearance between the nose of the bar side-plates and the chain chassis; when new, there is 1/32” clearance. The bar must be replaced before the chain chassis begins to ride directly on the nose of the bar side-plates. Refer to Figure 4-2. Figure 4-2 Nose Sprocket Clearance The bottom rail wears at a much faster rate than the top rail because of the downward motion during cutting.
-
Page 15: Drive Sprocket Inspection And Installation
4.3 DRIVE SPROCKET INSPECTION AND INSTALLATION Refer to Figure 4-3. The sprocket assembly consists of external retaining ring (#28) and drive sprocket (#27). Proceed as follows: Check the wear marks on the driving face. Replace the drive sprocket before the wear marks are deeper than 1/32” as shown in Figure 4-4. -
Page 16: Chain Inspection And Maintenance
4.4 CHAIN INSPECTION AND MAINTENANCE Inspect the chain before mounting and before each use. Ensure there are no missing segments or bumpers. There must be 49 segments with a bumper link between each segment. Ensure there are no signs of cracking, overheating, or other damage. Check the wear of the chain chassis, typically referred to as “chain stretch”, by tensioning the chain as described in Section 4.5. -
Page 17: Troubleshooting
5 TROUBLESHOOTING The following chart is intended to assist with troubleshooting the C120 HydraCutter. While not all inclusive, the chart outlines the most common causes of a problem and the recommended course of action. Consult your hydraulic power supply manual for troubleshooting this part of your system. - Page 18 Excessive vibration Segment(s) broken or missing Replace chain. and rough cutting. from chain. Maintain chain tension as described in Section 4.5. Loose chain tension. Tighten bolts as described in Section 4.5. Loose bar mounting bolts. Inspect chain as described in Section 4.4 and 4.5 before re- Chain installed backwards on installing.
- Page 19 Saw wedged tightly Excessive feed force when Turn off power supply; then loosen chain tension and remove in plunge cut. exiting back side of plunge cut. saw from cut. Saw is binding in Bar is bent or twisted. Replace bar. the cut.
-
Page 20: Factors Affecting Chain Life
6 FACTORS AFFECTING CHAIN LIFE Optimum performance from your chain saw will depend largely on selecting the proper chain for the application. If the cutting medium is too soft for the chain rating used, you may get fast chain wear. If the cutting medium is too hard for the chain rating used, you will get segment glazing and/or very poor cutting performance. -
Page 21: Operational Factors Affecting Chain Life
Heavy • 5/8” (16 mm) diameter or larger with any center distance • 1/2” (13 mm) diameter or larger with less than 4” (100 mm) center distance • Pre-stressed cable/wire Light • 1/2” (13 mm) diameter with greater than 4” (100 mm) center distance •... -
Page 22: Chain End-Of-Life Modes
Mode of Cutting Plunge vs. Slab—Plunge cutting increases diamond segment wear because both impact and loading increase. Depending on the ratio of plunges and the cutting depth, chain life can be reduced. Buried nose vs. Through cut—When cutting with the bar nose buried in the cut, the slurry increases the wear on both the chain and segment. -
Page 23: Parts List
7 PARTS LIST The following parts list applies to the 12 gpm C120 HydraCutter only. The parts list for the hydraulic power source is in the separate manual supplied for that item. Each item number on the following parts list can be matched with the item number shown on the following assembly drawings. - Page 24 HAND GUARD DECAL 1911210 AUX. HANDLE w/ GRIP ASSY 6539981 MOTOR 12GPM 1939519 MOTOR SEAL KIT 1919916 C120 HYDRACUTTER HAND GUARD STIFFENER 5806317 SHCS 1/4-20 X 3/4 5650911 WATER HOSE ADAPTER (HANDLE) 5804684 ADAPTER 90D 3/4 6050905 HYDR TUBE PRESSURE & RETURN...
- Page 25 1906150 TIP CLEANER WYPO #7 .018-.019 5119938 BEARING SLEEVE 5841075 RIVET 1919910 C120 HYDRACUTTER BAR CLAMP 5896955 WASHER FLAT SAE 1/4" SS 5901820 HOSE 1/4" PUSHLOK "BLACK" 1.92 FT 7419101 GASKET 3/16 X-PROFILE BUNA-N BLACK...
- Page 26 Figure 7-1. C120 HydraCutter Handle & Valve Assembly...
- Page 27 Figure 7-2. C120 HydraCutter Assembly – Right Side View (Bar Side)
- Page 28 Figure 7-3. C120 HydrCcutter Assembly – Left Side View (Motor Side)
- Page 30 LIMITED PRODUCT WARRANTY Reimann & Georger Corporation Hoisting and Construction Products A. LIMITED WARRANTY Reimann & Georger Corporation (the “Manufacturer”) warrants to the original purchaser (the “Buyer”) that all Reimann & Georger Hoisting and Construction products shall be free of defects in material and workmanship for a period of one (1) year from date of original purchase.
- Page 31 ADDITIONAL EXCLUSIONS FROM THIS LIMITED WARRANTY. THIS LIMITED WARRANTY DOES NOT COVER ANY OF THE FOLLOWING: Equipment which has been abused, damaged, used beyond rated capacity, or repaired by persons other than authorized service personnel. Damage caused by acts of God which include, but are not limited to, hailstorms, windstorms, tornadoes, sandstorms, lightning, floods, and earthquakes.
