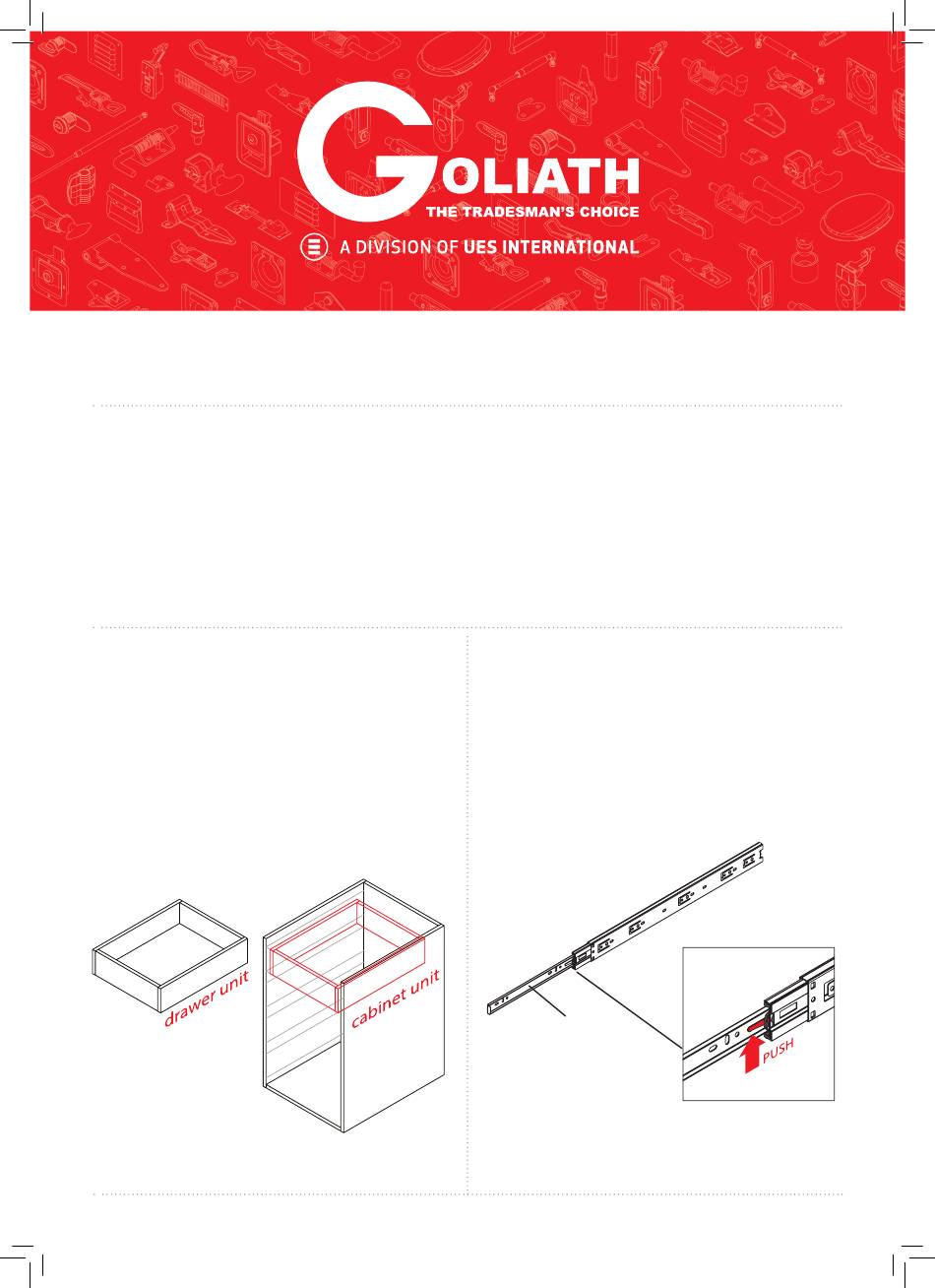

DRAWER SLIDE INSTALLATION GUIDE
Step 0: Before you begin
Make sure the following are present:
Tools: Tape Measure, Pencil, Ruler, Drill/Driver
Materials: Set of two Goliath Ball Bearing Full-Extension Drawer Slides sized to the inside depth of the cabinet.
Step 1: Measure and mark cabinet
Align drawer units to where you want them to be on
the cabinet unit
With a pencil, measure and draw guides for the
positioning of the drawer runners on the cabinet unit.
Do the same for the other side of the cabinet unit.
Step 2: Separating the internal member
Press lever to disconnect and separate internal
member from the rest of the drawer slide. Do this for
both drawer slides.
Internal slide member
www.goliathhardware.com.au
Advertisement
Summary of Contents for UES Goliath Drawer Slide
- Page 1 DRAWER SLIDE INSTALLATION GUIDE Step 0: Before you begin Make sure the following are present: Tools: Tape Measure, Pencil, Ruler, Drill/Driver Materials: Set of two Goliath Ball Bearing Full-Extension Drawer Slides sized to the inside depth of the cabinet. Step 1: Measure and mark cabinet Step 2: Separating the internal member Align drawer units to where you want them to be on Press lever to disconnect and separate internal...
- Page 2 Step 3: Attaching the internal member to drawer unit Install the internal member to the drawer member to the center of the side panel of your drawer unit. Make sure both of the internal slide members are mounted vertically and horizontally parallel. Use the vertical slots to fasten, this will allow you some room for error when adjusting the internal slide member.
