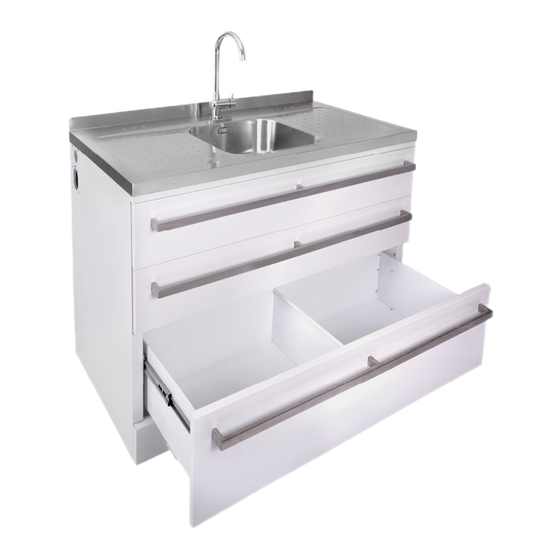

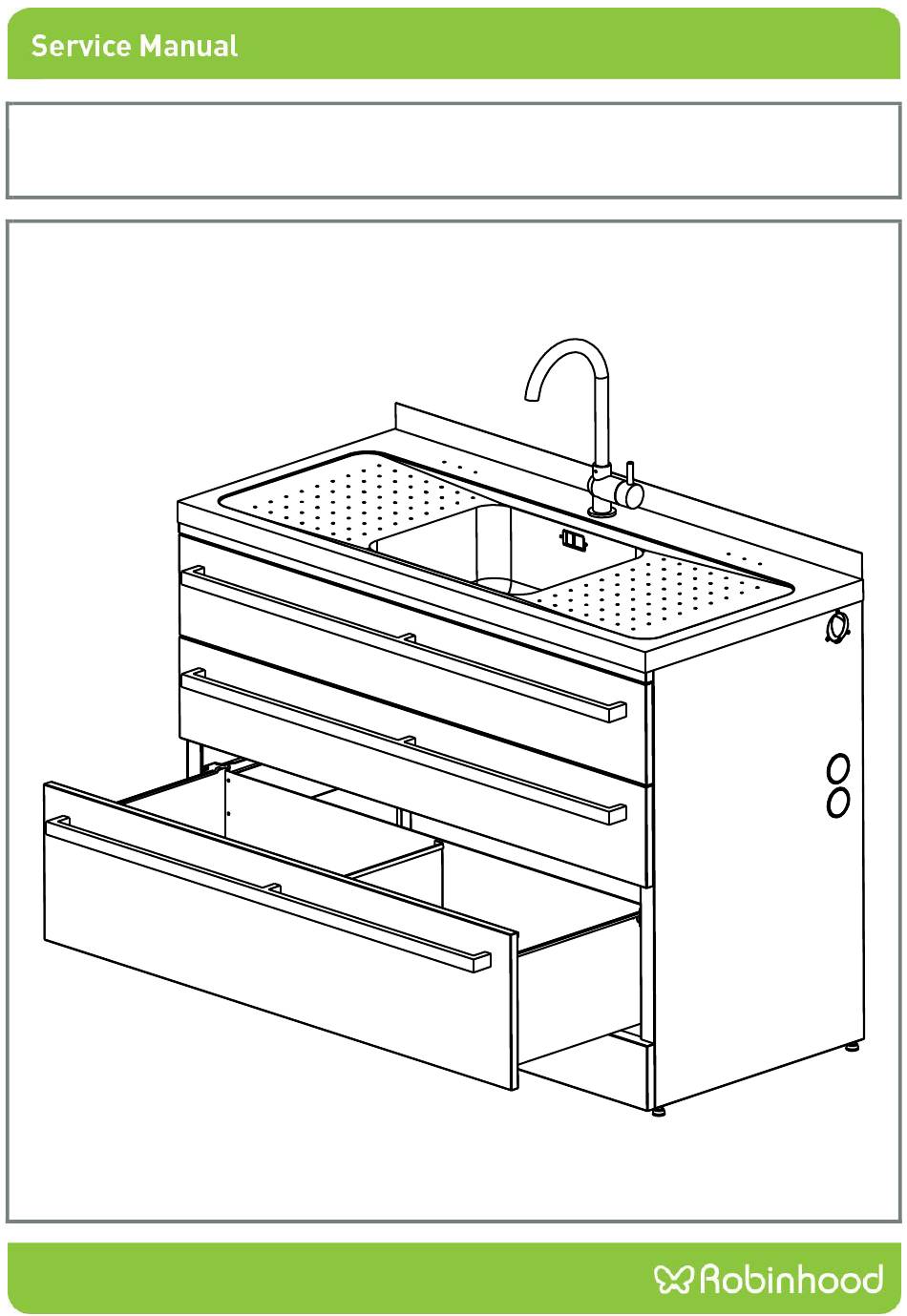

- Page 1 Issue: E Description: ROBINHOOD SUPERTUB WORKSTATION Model Number: ST9000W Page 1 of 10...
- Page 2 Cabinet Page 2 of 10...
- Page 3 Part number Item Description Adjustable foot m8 x 25, including locking nut See item 4 Gromet side panel See item 4 Screw 6 x ¼” (x3) See item 4 Installation kit incl plug (not shown) 751137 Page 3 of 10...
- Page 4 Exploded view drawers Page 4 of 10...
- Page 5 Part number Item Description Top drawer assembly (including rail and runner x 2) 751122 Handle 751113 Top drawer rail and runner(rh/lh set) 751123 Middle drawer assembly (including rail and runner) 751114 Middle drawer rail and runner(rh/lh set) 751115 Bottom drawer assembly (including rail and runner) 751105 Bottom drawer rail and runner(rh/lh set) 751106...
- Page 6 Exploded view plumbing Page 6 of 10...
- Page 7 Part number Item Description Single lever gooseneck tap 751140 Hose flexi tap ½” nut 600mm ST90W 751166 Hose flexi 90 deg ½” nut 750mm 751141 Valve ball 3 way assembly 751132 Knob - red 750909RD Knob - blue 750909BU Washing machine waste inlet 751068WH Spring fixing clip 751070...
- Page 8 Exploded view tap ware spare parts Page 8 of 10...
- Page 9 Part number Item Description Ceramic disc cartridge ST90W 751161 Aerator cartridge ST90W 751162 Aerator ‘o’ ring ST90W 751163 Aerator screw end ST90W 751164 Installation kit for ST90W 751165 Hose flexi tap ½” nut 600mm ST90W 751166 Page 9 of 10...
- Page 10 Notes ECN: 08 099 ECN: 07034 New Zealand Australia Robinhood Ltd Robinhood PTY Ltd Telephone: 0800 760 667 Telephone: 0800 760 667 Facsimile: 0800 276 246 Facsimile: 0800 276 246 Email: enquiries@robinhood.co.nz Email: enquiries@robinhood.com.au Page 10 of 10 www.robinhood.co.nz www.robinhood.com.au...
