Summary of Contents for Tobii Pro Fusion
- Page 1 Pro Fusion User Manual...
- Page 2 Copyright © Tobii Pro AB (publ) The information contained in this document is proprietary to Tobii Pro AB. Any reproduction in part or whole without prior written authorization by Tobii Pro AB is prohibited. Products that are referred to in this document may be either trade- marks and/or registered trademarks of the respective owners.
-
Page 3: Table Of Contents
5 Set up your Tobii Pro eye tracker 5.1 Download and install Tobii Pro Eye Tracker Manager 5.2 Install Pro Fusion in Tobii Pro Eye Tracker Manager 5.3 Mount the eye tracker on a laptop or monitor 5.4 Display setup in Tobii Pro Eye Tracker Manager 5.5 Calibration... - Page 4 8.5 Limitation of liability 9 Technical Specifications 9.1 Eye tracking specifications 9.2 Setup 9.3 Software compatibility 9.4 Hardware versions 9.5 Pro Fusion eye tracker specifications 10 Compliance Information 10.1 CE Compliance 10.2 VCCI Compliance 10.3 General Compliance 10.3.1 FCC interference statement 10.3.2 Industry Canada statement...
-
Page 5: Introduction
Introduction Tobii Pro Fusion is a compact, high performance data collection solution that you can take into the field. Use Pro Fusion when your research takes you to locations and to subjects that would oth- erwise be hard to bring to the lab. You can collect data in schools, hospitals, libraries, and other loc- ations where your subjects are easier to recruit. - Page 6 The Gaze visualization overlaps data only on the Pro Eye Tracker Manager screen while Pro Eye Tracker Manager is open. References in product documentation to Tobii Pro Eye Tracker Manager refer to the latest version available on Tobii Pro’s website.
-
Page 7: System Requirements
This SDK gives the researcher access to the full set of relevant gaze data streams, such as 3D eye coordinates, raw data, pupil data, etc. Third-party software This term refers to any application built on Pro SDK. Pro Fusion User Manual v.2.2... -
Page 8: Safety
Emergency warning Tobii Pro eye trackers are designed to be used only for research purposes. Be aware that due to the low, but possible risk of failure or distraction, the eye tracker should not be relied upon or used in dangerous or critical situations. -
Page 9: Magnetic Field Warning
Personnel. If damaged, do not use the AC power adapter until it has been replaced. Tobii Pro and its agents are not liable for any damages or injuries to a person or property due to incorrect use of the provided accessories. -
Page 10: Overview Of Tobii Pro Fusion

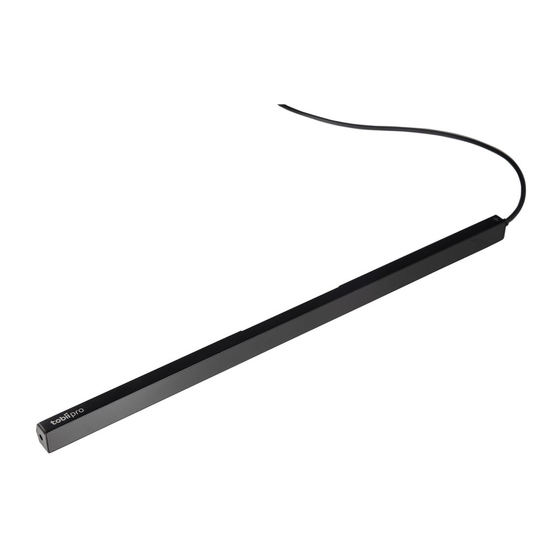

Pro Fusion has a slim design that integrates well with external monitors up to 24 inches and laptop screens. The eye tracker can also be mounted on a tripod and coupled with a scene camera so it can be used in study setups that use real-world stimuli such as physical objects or scenes. -
Page 11: Key Features
Sophisticated image processing algorithms identify relevant features, including the eyes and the corneal reflection patterns. Tobii Pro Fusion is a dual camera system that automatically chooses when to use dark or bright pupil tracking. Complex mathematics is used to calculate the 3D position of each eyeball along with the gaze point (where the participant is looking). -
Page 12: What's In The Pro Fusion Box
What’s in the Pro Fusion box Item Additional information Travel case Stores, protects, and carries Pro Fusion and the included accessories Pro Fusion eye tracker Used for eye tracking Pro Fusion User Manual v.2.2... -
Page 13: Usb And Power Adapter
USB and power adapter Figure 1. The fixed USB cable is on the right side of Pro Fusion and the power supply port is on the left side The left side of the Pro Fusion eye tracker has a jack for plugging in the AC power adapter. -
Page 14: How To Use The Usb Type-A To Type-C Adapter
“right side up” problem, and increased power. If your computer doesnot have a USB Type-C connection, you must use the included USB Type-A to Type-C adapter and the power adapter with your Pro Fusion. Figure 2. USB Type-A to Type-C adapter What to do: 1. -
Page 15: Attach The Adapter Plug
When storing the AC power adapter in the eye tracker case, you will need to remove the adapter plug so that it fits in the case. You may also need to exchange one plug adapter for another if you travel with your eye tracker to another country. Pro Fusion User Manual v.2.2... -
Page 16: Tobii Pro Accessories
1. Use your thumb to draw the latch underneath the AC power adapter down to release the clip. 2. Remove the adapter plug starting by withdrawing the lower part first and then the upper part. Tobii Pro accessories Find out more about Tobii Pro products and accessories on tobiipro.com. 4.10 Additional software options Pro Lab... -
Page 17: Set Up Your Tobii Pro Eye Tracker
3. If your Pro Fusion is connected to the USB port but doesn’t appear in the list of connected eye trackers, click the plus (+) symbol in the upper right corner to install (or reinstall in some cases) the required drivers. - Page 18 5. Peel the adhesive tape off the mounting bracket and mount it on the bezel so that your Pro Fusion is as close to the bottom of the screen as possible without covering the screen. Press the bracket against the bezel for 30 seconds and wait one hour before attaching the eye tracker.
- Page 19 Figure 6. Place the mounting bracket on the bezel so that the Pro Fusion is as close to the bot- tom of the screen as possible without covering the screen.
-
Page 20: Display Setup In Tobii Pro Eye Tracker Manager
3. Select Regular setup and click the Next button. 4. If multiple screens are used, select the screen that has the Pro Fusion attached to its bezel. 5. Enter the position of the eye tracker in relation to the screen. Use the radio buttons to select whether the eye tracker is positioned under or over the screen and enter the measurement in millimeters. -
Page 21: What Calibration Does
Tobii Pro Eye Trackers use an individual cal- ibration procedure to optimize their gaze estimation algorithms (i.e. the 3D eye model) and account for this variation. -
Page 22: Change Pro Fusion's Frequency
Change Pro Fusion’s frequency You can change Pro Fusion’s frequency using Tobii Pro Eye Tracker Manager or your analysis soft- ware, for example, Tobii Pro Lab. In Pro Eye Tracker Manager, use the Frequency drop-down selector on the Overview tab to select an available frequency. -
Page 23: Display Setups
Display Setups Standard setup The standard setup for using Tobii Pro Fusion is with a screen of maximum size 24". The eye tracker is attached below the screen whether it is a laptop screen or separate monitor. For more information,... - Page 24 Figure 8. Tobii Pro Fusion with the Tripod Stand and projected screen How to set up Pro Fusion with a large monitor or projector screen: 1. Select a suitable location and set up the monitor/screen. 2. Set up the monitor/screen and connect it to the laptop.
-
Page 25: Start Experimenting
Keeping your eye tracker software and display setup updated Updates From time to time, Tobii Pro releases updates for an eye tracker’s applicable driver and firmware in order to improve performance and/or introduce new functionalities. Please check the Tobii Pro web- site regularly for news and information about updates about your eye tracker. -
Page 26: Customer Support
They are most familiar with your personal setup and can best help you with tips and product training. Read more about Tobii Pro’s Support options, our in-depth learning articles, and much more in sec- tion Support, Learning Center, and Warranty. -
Page 27: Product Care
Follow your local regulations for the proper disposal of electrical and electronic equipment. Limitation of liability Except where prohibited by law, Tobii Pro AB is not liable for any loss or damage arising from the use or misuse of a Tobii Pro eye tracker or the mounting plate, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence, or strict liability. -
Page 28: Technical Specifications
* Dark pupil tracking is supported in all sample frequencies. Bright pupil tracking mode is supported at 60 and 120 Hz. ** Tobii Pro uses an extensive test method to measure and report performance and quality of data. Please download the... -
Page 29: Setup
(trackbox) at the specific distance. Software compatibility Software and framework compatibility Tobii Pro Lab Tobii Pro Eye Tracker Manager Tobii Pro SDK Any application built on the Tobii Pro SDK Operating system Microsoft Windows, Apple Mac Hardware versions 120 Hz 250 Hz... - Page 30 Power consumption Typical power consumption: 4.3 W Max. rated power consumption: 9 W Power options Directly via USB Type-C connector, or with provided AC power adapter, when using a computer with USB 2.0 Type-A port Pro Fusion User Manual v.2.2...
-
Page 31: Compliance Information
10.3 General Compliance 10.3.1 FCC interference statement Pro Fusion has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 32: Emc Compliance
62368-3 (US and Canadian Standard) J60950-1(H22) (Japanese Standard) GB 4943.1-2011 (Chinese Standard) 10.3.5 EMC compliance Pro Fusion complies with the following standards: EN 55032:2015, Electromagnetic compatibility of multimedia equipment. Emission require- l l l ments (European standard EN 55035:2017 Electromagnetic compatibility of multimedia equipment - Immunity require-... -
Page 33: Appendix A Support, Learning Center, And Warranty
Tobii Pro. In order to receive assistance as quickly as possible, make sure you have access to your Tobii Pro device and, if possible, an Inter- net connection. You should also be able to supply the serial number of the device, which you will find on a sticker on the back or bottom of the device. -
Page 34: Appendix B Limitations And Considerations
Limitations and considerations Intended use Tobii Pro eye trackers are intended to be used in research activities about human beha- vior including eye movements, in a dry and dust free indoor environment. The product should only be used as described in this User’s Manual. Please read the User Manual and other supplied documentation thoroughly before using the product. -
Page 35: Appendix C Glossary
The stated measurement is the typical time to tracking recovery once the eyes return to the field of view of the cameras again, i.e. when the subject is within the trackbox limits, with the Pro Fusion User Manual v.2.2... - Page 36 These images are processed by algorithms that identify the pupil and the reflections caused by the illuminators. This information is then combined with different parameters from a 3D model of the eye and used to map the gaze onto the stimulus. Pro Fusion User Manual v.2.2...
- Page 37 Copyright ©Tobii AB (publ). Not all products and services offered in each local market. Specifications are subject to change without prior notice. All trademarks are the property of their respective owners. Support for Your Tobii Pro Device Get Help Online Visit Tobii Pro Connect for help with your Tobii Pro device. It contains the latest information about contacting Support, links to our Learning Center, and much more. connect.tobiipro.com...
