Summary of Contents for welldana Elba

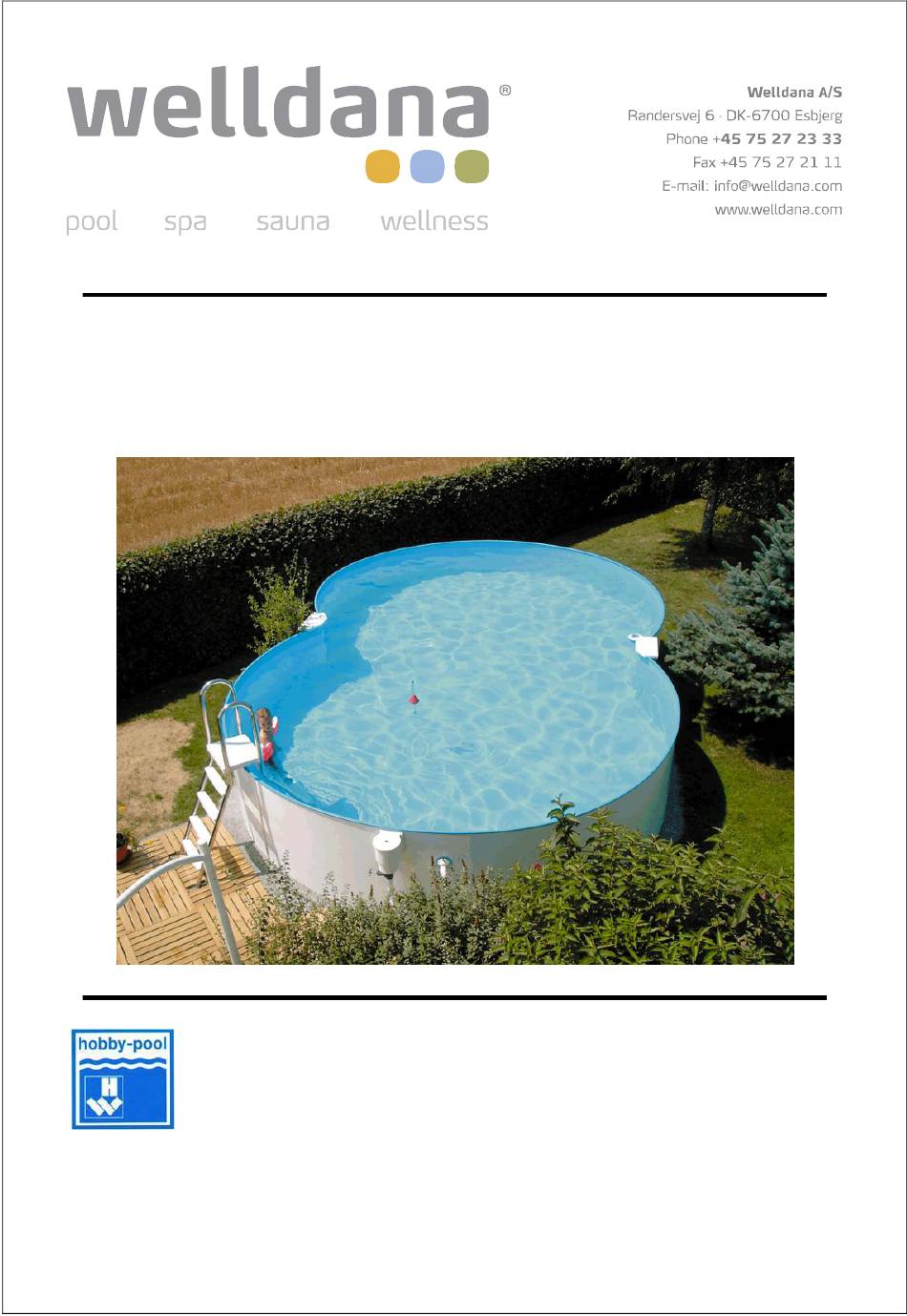

- Page 1 Installation Manual ELBA POOL We reserve the right to make any product changes. COPYRIGHT: WELLDANA A/S English Version 2014 Version 1.0...
- Page 2 *Sidewall for pools 1, 5 m in depth, divided in 2 sections each. 1.2 FIGURE-EIGHT-SHAPED POOL COMPONENT LIST Pieces per swimming pool No. . D escription 3,20x5,25 3,60x6,25 4,60x7,25 5x8,55 side wall support ELBA pool ELBA pool ELBA pool A pool base support side wall Antal delar till dom olika modellerna...
- Page 3 GENERAL GUIDELINES applying to: round-shaped pools, figure-eight-shaped pools, oval-shaped pools There are a few important guidelines before you start to assemble your pool: The most important part of the pool is the foil lining. Swimming pool-foil is a thermoplastic material which expands °...
- Page 4 The assembly of an embedded pool is subject to the same principles as the above-ground pool. Only at the begin ning the pool site will be excavated according to the dimensions of the ground plan plus space for a lean concrete layer.
- Page 5 Excavation Basin contour For the excavation of the site refer to item 6.1. The excavation looks like the illustration opposite. When the backfill of the round sides is not made with lean concrete, but as a wall, you have to excavate a suitably larger workspace. -"-j--- - - --- - ,p'----1 The depth of the excavation is 110 respectively 140 cm plus the...
- Page 6 PROTECTIVE BASE PAD applying to: round-shaped pools, figure-eight-shaped pools, oval-shaped pools Attention! Do not drag the lining across the floor. This can cause damage and, if this causes leaking, will be excluded from the guarantee accordingly. Always use an upholstery with fleece (synthetic fleece, thickness 5 mm).
- Page 7 SETTING UP THE SIDE WALL applying to: round-shaped pools, figure-eight-shaped pools, oval-shaped pools �:1 We recommend first to assemble the ladder as you will need it for the rest of the building time to climb inside the pool. Furthermore, put the bag with the lining inside the pool before you start assembling the pool wall.
- Page 8 12. FILLING THE POOL WITH WATER applying to: round-shaped pools, figure-eight-shaped pools, oval-shaped pools Take care that the welding seam of the lining between bottom and wall is placed exactly in the corner bottom/wall of the pool. Remove the last wrinkles before filling the pool. Again, make sure that the liner lies tightly at the walls and that there are virtually no wrinkles left.
- Page 9 15. ASSEMBLING SKIMMER, INLET NOZZLE, SPOTS AND OTHER FITTINGS applying to: round-shaped pools, figure-eight-shaped pools, oval-shaped pools Prior to the assembly fill the pool with water up to 10 cm be low the height where you want to install the concerned fit tings.
- Page 10 17. POOL CARE Your swimming pool has a PVC-foil lining. Normal dirt can be removed easily with water and a soft brush . Gross contamination can be removed with Edge Cleaning Agent (item No. 502010848) or Base Cleaning Agent (item No. 502010849).
