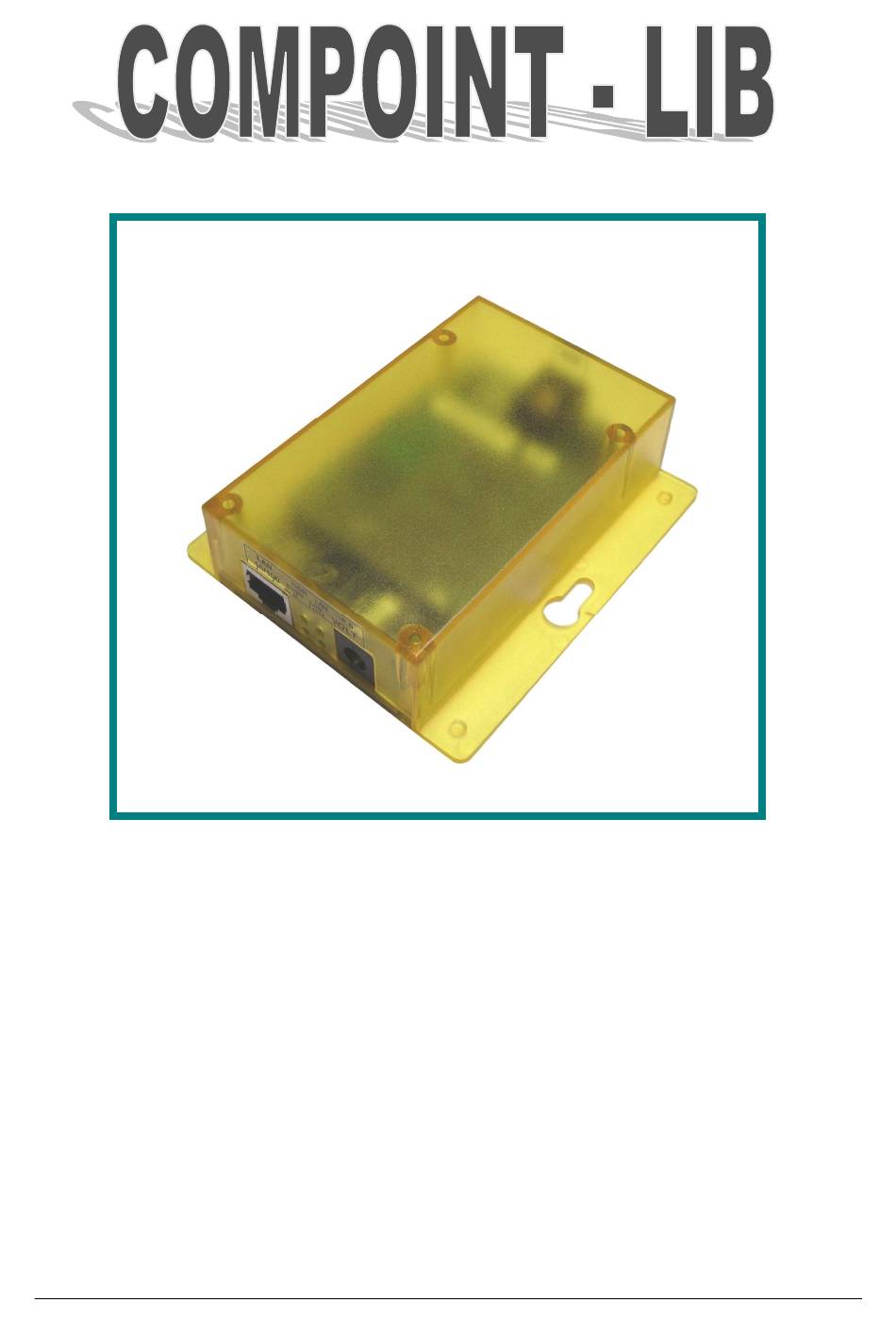

LAN – ISDN - BRIDGE
COMPOINT-LIB manual, Version 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPOINT-LIB and is the answer not in the manual?

Questions and answers

Summary of Contents for AK-NORD COMPOINT-LIB

  • Page 1 LAN – ISDN - BRIDGE COMPOINT-LIB manual, Version 1.0...

  • Page 2: Table Of Contents

    Description of the interfaces............................4 LEDs ....................................4 TCP/IP Port description..............................5 TCP/IP Network..............................6 Example of a TCP / IP Network with COMPOINT-LIB....................6 COMPOINT-LIB in the TCP/IP Net ..........................7 Setting up the IP address with DHCP..........................9 Configuration with TELNET.......................... 11 Configuration of the COMPOINT-LIB ...........................11...

  • Page 3: Compoint - Lib

    TCP/IP, Telnet, ICMP, DHCP, DNS, DDNS, ARP, BOOTP,HTTP,UDP ISDN connection: ISDN RJ45 ISDN protocols: V.110 or V.120, X.75, X.25-network, ISDN-X.31(D-channel),ISDN X.25 (B-channel) Special features: DatexP Packet-Mode DatexP Access Rerouting X.25 with 10 virtual connections at a time COMPOINT-LIB manual, Version 1.0...

  • Page 4: Description Of The Interfaces

    It had been tried to establish an ISDN connection, but there is no connection to the ISDN – BUS (no ISDN connection / ISDN plug) LED1 and LED2 are flashing alternatly once per second: There is no communication with the ISDN module COMPOINT-LIB manual, Version 1.0...

  • Page 5: Tcp/Ip Port Description

    Description of the special ports: 1002 / 3000 / 6500 / 9100 / 10001: The flash update for the ISDN interface takes place over these ports Important: All ports mentioned here must not be used for the “Outgoing Calls“. COMPOINT-LIB manual, Version 1.0...

  • Page 6: Tcp/Ip Network

    TCP/IP Network Example of a TCP / IP Network with COMPOINT-LIB. Workstation 1 Workstation 1 IP-No = 149.213.015.002 IP-No = 149.213.016.002 Server No1 Server No2 Terminal1 IP-No = 149.213.015.001 IP-No = 149.213.016.001 Terminal4 IP-No = 149.213.015.003 IP-No = 149.213.016.003 Router 1...

  • Page 7: Compoint-Lib In The Tcp/Ip Net

    224 - 239 for the first value of the IP number. The types of addressing are called Multicast and are used for more recent IP protocols. On a TCP/IP network the COMPOINT-LIB has to be assigned with a clear and correct IP number according to the above mentioned classes...
  • Page 8 TCP/IP Network Functional principal of the COMPOINT-LIB in the TCP/IP network For the communication of 2 participants of a TCP/IP network over different types it is decided how the Subnet mask had been defined. Each participant of the network determines with this mask which other IP participant can be reached. The target address will this way be linked with the Subnet mask bit by bit AND –...

  • Page 9: Setting Up The Ip Address With Dhcp

    (static assignment) or can be variable within an IP address space according to configuration of the DHCP server. The additional properties of the DHCP such as Lease Time, etc. are completely supported by the COMPOINT-LIB. Please find following a typical entry on a Windows NT DHCP server:...
  • Page 10 TCP/IP Network Setting up the IP address with DHCP. Setting up an address space from 149.213.100.100 to 149.213.100.200 COMPOINT-LIB manual, Version 1.0...

  • Page 11: Configuration With Telnet

    The program “TELNET” is available. EXAMPLE: The settings of the COMPOINT-LIB need to be controlled. Start the program Telnet. You will find it either on the PC in the directory “WINDOWS” or it will be available on a system ( OS/2 , Linux ) by entering “TELNET"...
  • Page 12 Configuration with TELNET Configuration of the COMPOINT-LIB You have enter the correct IP address of the Compoint-LIB, then the message “Password Menu” will appear on the screen. Enter “XT” when the password is requested. =========================== PASSWORD MENU =================================== Software Low...
  • Page 13 Configuration with TELNET Configuration of the COMPOINT-LIB Point 1, the “Ethernet Menu“ =========================== ETHERNET MENU =================================== 1 = MAC - Address = 08-BB-CC-00-90-01 2 = IP - Address = 100.100.100.155 3 = SubnetMask = 255.255.255.0 4 = Name of Interface...
  • Page 14 C=Parity: ODD = O , EVEN = E, N = None Example: D=Stopbits: Number of stopbits, 1,2 Example: E=FlowControl Switch the flow control on or off. H = Hardware, S = Software, N = None Example: COMPOINT-LIB manual, Version 1.0...
  • Page 15 Configuration with TELNET Configuration of the COMPOINT-LIB Continue point 2, the “COM1 Menu“ =========================== COM1 MENU ======================================= 1 = Destination IP1 = 0.0.0.0 2 = Destination PORT1 3 = Destination DNS1 4 = Destination IP2 = 0.0.0.0 5 = Destination PORT2...
  • Page 16 Configuration with TELNET Configuration of the COMPOINT-LIB Point 3, the “Info Menu“ =========================== INFO MENU ======================================= Software Low = 2FF4 Date = 13.1.2005 Software High = 2FF4 Date = 13.1.2005 Lan Driver / State = 3 / 0000 EEP Driver...
  • Page 17 Configuration with TELNET Configuration of the COMPOINT-LIB Point 6, the “ISDN - Bridge Menu“ =========================== ISDN-BRIDGE MENU ================================ 1 = Protocol 1 = **TEI=1;**DHTC=1;B21 2 = Protocol 2 = **TEI=1;**DHTC=2;B21 3 = Protocol 3 = **TEI=1;**DHTC=5;B21 4 = Protocol 4 = **HTC=1;B20...
  • Page 18 Configuration with TELNET Configuration of the COMPOINT-LIB Point O, “OUTGOING CALLS“ =========================== OUTGOING CALLS ================================== SELECTION RANGE: A-J 1 = Source Port = 6000 2 = WaitForConnect 3 = Send with Length CONNECT TO 4 = Protocol = 1 (ATE0W1S0=0**TEI=1;**DHTC=1;B21)
  • Page 19 Configuration with TELNET Configuration of the COMPOINT-LIB Point O, “OUTGOING CALLS“ =========================== OUTGOING CALLS ================================== SELECTION RANGE: A-J 1 = Source Port = 6000 2 = WaitForConnect 3 = Send with Length CONNECT TO 4 = Protocol = 1 (ATE0W1S0=0**TEI=1;**DHTC=1;B21)
  • Page 20 Configuration with TELNET Configuration of the COMPOINT-LIB Point I, “INCOMING CALLS“ =========================== INCOMING CALLS ================================== SELECTION RANGE: A-T 1 = Protocol: = 4 (ATE0W1S0=0**MSNI=33445566775;**HTC=1;B20) 2 = Own MSN = 33445566775 3 = Incoming Userdata 4 = Destionation IP = 0.0.0.0...
  • Page 21 Configuration with TELNET Configuration of the COMPOINT-LIB Point S,“ STATUS“ =========================== STATUS ========================================== ComState Ready = OPEN Error Drop Error Reset Error Incoming Req. Last IncomingNr= Last IncomingUD= Channel 1 = Incoming Wait Channel 2 = Close Channel 3 = Close...
  • Page 22 Configuration with Browser Configuration of the COMPOINT-LIB The Compoint-LIB is switched on. The Compoint-LIB is equiped with a network interface The TCP/IP address of the Compoint-LIB is available The Internet Browser (e.g. Internet Explorer, Netscape Navigator) is available Start the Internet Browser and enter the IP address of the Compoint – LIB in the format e.g.
  • Page 23 Configuration with Browser Configuration of the COMPOINT-LIB Point 2, the “Ethernet Menu“ Mac – Address : Here the current MAC address of the interface is displayed. We disadvice to change this value otherwise it would to problems with other network adapters.
  • Page 24 Configuration with Browser Configuration of the COMPOINT-LIB Point 4, the “Info Menu“ Under the menu item “Info“ you will find all information concerning the interface. In this menu you can read out the current Firmware version and it is displayed if anybody is connected to the interface.
  • Page 25 Configuration with Browser Configuration of the COMPOINT-LIB Point 5, the “Admin Menu“ Download: Allow software update: Yes/no/temporarily (after having performed the update set option to Password: Freely selectable password Interface Port: Free port selectable which will be used on the Host later on.
  • Page 26 Configuration with Browser Configuration of the COMPOINT-LIB Point 6, the “Dump Menu“ In the Dump menu you can display the data which the interface has received. As the values are not always exact this menu moreover serves to analyse errors.

  • Page 27: Xt Admin

    IP address is available or not 2. By clicking on the cross the interfaces are being extended. If there is no cross you cannot reach the interface 3. By actuating the button “Refresh“ the list will be updated COMPOINT-LIB manual, Version 1.0...

  • Page 28: Description Of The Xt Admin, Scan

    XT Admin Description of the XT Admin, SCAN If you do not want to display a COMPOINT-LIB which is located outside of your subnet or which is installed behind the gateway, it will not be displayed automatically. But you have the option to scan a certain IP range in order to display this interface as well.

  • Page 29: Description Of The Xt-Admin, Set Ip

    3. Enter the new IP address to this field. 4. In order to set this IP address push the button “Set IP“. After a short while the interface will be displayed in the index on the left with your new IP address. COMPOINT-LIB manual, Version 1.0...

  • Page 30: Description Of The Xt-Admin, Telnet

    IP address will be transfered to the Telnet address field. 3. Press on the button “Connect“ in order to establish a connection. To terminate the connection press “Disconnect“. You will find further informations about the configuration by Telnet in the chapter Telnet. COMPOINT-LIB manual, Version 1.0...

  • Page 31: Description Of The Xt Admin, Update

    XT Admin Description of the XT Admin, Update With the update function you can update the Firmware of your COMPOINT-LIB over the network. 1. By clicking on “Update“ the following window opens up 2. Select you type of interface on this menu.

  • Page 32: Example For Application

    Additionally, the provider can reach all 3 terminals for service purposes via Remote. Solution of subsidiary Operator IP: 192.168.0.100 Mask 255.255.255.0 IP: 192.168.0.1 IP: 192.168.0.2 IP: 192.168.0.3 NETWORK/LAN CASH DESK 1 CASH DESK 2 CASH DESK n COMPOINT-LIB manual, Version 1.0...

  • Page 33: Configuration Of The Compoint - Lib

    = T1 4 = Destionation IP = 192.168.0.1 5 = Destionation Port = 1002 X = Clear Statistic ----------------------------------------------------------------------------- Request Connect Lan Error NoAnswer Time LastCode Incoming ----------------------------------------------------------------------------- ----------------------------------------------------------------------------- [Q = QUIT] Please enter your choice: COMPOINT-LIB manual, Version 1.0...

  • Page 34: Example For Application

    Userdata and the Destination IP. If there is only one incoming on the B channel (X.25 = B20) via Remote and e.g. T3 is transferred as user data, a transparent TCP/IP connection to terminal 3 will be established. COMPOINT-LIB manual, Version 1.0...

  • Page 35: Power Supply And Warranty

    The information in this manual may be changed without prior notice. In spite of thorough elaboration this manual may contain mistakes or may be incomplete. Therefore, we do not take any liability for errors or loss of data resulting hereof. COMPOINT-LIB manual, Version 1.0...
