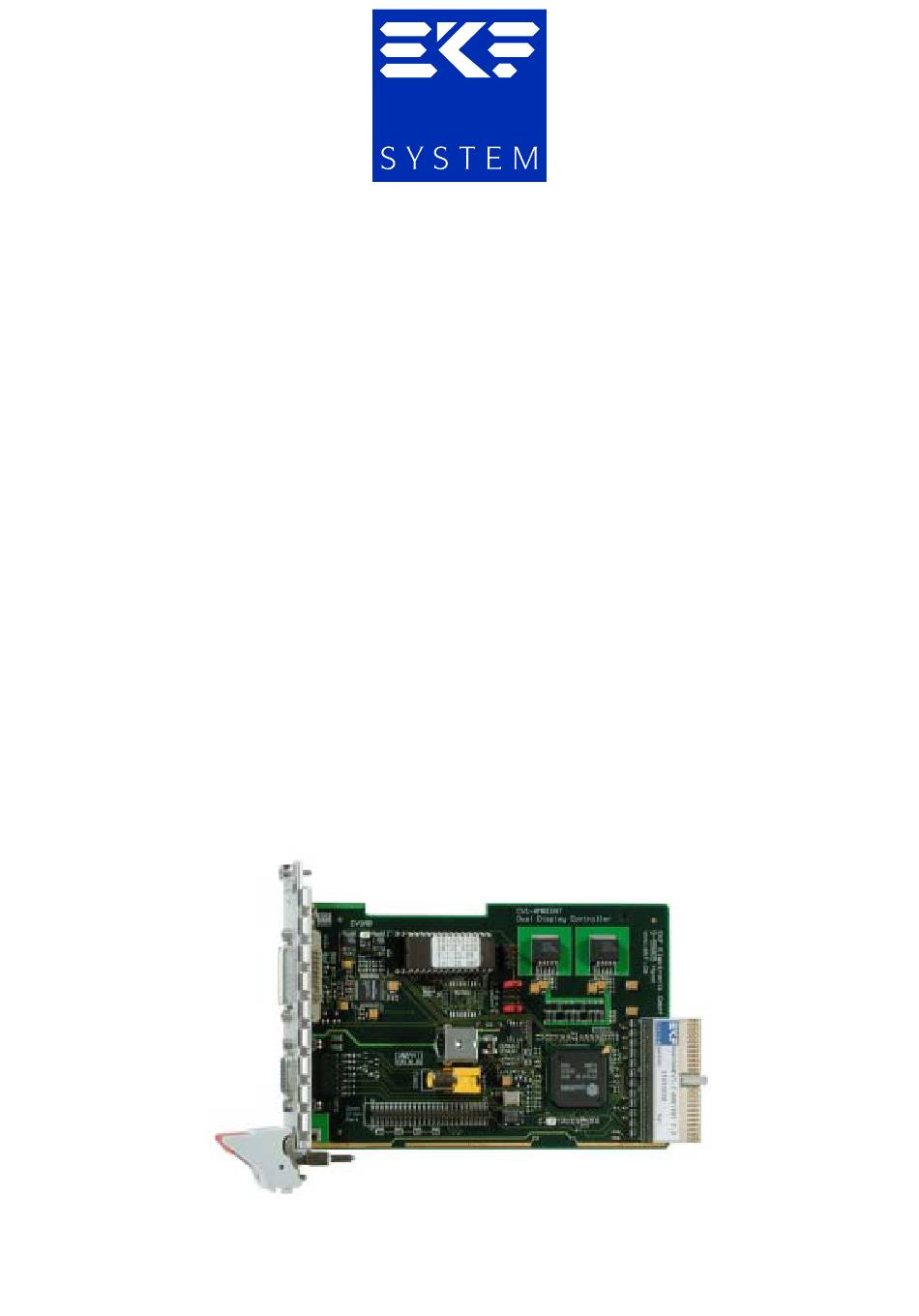

- Page 1 Technical Information CV1-AMBIENT • Dual-Screen CPCI Graphics Adapter Document No. 2513 • Edition 1 2001-11...
-
Page 2: Table Of Contents
CV1-AMBIENT Features ........ -
Page 3: About This Manual
Technical Information CV1-AMBIENT • CPCI Graphics Adapter About this Manual This manual is a short form description of the technical aspects of the CV1-AMBIENT, required for installation and system integration. It is intended for the very advanced user only. Edition History Ed. -
Page 4: Cv1-Ambient Features
Technical Information CV1-AMBIENT • CPCI Graphics Adapter CV1-AMBIENT Features Short Description The CV1-AMBIENT is a universal, dual-screen When operated under Windows™, the CV1- graphics adapter within AMBIENT allows for simultaneous use of two ® CompactPCI screens. Multi-Display means applications systems. Housed on a 3U... - Page 5 XP. to all popular video monitors. Displays provided with a Digital Visual Interface The CV1-AMBIENT is a 3U Eurocard. For use (typically flat panel TFT style screens) can be within 6U CPCI card cages, EKF offers the connected to the DVI receptacle (Primary CR9-ADAPT, a mechanical kit for the front Display).
-
Page 6: Feature Summary
Differential Signaling), Single Link. Though DVI-I preserves some pins for analog signals, these pins are NC on the CV1-AMBIENT, resulting in a functionality identical to DVI-D (D = digital). The DVI-I (I = integrated analog and digital) receptacle however allows use of both, DVI-I and DVI-D cables and accessories at your convenience. -
Page 7: Block Diagram
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Block Diagram - 7 - EKF Elektronik GmbH * Philipp-Reis-Str. 4 * D-59065 HAMM (Germany) Tel. +49 (0)2381/6890-0 * Fax. +49 (0)2381/6890-90 * E-Mail info@ekf.de * Internet http://www.ekf.de... -
Page 8: Component Assembly
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Component Assembly - 8 - EKF Elektronik GmbH * Philipp-Reis-Str. 4 * D-59065 HAMM (Germany) Tel. +49 (0)2381/6890-0 * Fax. +49 (0)2381/6890-90 * E-Mail info@ekf.de * Internet http://www.ekf.de... -
Page 9: Installing And Replacing Components
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Installing and Replacing Components Before You Begin Warnings The procedures in this chapter assume familiarity with the general terminology associated with industrial electronics and with safety practices and regulatory compliance required for using and... -
Page 10: Installing The Board
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Installing the Board Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage. -
Page 11: Removing The Board
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Removing the Board Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage. -
Page 12: Emc Recommendations
Technical Information CV1-AMBIENT • CPCI Graphics Adapter EMC Recommendations In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules: The chassis or rack including other boards in use must comply entirely with CE... -
Page 13: Technical Reference - Jumper Fields And Connectors
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Technical Reference - Jumper Fields and Connectors Caution Some of the connectors provide operating voltage (e.g. 5V and 12V) to devices inside the system chassis, such as fans and internal peripherals. Not all of these connectors are overcurrent protected. -
Page 14: Dispconfb
Technical Information CV1-AMBIENT • CPCI Graphics Adapter DispConfB The jumper field DispConfB is provided to match closely the properties of an attached TFT- display. Please note: DispConfB settings are entirely ignored if any jumper is set to DispConfA. The factory default setting is described below (positions marked red = jumper set, all others removed). -
Page 15: Jumper Enai
Technical Information CV1-AMBIENT • CPCI Graphics Adapter The Jumpers 11:10 of DispConfB define the screen resolution delivered by the CV1-AMBIENT. Do not confuse the settings described in the jumper table below with the screen resolution selected from your operating system. -
Page 16: Primary Display Port - Dvi-I Receptacle
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Primary Display Port - DVI-I Receptacle Though DVI-I preserves some pins for analog signals, these pins are NC on the CV1-AMBIENT, resulting in a functionality identical to DVI-D (D = digital). The DVI-I (I = integrated analog and digital) receptacle however allows use of both, DVI-I and DVI-D cables and accessories at your convenience. -
Page 17: Secondary Display Port - D-Sub 15-Pos. Connector
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Secondary Display Port - D-SUB 15-Pos. Connector green blue +5V (PolySwitch 1.5A) DDC Power DDC Data Hsync Vsync DDC Clock - 17 - EKF Elektronik GmbH * Philipp-Reis-Str. 4 * D-59065 HAMM (Germany) -
Page 18: Video Outputs
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Video Outputs Due to lack of free space in the cards front panel, the video connectors are mounted in the middle of the board, thus suitable for internal wiring or open experimental card frames. -
Page 19: Zoom Video Port
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Zoom Video Port ZV Y0 ZV Y1 ZV Y2 ZV Y3 ZV Y4 ZV Y5 ZV Y6 ZV Y7 ZV UV0 ZV UV1 ZV UV2 ZV UV3 ZV UV4 ZV UV5 ZV UV6... -
Page 20: Bios Socket
Technical Information CV1-AMBIENT • CPCI Graphics Adapter BIOS Socket There are several packaging options for the integrated video BIOS. If contained in a Flash EEPROM, the BIOS is soldered directly to the board and cannot removed and changed without appropriate desoldering equipment. Provided as an alternate footprint, a DIP-32 socket allows for inserting of an EPROM (either 28 or 32-pin Jedec style, e.g. -
Page 21: Compactpci Connector J1
Technical Information CV1-AMBIENT • CPCI Graphics Adapter CompactPCI Connector J1 Pin No. REQ64# ENUM# 3.3V VI/O ACK64# 3.3V 3.3V 3.3V M66EN C/BE0# (GND) AD12 VI/O AD11 AD10 3.3V AD15 AD14 AD13 SERR# 3.3V C/BE1# 3.3V IPMB SCL IPMB SDA PERR#... -
Page 22: Board Identification
Technical Information CV1-AMBIENT • CPCI Graphics Adapter Board Identification The board designation is provided on a label, attached to the CPCI connector J1, including the boards serial number. Please do not remove this label, it is required for warranty and repair.
